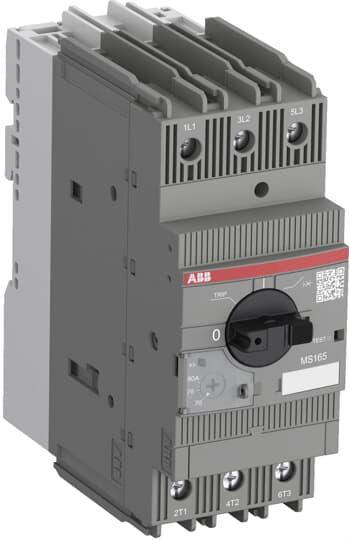

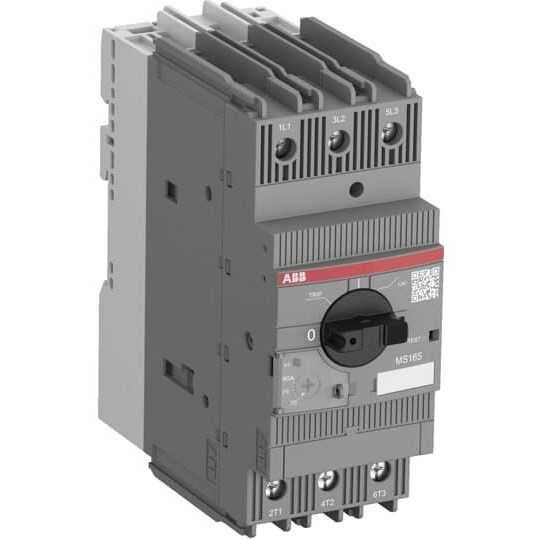

The Manual Motor Starter is a robust and reliable solution designed for industrial and commercial applications. With a rated voltage of 690 VAC and a rated current of 25 A, this device is engineered to handle demanding electrical environments efficiently. It offers an impressive breaking capacity of 100 kA, ensuring safety and performance even in high-demand scenarios.
This starter features a rotary handle actuator type, providing ease of operation with its intuitive design. The control element, a turn button, allows for straightforward manual intervention when necessary. Built to withstand tough conditions, it operates effectively within temperatures ranging from -25 to 60 degrees Celsius.
Safety and compliance are paramount in industrial settings. This motor starter meets rigorous standards including CSA 22.2 No. 14, IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, and UL 60947-4-1 approvals. Its IP20 degree of protection safeguards against solid objects larger than 12 mm while maintaining operational integrity.
The product's dimensions—55 mm in width, 142.65 mm in height, and depth at 122.1 mm—ensure it fits seamlessly into various installation setups without compromising space efficiency. The terminal type utilizes screws with a tightening torque of 4 N-m for secure connections.
For wiring flexibility, the main circuit connecting capacity accommodates flexible wires with ferrules (1/2 x 1-35 sq-mm), insulated ferrules (1/2 x 1-35 sq-mm), rigid wires (1/2 x 1-4 sq-mm), solid wires (1/2 x 1-4 sq-mm), and stranded wires (1/2 x 1-50 sq-mm). This versatility supports diverse installation requirements across different projects.
Rated insulation voltage stands at an impressive 1000 V while the rated power reaches up to an efficient level of up to11 kW making this starter suitable for various motor applications across industries such as manufacturing or processing plants where reliability is key.
Power loss is minimized at just10 .8 W maximizing energy efficiency over prolonged use periods contributing positively towards cost-saving measures on electricity consumption bills long term wise
Designed with user convenience in mind wire stripping length required stands at16mm facilitating easy installation processes reducing downtime during maintenance tasks performed by technicians onsite
Storage temperature range extends from -50to80deg C allowing safe storage under diverse environmental conditions without risk damage deterioration components inside unit itself thereby extending overall lifespan product significantly
In summary the Manual Motor Starter is designed not only meet but exceed expectations providing both functionality durability needed handle complex electrical systems confidently securely day after day
