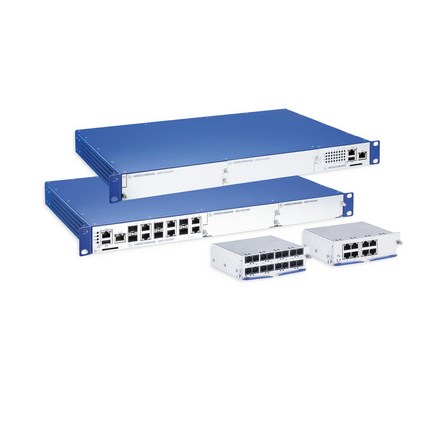

HIRSCHMANN GRS1042-6T6Z S H H 0 0 V9 H H S E 2A99XX.X. MANAGED RACKMOUNT SWITCH 942 135-999-023

Product Code: 942 135-999-023

Explore the Hirschmann GRS1042, a robust modular managed rackmount switch designed for complex network solutions. This switch offers versatility with up to 28 ports, starting with a basic unit that includes 12 fixed ports: four Gigabit Ethernet/2.5 Gigabit Ethernet SFP slots, two Fast Ethernet/Gigabit Ethernet SFP slots, and six Fast Ethernet/Gigabit Ethernet TX ports. Expandability is at the forefront with two media module slots allowing an additional eight Fast Ethernet/Gigabit Ethernet ports per module. Engineered to operate reliably in temperatures ranging from 0°C to +60°C and equipped with dual power supply inputs supporting 60 to 250 V DC and 110 to 240 V AC, it ensures uninterrupted service. The GRS1042 comes with HiOS Layer 2 Advanced software features and meets rigorous industry standards including CE, FCC, EN 61131, EN 60950, IEC 61850-3, and IEEE 1613 for substation environments. Ideal for engineers seeking a high-performance networking solution that scales with operational demands.

Technical Specifications

Brand HIRSCHMANN
Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 1GB Ports 18
No. of 2.5GB Ports 4
No. of Ethernet Ports 6
No. of Fiber Ports 22
Nominal Power (W) 32
Rated Maximum Operational Voltage AC (V) 240
Rated Maximum Operational Voltage DC (V) 250
Rated Minimum Operational Voltage AC (V) 110
Rated Minimum Operational Voltage DC (V) 60
Degree of Protection IP30
Mounting Type Rack
Series GRS1042
Standards and Approvals IEC 61850-3
