Product Code: 942 135-999-017

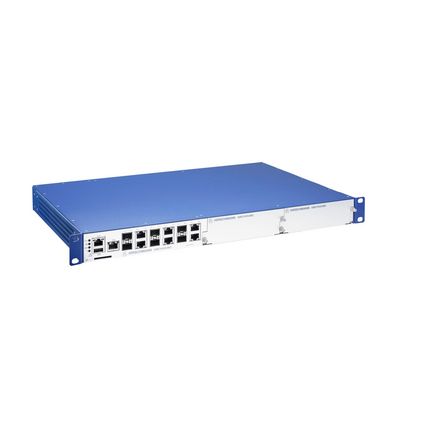

Explore the Hirschmann GRS1042, a robust modular managed rackmount switch designed for complex network solutions. This switch offers flexibility with up to 28 ports, starting with 12 fixed ports that include 4 GE/2.5 GE and 2 FE/GE SFP slots, plus 6 FE/GE TX ports. Expandability is at your fingertips with two media module slots supporting an additional 8 FE/GE ports each. Engineered to operate reliably in temperatures ranging from 0°C to +60°C and equipped with dual power supply inputs (60-250 V DC and 110-240 V AC), it ensures continuous performance in varied environments. The GRS1042 comes with HiOS Layer 2 Advanced software features and boasts certifications such as CE, FCC, EN 61131, and EN 60950, making it a compliant solution for industrial networking demands.

Brand	HIRSCHMANN
Maximum Temperature (°C)	60
Minimum Temperature (°C)	0
No. of 1GB Ports	18
No. of 2.5GB Ports	4
No. of Ethernet Ports	6
No. of Fiber Ports	22
Nominal Power (W)	32
Rated Maximum Operational Voltage AC (V)	240
Rated Maximum Operational Voltage DC (V)	250
Rated Minimum Operational Voltage AC (V)	110
Rated Minimum Operational Voltage DC (V)	60
Degree of Protection	IP30
Dimensions (mm)	44H x 444W x 354D
Mounting Type	Rack
No. of Ports	4 x GE/2.5GE SFP, 2 x FE/GE SFP, 6 x FE/GE TX Expandable 2 Media Module Slots, 8 x FE/GE Per Module
Operational Temperature Range (°C)	0 to +60
Power Consumption (W)	32 With One Power Supply
Rated Operational Voltage AC (V)	2 x 110 - 240
Rated Operational Voltage DC (V)	2 x 60 - 250
Series	GRS1042
Standards and Approvals	CE, FCC, EN61131, EN60950
