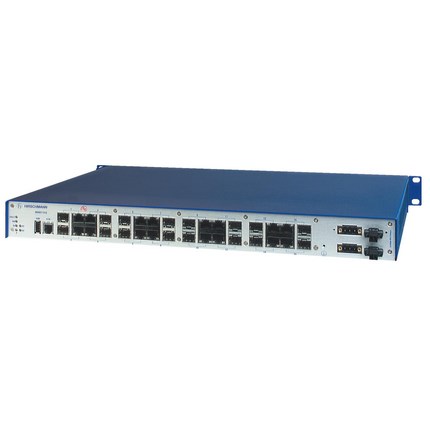

Hirschmann 943 940-999-018 Rack Mount Managed Ethernet Switch 19 in Control Cabinet Mount 230VAC

Product Code: 943 940-999-018

  • 230 VAC rated for reliable performance
  • Fits 19" control cabinet setups
  • IP30 protection for indoor use
  • Operates up to 85°C efficiently
  • Complies with IEC 61850-3 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Ethernet Ports 18
No. of 100Mb Ports 22
No. of Fiber Ports 4
Maximum Temperature (°C) 85
Minimum Temperature (°C) -40
Rated Minimum Operational Voltage AC (V) 110
Rated Maximum Operational Voltage AC (V) 230
Rated Minimum Operational Voltage DC (V) 110
Rated Maximum Operational Voltage DC (V) 250
Product Type Rack Mount Managed Ethernet Switch
Brand HIRSCHMANN
Series MAR1030
Degree of Protection IP30
Mounting Type 19 in Control Cabinet
Number of 100Mb Ports 22
Number of Ethernet Ports 18
Number of Fibre Ports 4
Operational Temperature 85 deg C
Rated Voltage 230 VAC
Standards and Approvals IEC 61850-3

Description

The Hirschmann MAR1030 is a robust, managed rackmount switch designed for challenging environments. This Layer 2 Professional switch features 18 RJ45 twisted pair ports supporting 10/100 Mbit/s and 4 SFP slots for 100 Mbit/s fiber connections. Engineered to withstand extreme temperatures ranging from -40°C to +85°C, it comes with a conformal coating for additional protection. The power supply accommodates both DC (110/250V) and AC (110/230V) inputs via a plug-in connector. With certifications including cUL508, cUL1604 Class 1 Div2, Germanischer Lloyd, IEC 61850-3, IEEE 1613, and EN 50121, the MAR1030 is an ideal solution for industrial network solutions requiring durability and reliability.
