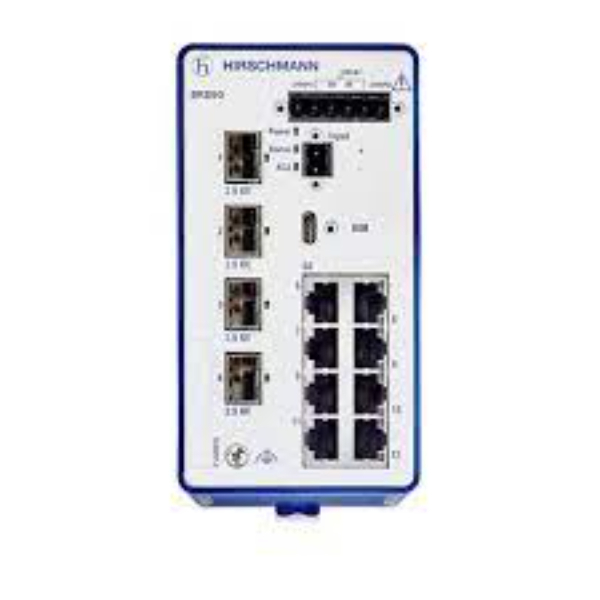

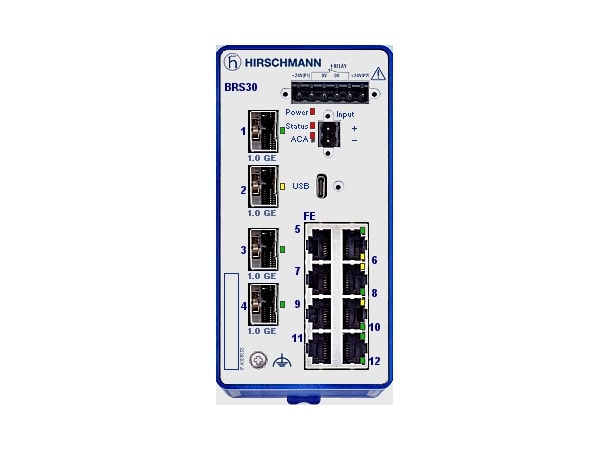

Hirschmann 942 170-999-016 Managed Fast Ethernet Switch 8 x 10/100 Base-TX RJ45 4 x 100/1000 SFP -Port (2) 12-24VDC

Product Code: 942 170-999-016

  • Managed switch with 9W power rating
  • Dual voltage: 12-24 VDC
  • Compact size: 73x138x115 mm
  • IP30 protection for indoor use
  • Supports CE, FCC standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Managed Fast Ethernet Switch
Brand HIRSCHMANN
Degree of Protection IP30
Depth 115 mm
Height 138 mm
Number of Ethernet Ports 12
Number of Ports 8 x 10/100 Base-TX RJ-45, 4 x 100/1000 SFP
Operational Temperature 0 to 60 deg C
Rated Power 9 W
Rated Voltage (2) 12-24 VDC
Standards and Approvals CE, FCC, EN61131, EN62368-1
Switch Type Switch - Managed
Width 73 mm

Description

<p>This managed network switch is a robust solution designed for industrial and commercial applications where reliability and efficiency are paramount. With a rated power of 9 W, it operates efficiently within a voltage range of 12-24 VDC, ensuring adaptability in various settings. Its compact dimensions—73 mm in width, 138 mm in height, and 115 mm in depth—make it suitable for installations where space is at a premium.</p><p>The switch boasts an IP30 degree of protection, signifying its resistance to dust ingress and making it apt for controlled environments. It performs optimally within an operational temperature range of 0 to 60 degrees Celsius, catering to diverse climate conditions without compromising performance.</p><p>Compliant with CE and FCC standards as well as EN61131 and EN62368-1 approvals, this product adheres to stringent safety and quality benchmarks. This makes it not only reliable but also ensures compatibility across different regulatory landscapes.</p><p>Equipped with eight 10/100 Base-TX RJ-45 ports alongside four versatile 100/1000 SFP ports, the switch offers flexible connectivity options essential for modern networking demands. The combination of these port types allows users to integrate both copper Ethernet cables and fiber optic connections seamlessly, providing scalability for growing network infrastructures.</p><p>In summary, this managed switch delivers dependable performance tailored to meet the rigorous demands of industrial environments while maintaining compliance with international standards.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
