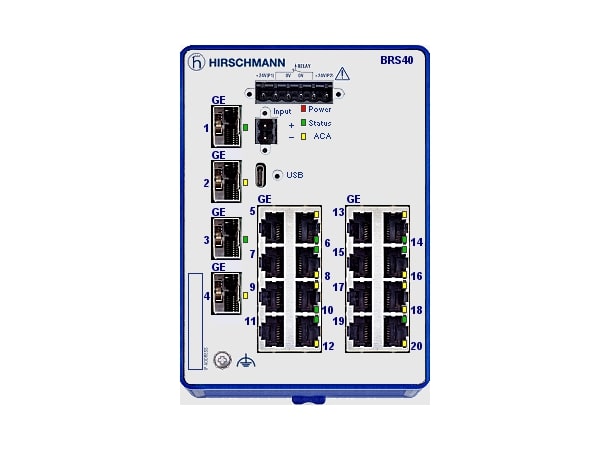

Hirschmann 942 170-999-036 Managed Fast Ethernet Switch 16x10/100/1000 Base-TX RJ45 4x100/1000 Mbps Fibre 12-24VDC

Product Code: 942 170-999-036

  • Managed switch with 16 RJ-45 ports
  • Supports 4 fibre connections
  • DIN rail mounting for easy installation
  • Operates in 0 to 60°C temperature range
  • Complies with CE, FCC standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Managed Fast Ethernet Switch
Brand HIRSCHMANN
Degree of Protection IP30
Depth 115 mm
Height 138 mm
Mounting Type DIN Rail
Number of Ethernet Ports 20
Number of Ports 16 x 10/100/1000 Base-TX RJ-45, 4 x 100/1000 Mbps Fibre
Operational Temperature 0 to 60 deg C
Rated Power 17 W
Rated Voltage (2) 12-24 VDC
Standards and Approvals CE, FCC, EN61131, EN62368-1
Switch Type Switch - Managed
Width 109 mm

Description

<p>When selecting a managed switch for industrial or commercial applications, the right balance of performance, durability, and compliance is crucial. This product offers a robust solution with its 17 W rated power and dual voltage capability of 12-24 VDC, ensuring flexibility in various power environments.</p><p>Designed for easy integration into existing systems, this unit features DIN Rail mounting. Its compact dimensions—109 mm in width, 138 mm in height, and 115 mm in depth—make it suitable for space-constrained installations without sacrificing functionality.</p><p>The switch&amp;#39;s IP30 degree of protection ensures that it can withstand dust ingress to a certain extent while operating efficiently within an operational temperature range of 0 to 60 degrees Celsius. This makes it ideal for controlled indoor environments where consistent performance is required.</p><p>Connectivity is at the forefront with this model, providing a total of 20 ports: sixteen 10/100/1000 Base-TX RJ-45 ports cater to high-speed Ethernet connections necessary for data-intensive tasks. Additionally, four versatile fibre ports supporting both 100 Mbps and Gigabit speeds offer extended reach beyond typical copper limitations—a boon for larger facilities requiring long-distance communication links.</p><p>Compliance with key standards such as CE and FCC underscores its adherence to essential safety and electromagnetic compatibility requirements. Furthermore, the inclusion of EN61131 and EN62368-1 certifications highlights its suitability for industrial automation applications as well as audio/video equipment safety.</p><p>In summary, this managed switch stands out with its comprehensive feature set tailored to meet demanding network needs while maintaining regulatory compliance. Its blend of port versatility, reliable power options, and rugged design make it an excellent choice for professionals seeking dependable network infrastructure solutions in diverse settings.</p>
