Product Code: MS116-10

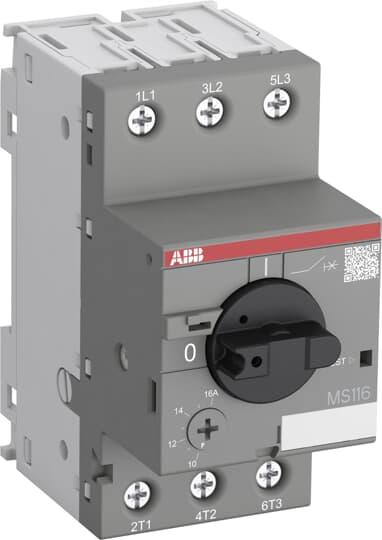

The MS116-10 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 10.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50 kA at 400 VAC and trip class 10A.

Brand	ABB
Breaking Capacity 400V AC - Icu (kA)	75
Degree of Protection	IP20
Design of Control Element	Turn Button
Dimensions (mm)	45W x 90H x 85.6D
Main Circuit Electrical Connection	Screw Connection
No. of Poles	3
Overload Release Current Setting (A)	6.3
Phase Failure Sensitive	Yes
Power Loss (W)	7.2
Rated Instantaneous Short-Circuit Current - Ii (A)	150
Rated Insulation Voltage (V)	690
Rated Operational Current (A)	10
Rated Operational Power AC-3 400V (kW)	4
Rated Operational Voltage (V)	690
Rated Uninterrupted Current - Iu (A)	10
Switching Type	Thermomagnetic
Terminal Type	Screw Terminals
Thermal Current Setting Range (A)	6.30 - 10.0
Thermal Overload Protection	Yes
