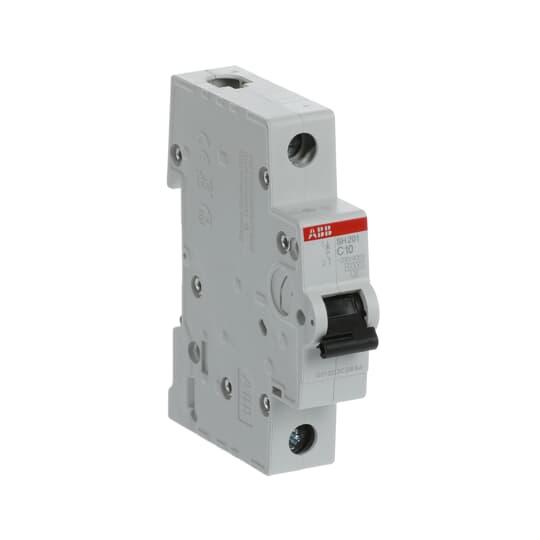

ABB SH201C10 MCB 6kA 1P 10A 230VAC C CURVE DOMESTIC

Product Code: SH201C10

The ABB Miniature Circuit Breaker is a 1 pole breaker with a current rating of 10A and voltage rating of 230VAC. It provides C curve protection against short circuit and thermal overload. This breaker is specifically designed for loadcentre applications and cannot be chassis mounted. It belongs to the domestic range of ABB products.

Technical Specifications

Housing Material Insulation Group II, RAL 7035
Brand ABB
Series SH200
Cable Cross Section - Flexible (mm²) Top/Bottom - 16/16
Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 25/25
Mounting Type DIN Rail
AC Voltage (V) 230/400
Application Domestic
Current Rating (A) 10
Curve Type C Curve
Family SH200
Icn-Rated Short Circuit Capacity (kA) 6
Impulse Withstand Voltage (kV/1.2µS) 4
Maximum Operational Voltage AC (V) 253
Minimum Operational Voltage AC (V) 12
No. of Poles 1P
Power Loss (W) 2.1/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 6
Rated Current (A) 10
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 440
Rated Operational Voltage AC (V) 230/400
Rated Short-Circuit Capacity - Icn (kA) 6
Rated Voltage AC (V) 230
Dimensions (mm) 85H x 69D x 17.5W
Trip Curve C Curve
Pole Width (mm) 17.5
Degree of Protection IP20
Pollution Degree 2
Standards and Approvals AS/NZS 60898-1
Poles 1P
Inc-Rated Conditional Short Circuit Capacity (kA) 6
