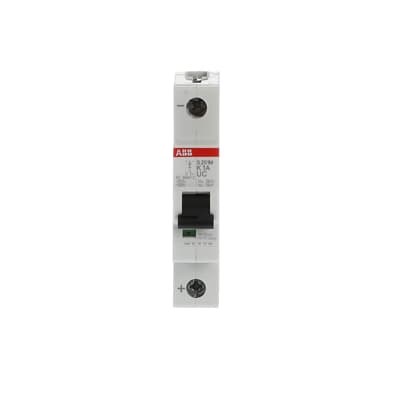

When selecting a Miniature Circuit Breaker (MCB) for industrial applications, it's crucial to ensure that the product meets your technical requirements with precision. The S200MUC collection offers an MCB designed to deliver robust performance and reliability in demanding settings.
This MCB is rated for a current of 1 A, making it suitable for circuits where precise control over current flow is necessary. It operates efficiently at a voltage of 230/240 VAC, accommodating standard Australian electrical systems seamlessly. With a power loss of just 1.33 W, this component ensures energy efficiency while maintaining optimal functionality.
The device features a single pole configuration and boasts an impressive breaking capacity of 10 kA at 230 VAC. This high breaking capacity provides confidence that the MCB can handle unexpected surges or faults without compromising safety or operational integrity.
Equipped with screw clamp terminals, the MCB ensures secure connections that are both reliable and easy to manage. The recommended tightening torque is set at 2.8 N-m, ensuring optimal contact pressure without risking damage to the terminal.
In terms of physical dimensions, this MCB measures 17.5 mm in width, 85 mm in height, and has a depth of 69 mm—compact enough to fit into most panel setups without sacrificing space efficiency.
Conformance with international standards such as CSA 22.2 No. 235, IEC/EN 60947-2, and UL 1077 underscores its quality and suitability for global use in industrial environments. These certifications assure users of its compliance with rigorous safety and performance benchmarks.
Operating within a frequency range of 50/60 Hz adds versatility across different regions' power supplies while maintaining stable performance levels. Its impulse voltage rating stands at an impressive 4 kV—indicative of its ability to withstand transient overvoltages effectively.
Designed with short circuit capacity matching its breaking capability at 10 kA further enhances its robustness against electrical faults—a critical feature for safeguarding equipment and minimizing downtime during unforeseen incidents.
The K curve type characteristic makes it ideal for protecting circuits with inductive loads where initial surge currents might be present due to motors or transformers starting up—this helps prevent nuisance tripping while providing adequate protection under normal operating conditions.
Particularly tailored for industrial applications within its housing colored RAL7035 grey which blends well aesthetically into various installations—this MCB not only performs well but also complements existing infrastructure visually without standing out unnecessarily unless needed functionally speaking!
