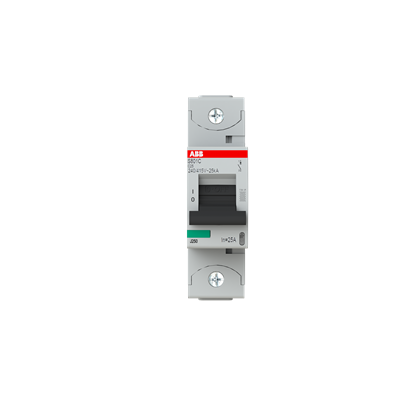

ABB S801CC25 HIGH PERF. MCB 25kA 1P 25A 240VAC C CURVE

Product Code: S801CC25

ABB's high performance Miniature Circuit Breaker offers reliable protection against short circuit and thermal overload. With a 25kA rating at 240VAC and 10kA rating at 125VDC, this 1 Pole breaker is designed for commercial and industrial applications. It has a C curve and a pole width of 27mm. Trust ABB for top-notch circuit protection in your electrical systems.

Technical Specifications

Housing Material Insulation group I, RAL 7035
Brand ABB
Series S800C
Cable Cross Section - Flexible (mm²) Top/Bottom - 70/70
Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 50/50
Mounting Type DIN Rail
AC Voltage (V) 230/400
Application Commercial and Industrial
Breaking Capacity 230V AC - Icu (kA) 25
Current Rating (A) 25
Curve Type C Curve
DC Voltage (V) 125
Family S800C
Icn-Rated Short Circuit Capacity (kA) 15
Impulse Withstand Voltage (kV/1.2µS) 8
Maximum Operational Voltage AC (V) 254
Maximum Operational Voltage DC (V) 125
Minimum Operational Voltage AC (V) 12
No. of Poles 1P
Power Loss (W) 4.3/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 25
Rated Current (A) 25
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 500
Rated Operational Voltage AC (V) 230/400
Rated Operational Voltage DC (V) 125
Rated Short-Circuit Capacity - Icn (kA) 15
Rated Voltage AC (V) 230
Dimensions (mm) 95H x 82.5D x 27W
Trip Curve C Curve
Pole Width (mm) 27
Degree of Protection IP20
Pollution Degree 3
Standards and Approvals AS/NZS 60898-1,AS/NZS 60947-2, UL 1077
Poles 1P
Breaking Capacity (kA) 25 @230 V AC
Inc-Rated Conditional Short Circuit Capacity (kA) 25
