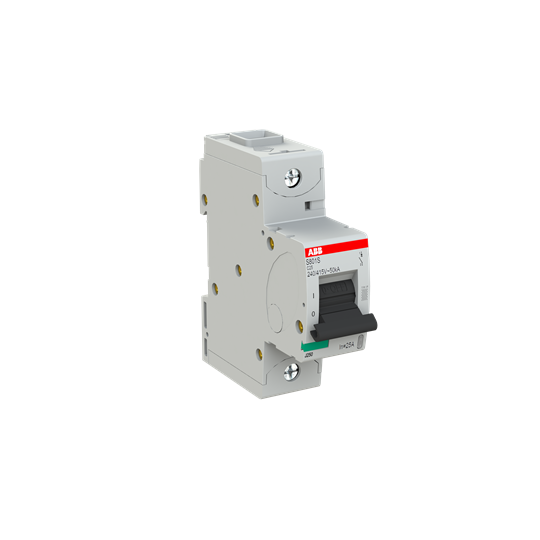

ABB S801SC25 High Performance Miniature Circuit Breaker 50kA at 230VAC 1-P 25A 230/400VAC C-Curve

Product Code: S801SC25

  • Rated current of 25 A for efficient protection
  • High breaking capacity of 50 kA at 230 VAC
  • Compatible with DIN rail mounting systems
  • Ensures safety with IP20 protection rating
  • Suitable for commercial and industrial use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 50/50
Cable Cross Section - Flexible (mm²) Top/Bottom - 70/70
Dimensions (mm) 95H x 82.5D x 27W
No. of Poles 1P
Pole Width (mm) 27
Power Loss (W) 4.3/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 50
Pollution Degree 3
Rated Current (A) 25
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 690
Rated Impulse Withstand Voltage (kV) 8
Rated Operational Voltage DC (V) 125
Rated Short-Circuit Capacity - Icn (kA) 25
Rated Operational Voltage AC (V) 230/400
Maximum Operational Voltage DC (V) 125
Maximum Operational Voltage AC (V) 690
Minimum Operational Voltage AC (V) 12
Breaking Capacity 230V AC - Icu (kA) 50
Rated Voltage AC (V) 230
Family S800S
AC Voltage (V) 230/400
DC Voltage (V) 125
Icn-Rated Short Circuit Capacity (kA) 25
Inc-Rated Conditional Short Circuit Capacity (kA) 50
Impulse Withstand Voltage (kV/1.2µS) 8
Poles 1P
Breaking Capacity (kA) 50 @230 V AC
Current Rating (A) 25
Product Type High Performance Circuit breaker
Brand ABB
Series S800S
Application Commercial and Industrial
Breaking Capacity 50 kA at 230 VAC
Cable Cross Section 50 sq-mm Top, 50 sq-mm Bottom
Collection S800S
Curve Type C
Degree of Pollution IP3
Degree of Protection IP20
Depth 82.5 mm
Electrical Durability 10000 Cycles
Height 95 mm
Housing Colour RAL 7035 Grey
Housing Material Insulation group I, RAL 7035
Impulse Voltage 8 kV
Mounting Type DIN Rail
Number of Poles 1
Pole Width 27 mm
Power Loss 4.3 W
Rated Current 25 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 690 V
Rated Short Circuit Current 50 kA
Rated Voltage 230/400 VAC
Short Circuit Capacity 25 kA
Standards and Approvals AS/NZS 60898-1, AS/NZS 60947-2, UL 1077
Terminal Type Screw Clamp
Tightening Torque 3.5 N-m
Trip Curve C Curve
Width 27 mm

Description

The ABB High Performance Miniature Circuit Breaker is designed for commercial and industrial use. It offers 1 pole with a 25A capacity and provides C curve protection against short circuit and thermal overload. With a pole width of 27mm, it ensures reliable performance. This circuit breaker has a high breaking capacity of 50kA at 240VAC and 30kA at 125VDC, making it suitable for demanding applications. Trust ABB for quality and efficiency in circuit protection.
