Specifications

No. of Poles	1P
Power Loss (W)	3.18
Pollution Degree	3
Rated Current (A)	32
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	440
Rated Impulse Withstand Voltage (kV)	4
Family	S200
Icn-Rated Short Circuit Capacity (kA)	10
Inc-Rated Conditional Short Circuit Capacity (kA)	10
Breaking Capacity (kA)	10 @230 V AC

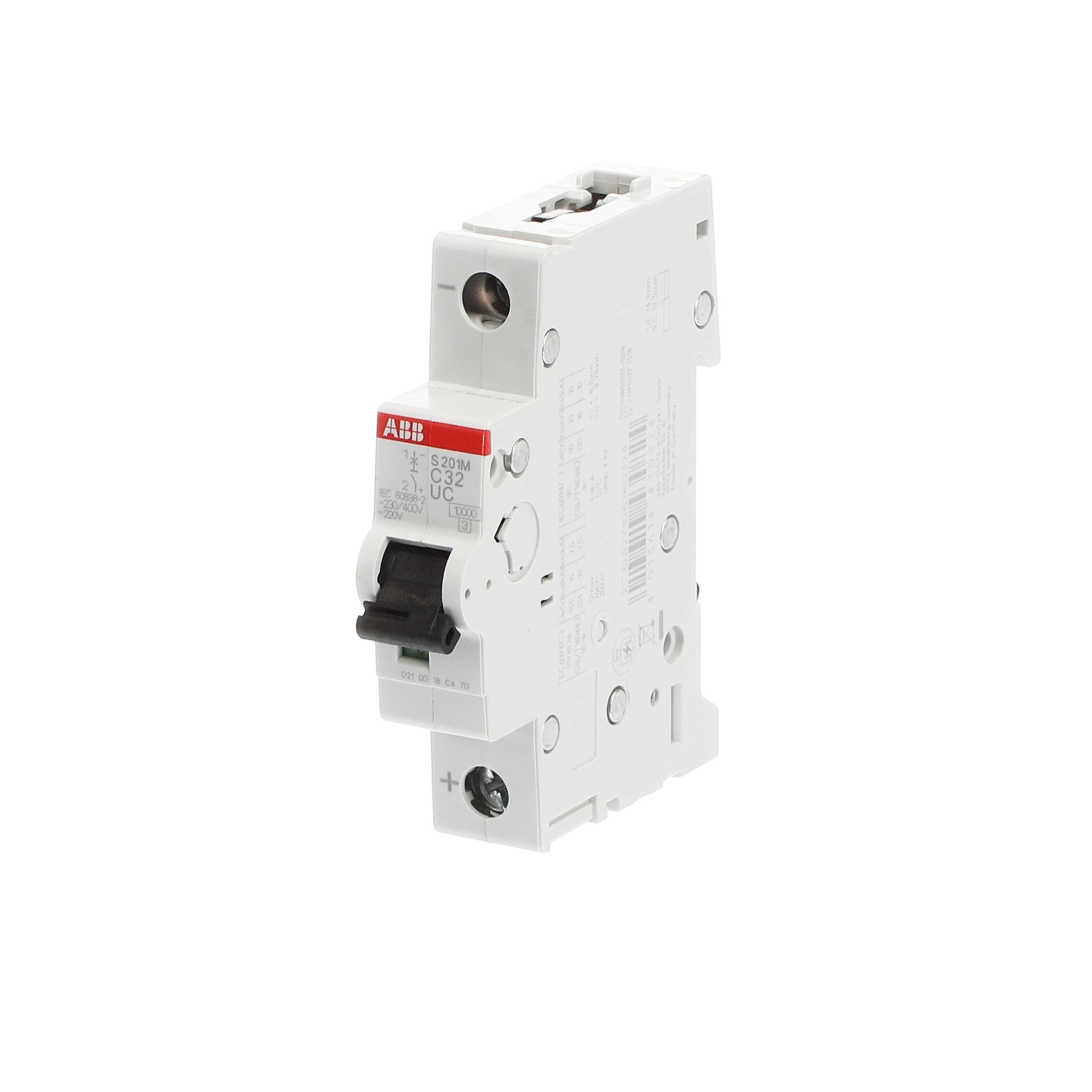

Product Type	Miniature Circuit breaker
Brand	ABB
Breaking Capacity	10 kA at 230 VAC
Collection	S200
Curve Type	C
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	69 mm
Height	85 mm
Mounting Type	DIN Rail
Number of Poles	1
Power Loss	3.18 W
Rated Current	32 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	440 V
Short Circuit Capacity	10 kA
Standards and Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Tightening Torque	2.8 N-m
Trip Curve	C Curve
Width	17.5 mm
