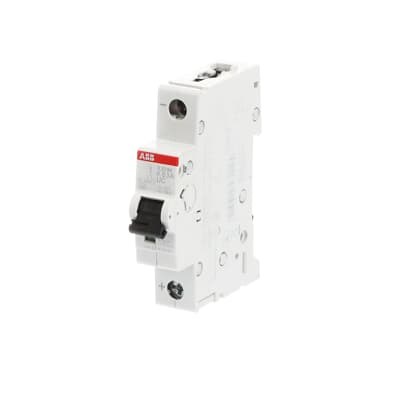

When selecting a Miniature Circuit Breaker (MCB) for your industrial applications, it is crucial to consider the technical specifications and standards compliance to ensure reliable performance. This MCB offers a comprehensive set of features tailored for robust industrial environments.
This device operates at a rated current of 63 A with a rated voltage of 230/240 VAC, making it suitable for various industrial electrical systems. It boasts an impressive breaking capacity of 10 kA at 230 VAC, ensuring effective protection against short circuits and overloads. Designed for single-pole installations, this MCB fits seamlessly into existing setups without requiring extensive modifications.
The unit's power loss is minimal at just 5.26 W, contributing to energy efficiency and reduced heat generation within electrical panels. The screw clamp terminal type facilitates secure connections with a recommended tightening torque of 2.8 N-m, ensuring stability in high-vibration environments.
Compact dimensions (width: 17.5 mm, height: 85 mm, depth: 69 mm) allow for easy integration into space-constrained control panels while maintaining adequate clearance for heat dissipation and safety access.
Compliance with international standards such as CSA 22.2 No. 235, IEC/EN 60947-2, and UL 1077 underscores its reliability across different regulatory landscapes—important when dealing with global projects or exports from Australia.
The MCB supports both standard frequencies of operation—50 Hz and 60 Hz—and withstands impulse voltages up to 4 kV, offering resilience against transient overvoltage conditions commonly encountered in industrial settings.
With a short circuit capacity aligned with its breaking capability at the same level (10 kA), this device ensures consistent performance under fault conditions. The K curve type is particularly suited for protecting devices that experience higher inrush currents upon startup such as motors or transformers.
Part of the S200MUC collection, this MCB comes housed in RAL 7035 grey casing—a neutral color that blends well within most industrial contexts while providing clear visibility during maintenance checks or inspections.
In summary, this MCB delivers dependable protection tailored specifically for demanding industrial environments where reliability cannot be compromised. By adhering to stringent international standards and offering practical features like compact design and efficient power management—it stands out as an essential component in safeguarding your electrical infrastructure effectively against faults.
