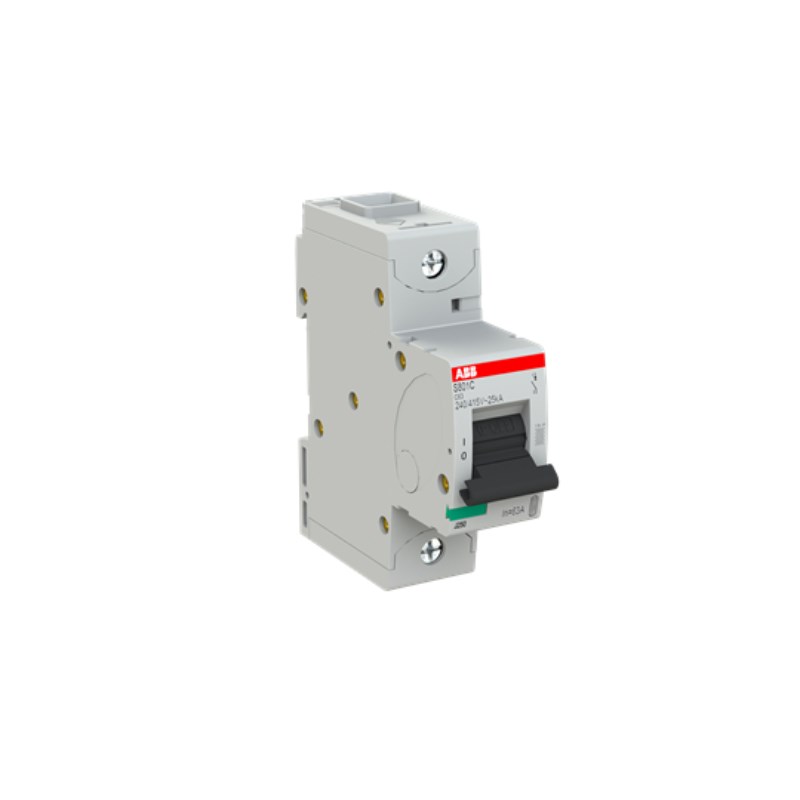

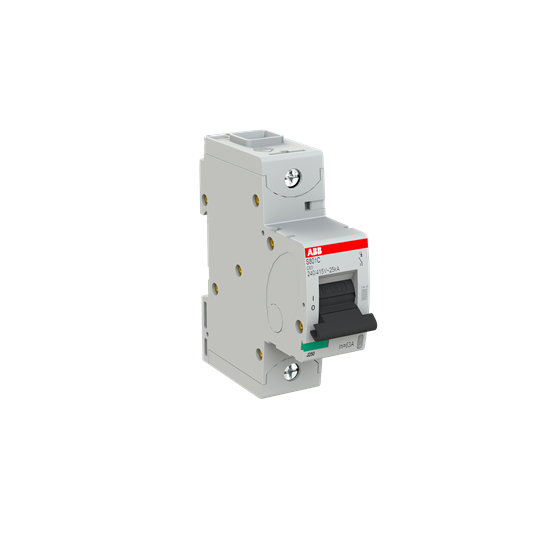

The S800C series MCB is a robust solution for commercial and industrial electrical protection needs. Designed with precision, this miniature circuit breaker (MCB) offers reliable performance in demanding environments. With a rated current of 63 A, it effectively manages power distribution while maintaining safety.
Key to its design is the impressive breaking capacity of 25 kA at 230 VAC, ensuring it can handle high fault currents without compromising system integrity. The rated voltage spans both 230/400 VAC, making it versatile for various applications. It operates efficiently across standard frequencies of 50/60 Hz.
Safety and reliability are paramount with an IP20 degree of protection, safeguarding against solid objects over 12 mm in size. Additionally, compliance with AS/NZS 60898-1, AS/NZS 60947-2, and UL 1077 standards underscores its credibility in meeting rigorous safety requirements.
The MCB features a screw clamp terminal type that supports up to a cable cross-section of 50 sq-mm on both top and bottom connections. This provides flexibility in installation while ensuring secure electrical connections. The tightening torque is specified at 3.5 N-m to maintain optimal contact pressure.
For ease of installation, the device mounts conveniently onto DIN rails and occupies minimal space with dimensions measuring just 27 mm wide by 95 mm high by 82.5 mm deep. Its compact form factor does not compromise functionality or performance.
Engineered to withstand transient overvoltages with an impulse withstand voltage rating of up to 8 kV, the S800C series offers robust protection against voltage spikes commonly encountered in industrial settings.
The housing comes in RAL 7035 grey color which blends seamlessly into most panel designs while maintaining an aesthetic appeal suitable for modern installations.
With a curve type C characteristic, this MCB provides adequate tripping conditions suited for general purpose circuits prone to moderate levels of inductive loads such as motors or transformers typically found in commercial setups.
In terms of environmental considerations, it maintains operational efficiency even under pollution levels classified as IP3 degree—ensuring durability and longevity across diverse operating conditions.
Overall, the S800C series MCB stands out as a dependable choice for those requiring comprehensive circuit protection solutions tailored specifically towards commercial and industrial applications where reliability cannot be compromised.
