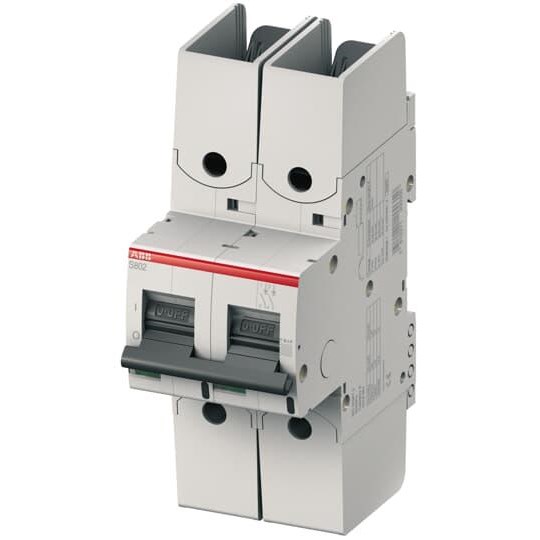

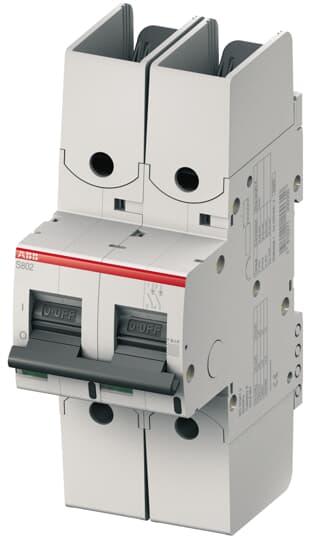

ABB S802HVK40 High Performance Miniature Circuit Breaker 4kA at 1000VAC 2-P 40A 580/1000VAC K-Curve

Product Code: S802HVK40

  • MCB with 40 A rated current
  • Handles up to 1000 VAC voltage
  • Dual pole with K release type
  • Breaking capacity of 4 kA at 1000 VAC
  • Compact DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 50/50
Cable Cross Section - Flexible (mm²) Top/Bottom - 70/70
Dimensions (mm) 54W x 142H x 82.5D
No. of Poles 2
Pole Width (mm) 27
Power Loss (W) 7.4
Rated Conditional Short-Circuit Current - Inc (kA) 4
Pollution Degree 2
Rated Current (A) 40
Rated Frequency (Hz) 50
Rated Insulation Voltage (V) 1000
Rated Impulse Withstand Voltage (kV) 8
Rated Short-Circuit Capacity - Icn (kA) 2.5
Rated Operational Voltage AC (V) 580/1000
Breaking Capacity 400V AC - Icu (kA) 4
Minimum Operational Voltage AC (V) 12
Breaking Capacity 230V AC - Icu (kA) 4
Rated Voltage AC (V) 1000
Voltage Type AC
Rated Voltage (V) 400
Minimum Temperature (°C) -25
Poles 2P
Breaking Capacity (kA) 4 @1000 V AC
Current Rating (A) 40
Family S800HV
AC Voltage (V) 580/1000
Icn-Rated Short Circuit Capacity (kA) 2.5
Inc-Rated Conditional Short Circuit Capacity (kA) 4
Impulse Withstand Voltage (kV/1.2µS) 8
Built-in Depth (mm) 82.5
Width in Number of Modular Spacings 3
No. of Protected Poles 2
Product Type High Performance Circuit breaker
Brand ABB
Series S800HV
Application Commercial and Industrial
Breaking Capacity 4 kA at 1000 VAC
Cable Cross Section 50 sq-mm Top, 50 sq-mm Bottom
Collection S800HV
Current Limiting Class 3
Curve Type K
Degree of Pollution IP2
Degree of Protection IP20
Depth 82.5 mm
Height 142 mm
Housing Colour RAL 7035 Grey
Housing Material Insulation Group I, RAL 7035
Impulse Voltage 8 kV
Mounting Type DIN Rail
Number of Poles 2
Number of Protected Poles 2
Operational Temperature -25 deg C
Overvoltage Category 3
Pole Width 27 mm
Power Loss 7.4 W
Rated Current 40 A
Rated Frequency 50 Hz
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated Short Circuit Current 4 kA
Rated Voltage 580 VAC, 1000 VAC
Release Type K
Short Circuit Capacity 2.5 kA
Standards and Approvals IEC/EN 60947-2, UL 1077
Tightening Torque 3.5 N-m
Trip Curve K Curve
Width 54 mm

Description

The S802HV-K40 is a 2-pole High Performance Circuit breaker with K-characteristic, with cage terminal, long separating plates and a rated current of 40 A. It is a current limiting device with a maximum breaking capacity of 4kA at 580/1000V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802HV-K40 complies with IEC/EN 60947-2 and allows the use for industrial applications. It can be used worldwide. The extensive range of accessory makes the use of S802HV-K40 more comfortable. Due to the fast arc extinction of S802HV-K40 your application will be secured.
