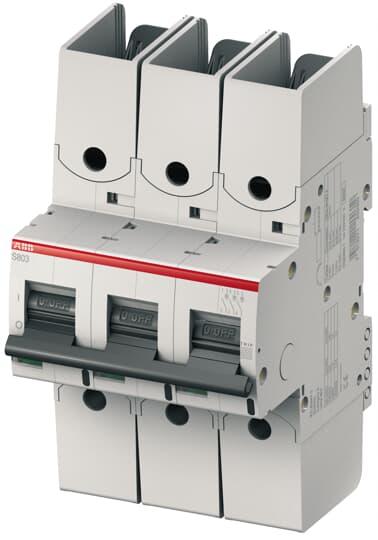

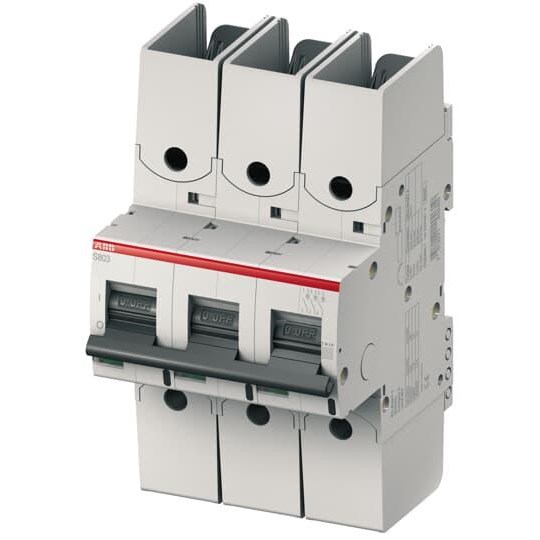

The S800HV Series MCB is a robust and reliable choice for both commercial and industrial applications. Designed with precision, this miniature circuit breaker offers a comprehensive set of features that cater to demanding electrical environments.
Starting with its electrical specifications, the S800HV MCB boasts a rated current of 10 A, making it suitable for various medium-load applications. It operates efficiently at rated voltages of 580 VAC and 1000 VAC, providing flexibility in diverse operational settings. The device's breaking capacity stands at an impressive 4 kA at 1000 VAC, ensuring dependable performance even under fault conditions.
Safety and durability are paramount in the design of this MCB. With a rated impulse withstand voltage of 8 kV and a rated insulation voltage of up to 1000 V, it is well-equipped to handle high-voltage scenarios. The unit adheres to stringent standards and approvals including IEC/EN 60947-2 and UL 1077, which underscores its reliability in safety-critical applications.
Physically, the S800HV is engineered for practicality with dimensions measuring 81 mm in width, 142 mm in height, and a depth of 82.5 mm. Its three-pole configuration ensures versatility across multiple circuit requirements while maintaining compactness with each pole having a width of just 27 mm.
Installation is straightforward thanks to its DIN Rail mounting type—a standard method that simplifies integration into existing systems. For added convenience during installation or maintenance, it supports cable cross sections up to 50 sq-mm on both top and bottom connections.
This MCB also prioritizes energy efficiency with power loss minimized to just 4.5 W during operation—an important consideration for reducing overall system energy consumption over time.
In terms of environmental resilience, the S800HV operates effectively within an operational temperature range from -25°C upwards ensuring reliable performance across varied climatic conditions typical in Australian settings.
The degree of protection offered by this product is IP20 which provides basic protection against dust ingress while being mindful that it's not waterproof—a factor worth considering depending on your specific application environment needs.
Its housing comes in RAL7035 grey color which blends seamlessly into most industrial installations without drawing unnecessary attention away from other critical components within your setup framework.
With these detailed specifications laid out clearly you can assess how well this particular model aligns with your technical requirements whether you're upgrading existing infrastructure or planning new installations altogether—the S800HV Series offers proven reliability backed by recognized standards compliance all wrapped up neatly within one compact yet powerful package perfectly suited towards fulfilling modern-day demands placed upon today’s sophisticated electrical systems found throughout Australia’s diverse commercial & industrial sectors alike!
