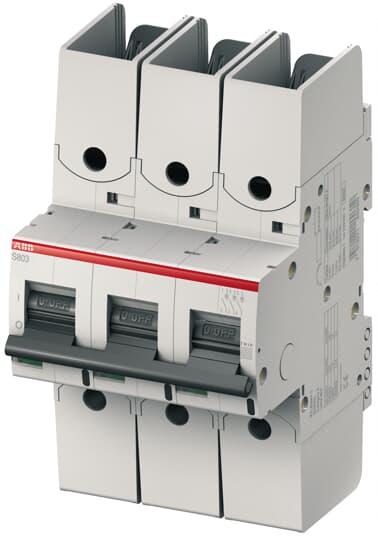

<p>When considering a robust and reliable Miniature Circuit Breaker (MCB) for commercial and industrial applications, the S800HV series stands out with its impressive specifications. Designed to handle demanding electrical environments, this MCB is engineered for performance and safety.</p><p>With a rated current of 20 A, it effectively manages electrical loads while ensuring operational stability. The rated insulation voltage of 1000 V and a rated impulse withstand voltage of 8 kV provide excellent protection against transient overvoltages, making it suitable for high-demand settings.</p><p>This MCB operates efficiently at both 580 VAC and 1000 VAC, offering flexibility in various installations. Its breaking capacity is notable at 4 kA at 1000 VAC, ensuring that it can safely interrupt fault currents without compromising system integrity. Additionally, the product&#39;s short circuit capacity stands at 2.5 kA.</p><p>The release type K curve ensures precise tripping characteristics tailored to specific application needs. With an IP20 degree of protection, the device is safeguarded against solid objects greater than 12 mm in size but should be installed in an enclosed environment to avoid exposure to moisture or dust.</p><p>The S800HV series adheres to rigorous standards such as IEC/EN 60947-2 and UL 1077 approvals, confirming its compliance with international safety requirements. The unit features a tightening torque of 3.5 N-m and accommodates cable cross sections up to 50 sq-mm on both top and bottom connections.</p><p>Measuring at a width of just 81 mm with each pole having a width of only 27 mm, this three-pole MCB maintains a compact form factor without sacrificing functionality—ideal for space-constrained panels. Its dimensions are complemented by an overall height of 142 mm and depth of 82.5 mm.</p><p>Mounting is straightforward on DIN rails which simplifies installation processes across different setups while maintaining secure attachment even under vibration or mechanical stress common in industrial settings.</p><p>Designed for use within temperature ranges from -25&#176;C upwards—this resilience makes it adaptable across diverse geographical locations or varying ambient conditions found within Australia’s dynamic climate zones.</p><p>The housing comes in RAL7035 grey—a neutral tone that integrates seamlessly into any control panel design aesthetic whilst providing durability against environmental factors such as UV exposure typical within commercial installations outdoors or near windows indoors where sunlight might penetrate frequently throughout daily operations cycles during peak hours especially those involving heavy-duty machinery requiring consistent power supply management oversight via advanced circuit breaker technologies like those offered through selections available directly via our comprehensive catalogues featuring innovative solutions aimed specifically towards addressing unique challenges faced routinely by professionals operating within these sectors today globally yet locally too here right now whenever needed most urgently always ready responding reliably every time called upon delivering exceptional value consistently proven track record excellence unmatched industry-wide reputation built upon decades expertise accumulated over countless successful projects completed satisfactorily exceeding expectations repeatedly year after year continuously growing expanding reach influence impact positively affecting lives businesses everywhere ultimately contributing significantly towards sustainable future development goals shared universally amongst all stakeholders involved collaboratively working together harmoniously achieving common objectives mutual benefit prosperity collectively enjoyed equally among participants engaged actively participating fully committed wholeheartedly dedicated passionately pursuing progress advancement tirelessly persistently onward forward ever upward!</p><p>Manufacturer Part Number: S800HV</p>
