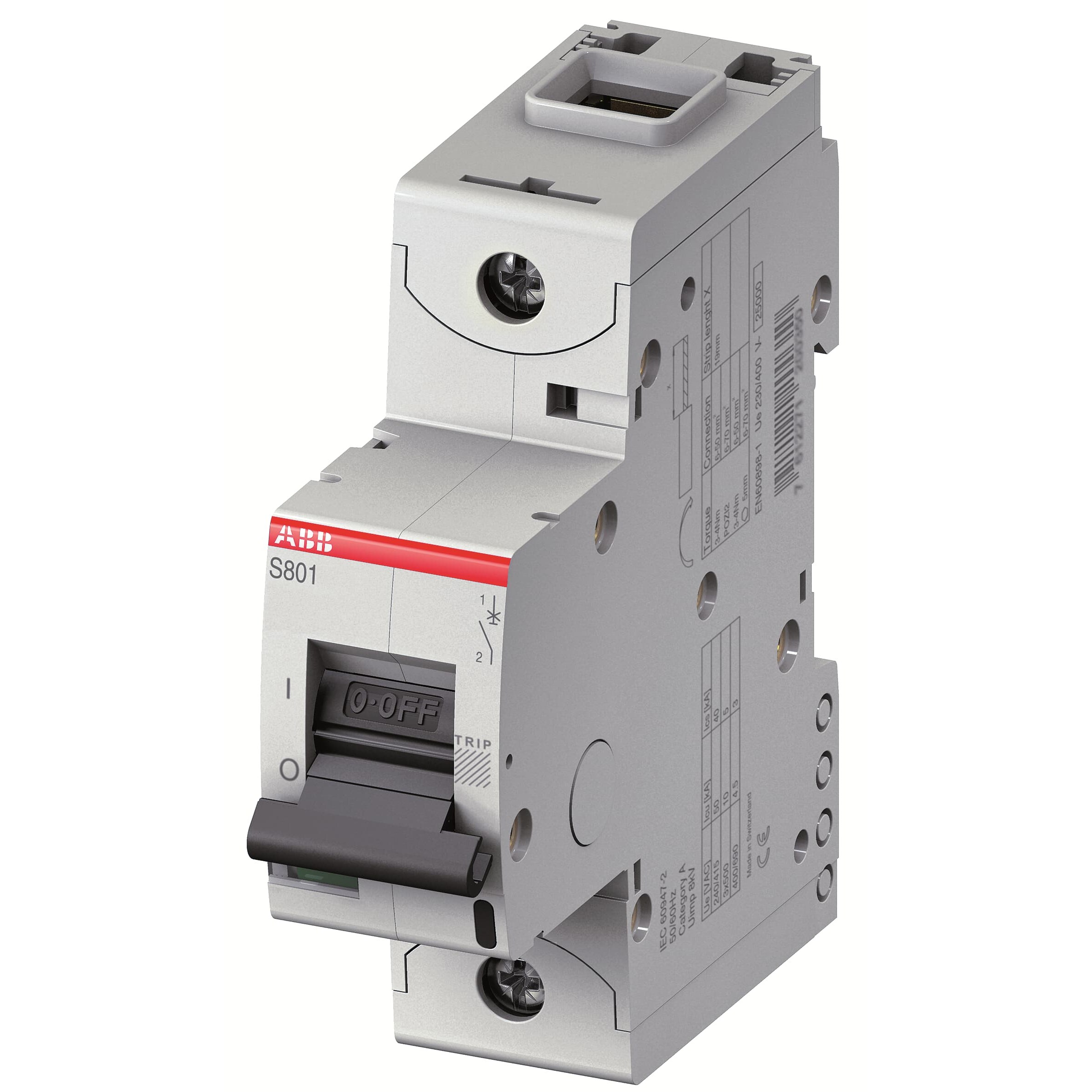

ABB S801SB10 High Performance Miniature Circuit Breaker 40kA 1-P 10A 230/400VAC B-Curve

Product Code: S801SB10

  • Rated for 10 A with 40 kA breaking capacity
  • Operates at 230/400 VAC, withstands up to 8 kV
  • Compact design: 24 mm width, IP20 protection
  • Screw clamp terminals with 3.5 N-m torque
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type High Performance Circuit breaker
Brand ABB
Ambient Temperature -25 to 60 deg C Operation, -40 to 70 deg C Storage
Breaking Capacity 40 kA
Curve Type B
Degree of Pollution IP3
Degree of Protection IP20
Depth 82.5 mm
Electrical Durability 10000 Cycles
Height 95 mm
Housing Colour RAL 7035 Grey
Number of Poles 1
Power Loss 1.5 W
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 690 V
Rated Voltage 230/400 VAC
Standards and Approvals IEC/EN 60947-2, IEC/EN 60898-1, UL 1077
Terminal Type Screw Clamp
Tightening Torque 3.5 N-m
Width 24 mm
