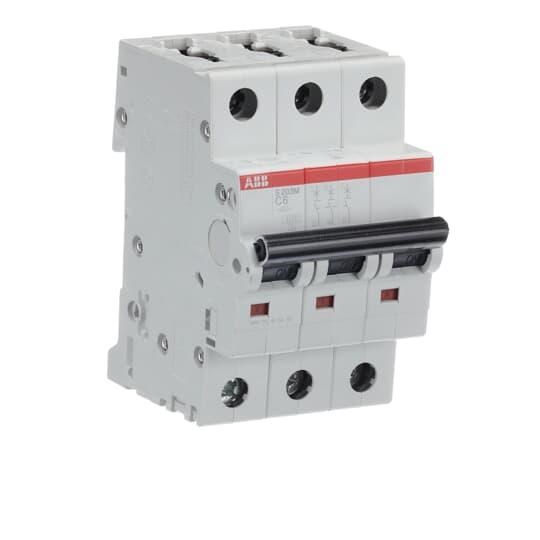

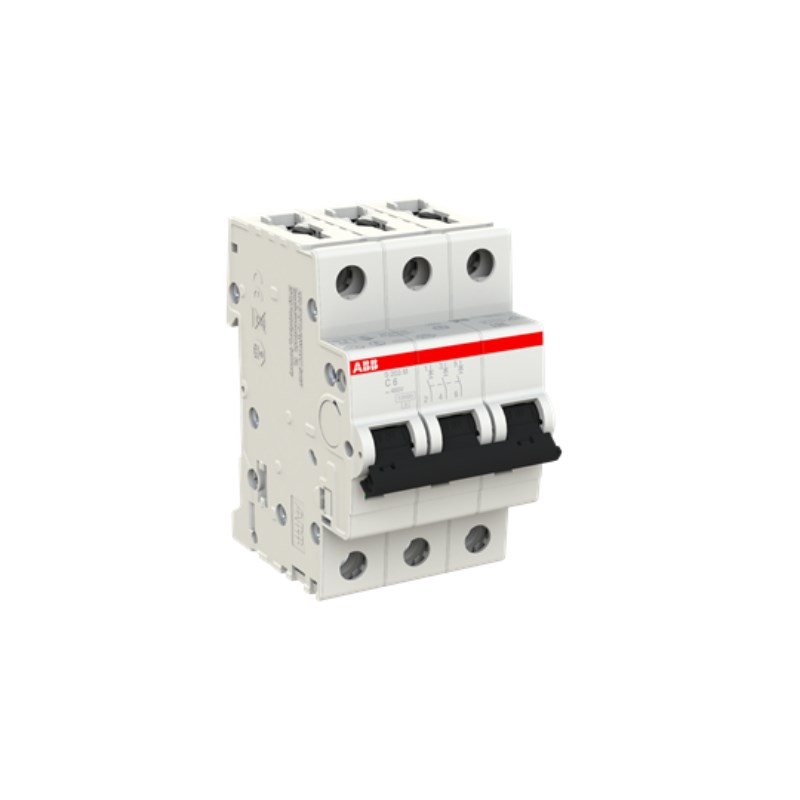

If you're in the market for a reliable Miniature Circuit Breaker (MCB) suitable for both commercial and industrial applications, the S200M series might be exactly what you need. With its robust features and adherence to stringent standards, this MCB promises durability and efficiency.
The S200M MCB is designed with a rated current of 6 A, making it ideal for various electrical systems. It can withstand impulse voltages up to 4 kV and offers a rated insulation voltage of 440 V, ensuring safety and reliability under high-stress conditions. Operating at a rated voltage of 400/415 VAC, this breaker is versatile enough for diverse applications.
One of the standout features is its impressive breaking capacity of 15 kA at 400 VAC. This ensures that your system remains protected even during unexpected surges or faults. The device's short circuit capacity stands at an equally commendable 10 kA, providing further assurance against potential electrical mishaps.
Installation is straightforward due to its DIN Rail mounting type. The screw clamp terminal type facilitates secure connections while supporting cable cross-sections up to 35 sq-mm on both top and bottom entries. The tightening torque required is precise at 2.8 N-m, which helps maintain strong connectivity without over-tightening.
The S200M comes with dimensions that make it compact yet substantial: a width of 52.5 mm, height of 88 mm, and depth of 69 mm. Its pole width measures at just 17.5 mm per pole across three poles—ensuring efficient use of space within your control panel.
Durability isn't compromised either; it boasts an electrical durability rating capable of enduring up to 20,000 cycles—making it a long-term solution for demanding environments. It operates efficiently within ambient temperatures ranging from -25°C to +55°C and can be stored safely between -40°C to +70°C.
Safety standards are well-covered as it's compliant with AS/NZS 60898-1, AS/NZS 60947-2, and UL1077 certifications—guaranteeing peace-of-mind knowing that it meets rigorous industry benchmarks.
Its degree of protection (IP20) ensures basic protection against solid objects larger than fingers but should be installed in enclosures offering higher IP ratings if exposure risks exist beyond typical indoor environments.
With curve type C characteristics suited for general-purpose use where moderate inrush currents are expected upon startup—the S200M caters effectively across many scenarios found within commercial settings or industrial plants alike!
Finally wrapped neatly inside housing colored RAL7035 grey—it not only performs well but looks professional too!
