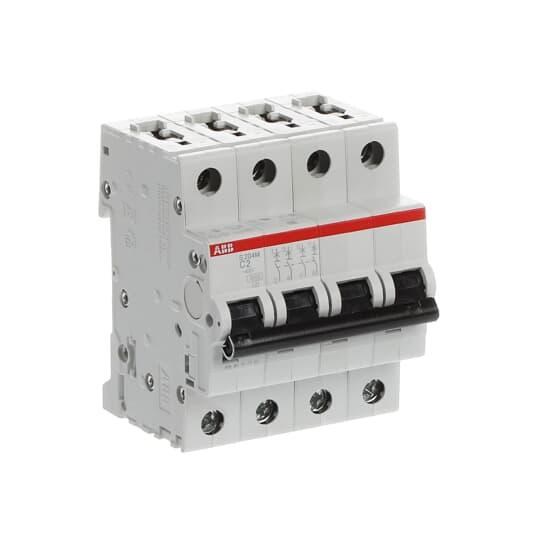

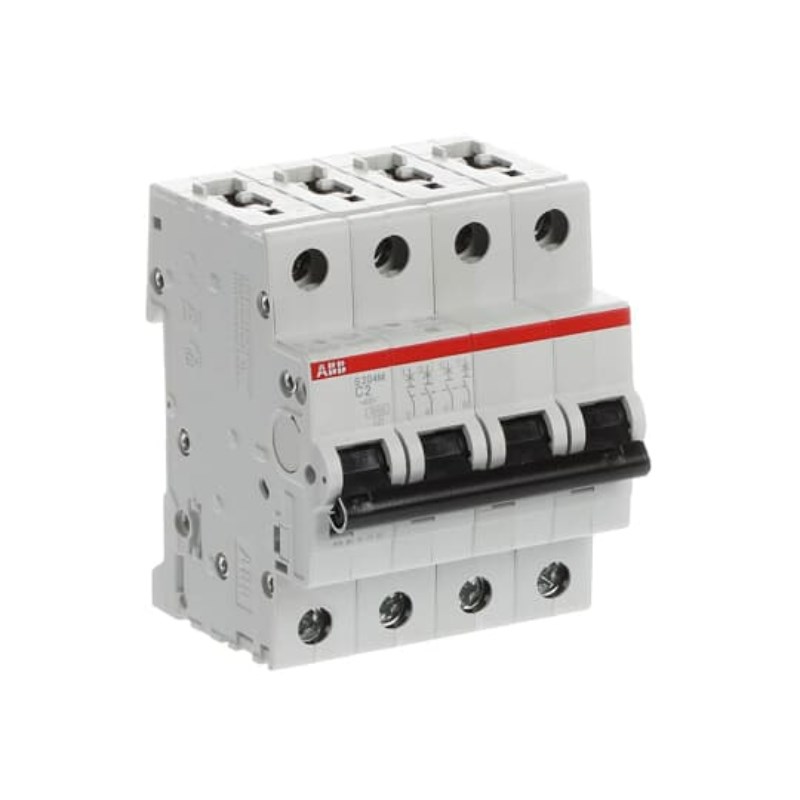

ABB S204MC2 Miniature Circuit Breaker 15kA at 400VAC 4-P 2A 400/415VAC C-Curve

Product Code: S204MC2

  • 4-pole MCB with 15 kA breaking capacity
  • Rated voltage of 400/415 VAC
  • IP20 protection with screw clamp terminals
  • Complies with AS/NZS and UL standards
  • Operates in -25 to 55°C; DIN rail mount
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 35/35
Cable Cross Section - Flexible (mm²) Top/Bottom - 25/25
Busbar Cross Section (mm²) Top/Bottom - 10/10
Dimensions (mm) 85H x 69D x 70W
No. of Poles 4P
Pole Width (mm) 17.5
Power Loss (W) 1.8/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 25
Pollution Degree 3
Rated Current (A) 2
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 440
Rated Impulse Withstand Voltage (kV) 4
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Operational Voltage AC (V) 400
Breaking Capacity 400V AC - Icu (kA) 15
Maximum Operational Voltage AC (V) 440
Minimum Operational Voltage AC (V) 12
Minimum Operational Voltage DC (V) 12
Rated Voltage AC (V) 400
Poles 4P
Breaking Capacity (kA) 15 @400 V AC
Current Rating (A) 2
Family S200M
AC Voltage (V) 400/415
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 25
Impulse Withstand Voltage (kV/1.2µS) 4
Product Type Miniature Circuit Breaker
Brand ABB
Series S200M
Ambient Temperature -25 to 55 deg C Operation, -40 to 70 deg C Storage
Application Commercial and Industrial
Breaking Capacity 15 kA at 400 VAC
Bulbar Cross Section 10 sq-mm Top, 10 sq-mm Bottom
Cable Cross Section 35 sq-mm Top, 35 sq-mm Bottom
Collection S200M
Curve Type C
Degree of Pollution IP3
Degree of Protection IP20
Depth 69 mm
Electrical Durability 20000 Cycles
Height 85 mm
Housing Colour RAL 7035 Grey
Housing Material Insulation Group II, RAL 7035
Impulse Voltage 4 kV
Mounting Type DIN Rail
Number of Poles 4
Pole Width 17.5 mm
Power Loss 1.8 W
Rated Current 2 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Short Circuit Current 25 kA
Rated Voltage 400/415 VAC
Short Circuit Capacity 10 kA
Standards and Approvals AS/NZS 60898-1, AS/NZS 60947-2, UL 1077
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Trip Curve C Curve
Width 70 mm

Description

The ABB Miniature Circuit Breaker is a reliable and efficient solution for commercial and industrial applications. With a 10kA breaking capacity at 400VAC and 15kA at 125VDC, it provides robust protection against short circuits and thermal overload. This 4-pole circuit breaker has a C curve characteristic, making it suitable for various electrical systems. With a current rating of 2A, it offers precise and accurate protection. Trust ABB for high-quality circuit breakers that ensure the safety and reliability of your electrical installations.
