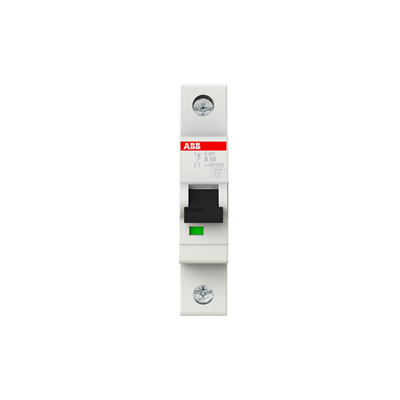

ABB S201PB50 Miniature Circuit Breaker 7.5kA 1-P 50A 230VAC B-Curve

Product Code: S201PB50

Rated for 50A current and 230VAC voltage
Breaking capacity of 7.5 kA
Screw clamp terminals with 2.8 N-m torque
Complies with IEC/EN, UL, CSA standards
Durable for up to 10,000 cycles

Specifications

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200P
Breaking Capacity	7.5 kA
Curve Type	B
Degree of Pollution	IP3
Degree of Protection	IP20
Dielectric Test Voltage	2 kV
Electrical Durability	10000 Cycles
Housing Colour	RAL 7035 Grey
Number of Poles	1
Power Loss	3 W
Rated Current	50 A
Rated Frequency	50/60 Hz
Rated Insulation Voltage	440 V
Rated Voltage	230 VAC
Standards and Approvals	IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235
Terminal Type	Screw Clamp
Tightening Torque	2.8 N-m

Documents

IPD Product Catalogue

IPD Product Catalogue V17
