  • ABB S203PC32 Miniature Circuit Breaker 11.3kA 3-P 32A C-Curve

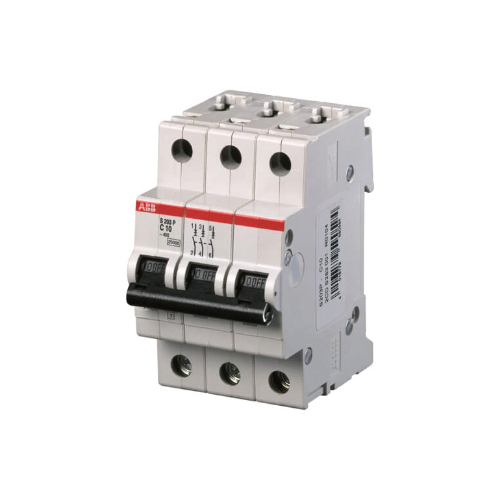

ABB S203PC32 Miniature Circuit Breaker 11.3kA 3-P 32A C-Curve

Product Code: S203PC32

  • 32 A rated current with 3 poles
  • Breaking capacity of 11.3 kA
  • IP20 protection with screw clamp terminals
  • Compliant with CSA, IEC/EN, and UL standards
  • Durable for up to 10,000 electrical cycles
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Miniature Circuit Breaker
Brand ABB
Series S200P
Ambient Temperature -25 to 55 deg C Operation, -40 to 70 deg C Storage
Breaking Capacity 11.3 kA
Connecting Capacity 18-8 AWG Busbar/18-4 AWG Conductor
Curve Type C
Degree of Pollution IP3
Degree of Protection IP20
Electrical Durability 10000 Cycles
Housing Colour RAL 7035 Grey
Number of Poles 3
Power Loss 12.6 W
Rated Current 32 A
Rated Frequency 50/60 Hz
Rated Short Circuit Current 25 kA
Standards and Approvals CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
