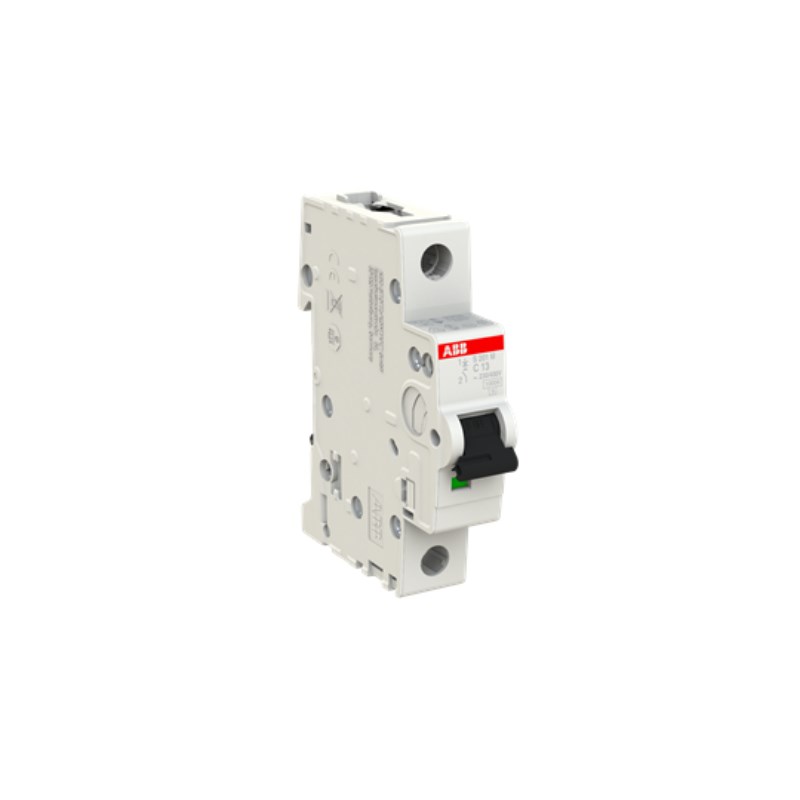

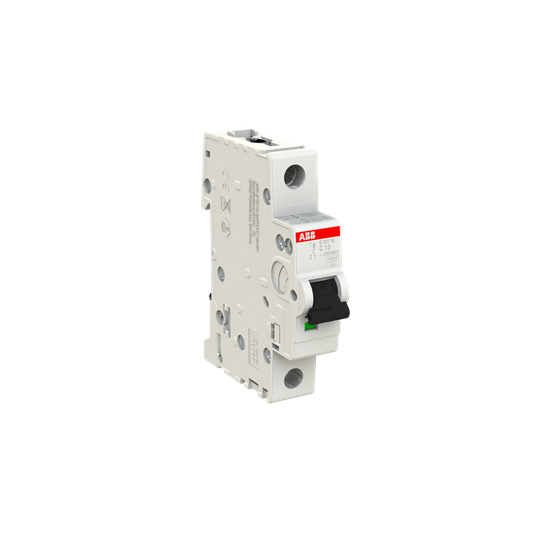

ABB S201MC13 Miniature Circuit Breaker 15kA at 230VAC 1-P 13A 230/400VAC C-Curve

Product Code: S201MC13

  • Rated Current: 13 A
  • Breaking Capacity: 15 kA at 230 VAC
  • IP20 Protection, Screw Clamp Terminals
  • Complies with AS/NZS & UL standards
  • Compact Size: 17.5 mm width
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 35/35
Cable Cross Section - Flexible (mm²) Top/Bottom - 25/25
Busbar Cross Section (mm²) Top/Bottom - 10/10
No. of Poles 1P
Pole Width (mm) 17.5
Power Loss (W) 2.3/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 15
Pollution Degree 3
Rated Current (A) 13
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 440
Rated Impulse Withstand Voltage (kV) 4
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Operational Voltage AC (V) 230/400
Maximum Operational Voltage DC (V) 72
Maximum Operational Voltage AC (V) 253
Minimum Operational Voltage AC (V) 12
Minimum Operational Voltage DC (V) 12
Breaking Capacity 230V AC - Icu (kA) 15
Rated Voltage AC (V) 230
Dimensions (mm) 88H x 69D x 17.5W
Poles 1P
Breaking Capacity (kA) 15 @230 V AC
Current Rating (A) 13
Family S200M
AC Voltage (V) 230/400
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 15
Impulse Withstand Voltage (kV/1.2µS) 4
Product Type Miniature Circuit Breaker
Brand ABB
Series S200M
Application Commercial and Industrial
Breaking Capacity 15 kA at 230 VAC
Bulbar Cross Section 10 sq-mm Top, 10 sq-mm Bottom
Cable Cross Section 35 sq-mm Top, 35 sq-mm Bottom
Collection S200M
Curve Type C
Degree of Pollution IP3
Degree of Protection IP20
Depth 69 mm
Height 88 mm
Housing Colour RAL 7035 Grey
Housing Material Insulation Group II, RAL 7035
Impulse Voltage 4 kV
Mounting Type DIN Rail
Number of Poles 1
Pole Width 17.5 mm
Power Loss 2.3 W
Rated Current 13 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Short Circuit Current 15 kA
Rated Voltage 230/400 VAC
Short Circuit Capacity 10 kA
Standards and Approvals AS/NZS 60898-1, AS/NZS 60947-2, UL 1077
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Trip Curve C Curve
Width 17.5 mm

Description

The ABB Miniature Circuit Breaker is designed for commercial and industrial use. It offers 10kA protection at 230VAC and 15kA protection at 60VDC. With a single pole and a rating of 13A, it provides C curve protection against both short circuits and thermal overload.
