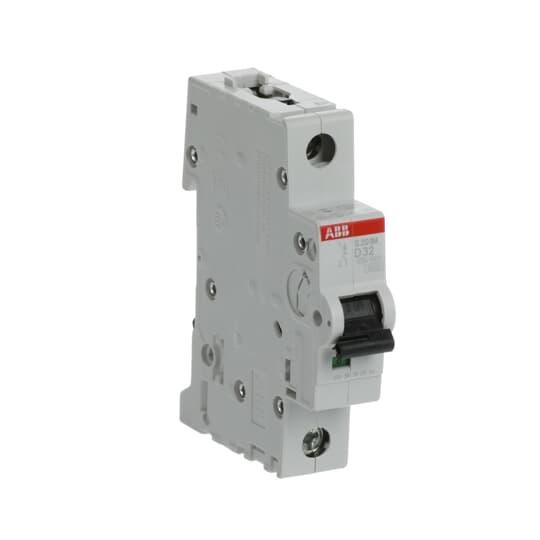

The S200M series MCB is a reliable and robust choice for both commercial and industrial applications, designed to meet the demanding requirements of modern electrical systems. With its 32 A rated current, this miniature circuit breaker ensures efficient protection against overloads and short circuits, making it an essential component in safeguarding your electrical infrastructure.
This MCB boasts a rated impulse withstand voltage of 4 kV and a rated insulation voltage of 440 V, providing excellent resilience against transient overvoltages. It operates effectively at a standard rated voltage of 230/400 VAC with a power loss of just 3.6 W, ensuring energy efficiency while maintaining optimal performance.
Designed with practicality in mind, the S200M features a single pole configuration with a breaking capacity of 15 kA at 230 VAC. This high breaking capacity ensures that the device can handle significant fault currents without compromising safety or functionality. The degree of protection is IP20, suitable for environments where direct contact with live parts needs to be prevented.
Installation is straightforward thanks to its screw clamp terminal type and DIN rail mounting compatibility. The tightening torque required is 2.8 N-m, which facilitates secure connections that stand up to regular use and maintenance activities.
Compact yet sturdy, the dimensions are well-suited for space-constrained installations: with a width of just 17.5 mm, height of 88 mm, and depth of 69 mm. The housing comes in RAL 7035 grey color—an unobtrusive addition to any panel setup.
Adhering to rigorous standards such as AS/NZS 60898-1, AS/NZS 60947-2, and UL1077 ensures compliance across various regions including Australia’s stringent regulations. Its curve type D characteristic makes it ideal for protecting circuits prone to high inrush currents typically found in motor loads or transformers.
The MCB supports cable cross-sections up to 35 sq-mm on both top and bottom terminals along with bulbar cross sections up to 10 sq-mm each side offering flexibility during installation processes across different setups.
With an impressive electrical durability rating capable of enduring up to ten thousand cycles this unit promises longevity even under frequent operation conditions like those found within industrial settings operating at frequencies between fifty-sixty Hz
Temperature resilience ranges from -25°C through +55°C during operation extending further when stored between -40°C – +70°C allowing versatile deployment scenarios regardless climate challenges faced onsite
In summary whether you’re upgrading existing systems expanding new projects or simply seeking dependable solutions look no further than our trusted S200M collection
