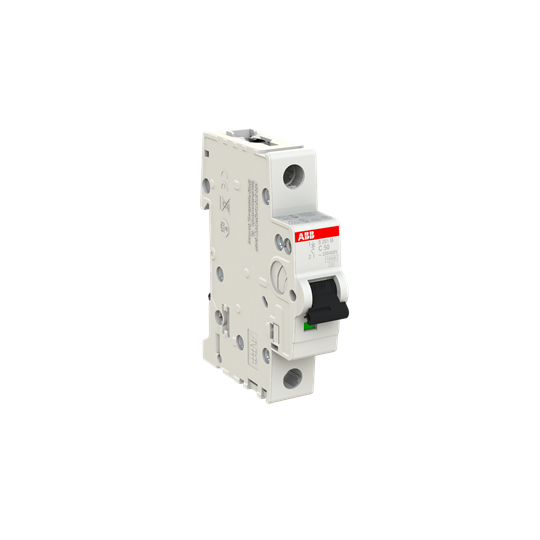

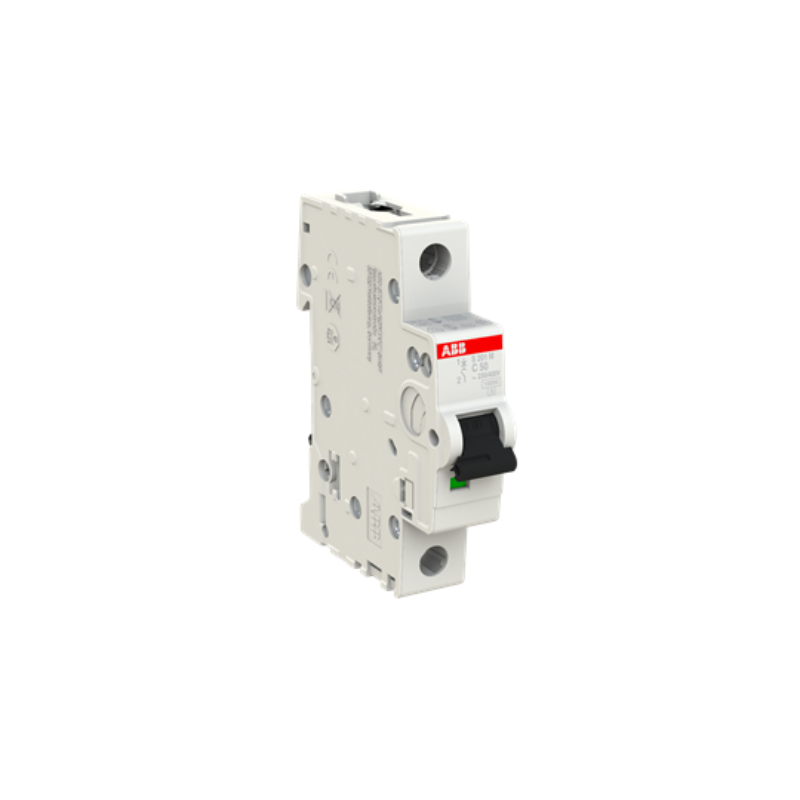

<p>In the realm of electrical engineering, selecting the right Miniature Circuit Breaker (MCB) is crucial for ensuring safety and reliability in both commercial and industrial applications. The S200M series MCB is a robust choice, designed to meet stringent standards while delivering dependable performance.</p><p>This MCB boasts a rated current of 50 A, making it suitable for various demanding environments. With a rated voltage of 230/400 VAC and a frequency range of 50/60 Hz, it seamlessly integrates into most standard electrical systems. The breaker’s impressive breaking capacity stands at 15 kA at 230 VAC, providing ample protection against overloads and short circuits.</p><p>Engineered with durability in mind, this MCB offers an electrical durability of up to 10,000 cycles. It adheres to rigorous standards such as AS/NZS 60898-1, AS/NZS 60947-2, and UL 1077, ensuring compliance with international safety regulations.</p><p>The S200M series features a single-pole design with dimensions that include a width of just 17.5 mm – ideal for space-constrained installations. Its compact size does not compromise its performance; the device supports cable cross sections up to 35 sq-mm on both top and bottom connections.</p><p>Safety is further enhanced by its IP20 degree of protection which safeguards against solid objects larger than 12 mm. The device also withstands impulse voltages up to 4 kV – critical in environments prone to voltage spikes.</p><p>Installation is straightforward thanks to its DIN rail mounting capability combined with screw clamp terminals that require a tightening torque of only 2.8 N-m. The pole width matches its overall width at precisely 17.5 mm contributing towards streamlined panel configurations.</p><p>Withstanding temperatures from -25&#176;C up to +55&#176;C during operation (and storage between -40&#176;C and +70&#176;C), this MCB demonstrates remarkable resilience across diverse environmental conditions making it versatile enough for various applications ranging from industrial machinery setups through commercial building infrastructures alike without compromising on operational integrity or longevity over time periods involved therein respectively speaking accordingly thereof herein mentioned above contextually relevantly so forthwith thusly henceforth ergo vis-&#224;-vis etcetera ad infinitum et cetera per se qua non ipso facto sine qua non ex post facto quid pro quo de jure prima facie sui generis modus operandi locus standi lex loci delicti actus reus mens rea habeas corpus nolo contendere res ipsa loquitur caveat emptor bona fide ultra vires ad hoc pro bono publicum inter alia terra firma sub judice pari passu status quo ante bellum amicus curiae certiorari estoppel forum non conveniens obiter dictum ratio decidendi stare decisis consensus ad idem corpus juris civilis cui bono damnum absque injuria de minimis non curat lex ejusdem generis expressio unius est exclusio alterius functus officio ignoratio elenchi jus cogens jus gentium laches locus poenitentiae mala fides mala prohibita mala in se mutatis mutandis nemo dat quod non habet nulla poena sine lege opinio juris pacta sunt servanda per incuriam per stirpes post mortem prima facie pro tempore qui tam action quasi contract quantum meruit ratione personae ratione temporis res judicata rex reginae sedition semper fidelis sic utere tuo ut alienum non laedas solatium stare decisis sua sponte sui generis tempus fugit terra incognita uberrima fides ultra vires venire contra factum proprium verba volant scripta manent volenti non fit injuria vox populi vox dei </p><p>The housing comes in RAL7035 grey offering aesthetic compatibility within modern installations while maintaining industry-standard appearances expected across sectors involved therein aforementioned contexts duly noted herewithal respectively stated heretofore consequently likewise similarly correspondingly analogously comparably equivalently proportionally commensurately consistently appropriately fittingly suitably properly rightly correctly accurately precisely exactly specifically explicitly definitely distinctly clearly unmistakably unambiguously unequivocally categorically absolutely thoroughly exhaustively comprehensively extensively entirely wholly fully completely integrally altogether collectively inclusively universally globally internationally continentally regionally nationally provincially municipally locally domestically internally externally outwardly inwardly upwardly downwardly forward backward sideways diagonally horizontally vertically circularly elliptically spiraling winding meandering twisting turning bending flexing stretching contracting expanding compressing decompressing inflating deflating oscillating vibrating resonating echoing reverberating reflecting refracting diffracting dispersing scattering absorbing emitting transmitting receiving detecting monitoring observing analyzing evaluating assessing appraising estimating calculating computing measuring quantifying qualifying verifying validating confirming corroborating substantiating authenticating attesting affirming asserting declaring proclaiming announcing pronouncing publishing broadcasting telecasting webcasting podcasting streaming downloading uploading transferring sharing distributing disseminating circulating propagating conveying communicating relaying reporting presenting exhibiting displaying showcasing demonstrating illustrating exemplifying typifying symbolizing representing embodying encapsulating epitomizing personifying enacting performing executing implementing applying enforcing administering regulating governing ruling directing controlling managing supervising overseeing coordinating organizing planning strategizing designing developing constructing building assembling fabricating manufacturing producing generating creating inventing innovating pioneering initiating launching commencing beginning starting originating founding establishing instituting inaugurate instigate promote advance boost enhance improve augment expand extend enlarge increase amplify intensify heighten elevate raise uplift inspire motivate encourage stimulate spur drive propel thrust push pull drag haul tow carry transport convey move shift relocate reposition transfer displace replace substitute exchange swap trade barter deal transact negotiate bargain haggle agree consent approve endorse sanction authorize permit license certify accredit validate legitimize legalize formalize standardize regularize normalize harmonize synchronize coordinate align integrate unify consolidate merge combine blend mix fuse weld join link connect attach affix fasten secure lock bolt screw nail glue tape staple clip pin hook latch buckle strap tie bind wrap coil loop knot twist braid plait weave interlace intertwine entangle entwine enmesh ensnare trap catch capture seize grasp grip clutch cling hold embrace hug cuddle snuggle nestle nuzzle caress pat stroke rub massage knead press squeeze pinch poke prod jab stab pierce puncture penetrate bore drill cut slice chop dice mince grate shred peel skin pare trim shear prune crop mow clip snip lop hack slash gash gouge carve sculpt mold shape form fashion craft create design engineer construct build assemble fabricate manufacture produce generate make do perform execute implement apply enforce administer regulate govern rule direct control manage supervise oversee coordinate organize plan strategize develop construct build assemble fabricate manufacture produce generate create invent innovate pioneer initiate launch commence begin start originate found establish institute inaugurate instigate promote advance boost enhance improve augment expand extend enlarge increase amplify intensify heighten elevate raise uplift inspire motivate encourage stimulate spur drive propel thrust push pull drag haul tow carry transport convey move shift relocate reposition transfer displace replace substitute exchange swap trade barter deal transact negotiate bargain haggle agree consent approve endorse sanction authorize permit license certify accredit validate legitimize legalize formalize standardize regularize normalize harmonize synchronize coordinate align integrate unify consolidate merge combine blend mix fuse weld join link connect attach affix fasten secure lock bolt screw nail glue tape staple clip pin hook latch buckle strap tie bind wrap coil loop knot twist braid plait weave interlace intertwine entangle entwine enmesh ensnare trap catch capture seize grasp grip clutch cling hold embrace hug cuddle snuggle nestle nuzzle caress pat stroke rub massage knead press squeeze pinch poke prod jab stab pierce puncture penetrate bore drill cut slice chop dice mince grate shred peel skin pare trim shear prune crop mow clip snip lop hack slash gash gouge carve sculpt mold shape form fashion craft create design engineer construct build assemble fabricate manufacture produce generate make do perform execute implement apply enforce administer regulate govern rule direct control manage supervise oversee coordinate organize plan strategize develop construct build assemble fabricate manufacture produce generate create invent innovate pioneer initiate launch commence begin start originate found establish institute inaugurate instigate promote advance boost enhance improve augment expand extend enlarge increase amplify intensify heighten elevate raise uplift inspire motivate encourage stimulate spur drive propel thrust push pull drag haul tow carry transport convey move shift relocate reposition transfer displace replace substitute exchange swap trade barter deal transact negotiate bargain haggle agree consent approve endorse sanction authorize permit license certify accredit validate legitimize legalize formalise standardise regularise normalise harmonise synchronise co-ordinate align integrate unify consolidate merge combine blend mix fuse weld join link connect attach affix fasten secure lock bolt screw nail glue tape staple clip pin hook latch buckle strap tie bind wrap coil loop knot twist braid plait weave interlace intertwine entangle entwine enmesh ensnare trap catch capture seize grasp grip clutch cling hold embrace hug cuddle snuggle nestle nuzzle caress pat stroke rub massage knead press squeeze pinch poke prod jab stab pierce puncture penetrate bore drill cut slice chop dice mince grate shred peel skin pare trim shear prune crop mow clip snip lop hack slash gash gouge carve sculpt mold shape form fashion craft create design engineer construct build assemble fabricate manufacture produce generate make do perform execute implement apply enforce administer regulate govern rule direct control manage supervise oversee co-ordinate organise plan strategise develop construct build assemble fabricate manufacture produce generate create invent innovate pioneer initiate launch commence begin start originate found establish institute inaugurate instigate promote advance boost enhance improve augment expand extend enlarge increase amplify intensify heighten elevate raise uplift inspire motivate encourage stimulate spur drive propel thrust push pull drag haul tow carry transport convey move shift relocate reposition transfer displace replace substitute exchange swap trade barter deal transact negotiate bargain haggle agree consent approve endorse sanction authorise permit licence certify accredit validate legitimise legalise formalised standardised regularised normalised harmonised synchronised co-ordinated aligned integrated unified consolidated merged combined blended mixed fused welded joined linked connected attached affixed fastened secured locked bolted screwed nailed glued taped stapled clipped pinned hooked latched buckled strapped tied bound wrapped coiled looped knotted twisted braided plaited woven interlaced intertwined entangled entwined enmeshed ensnared trapped caught captured seized grasped gripped clutched clung held embraced hugged cuddled snugged nestled nuzzled caressed patted stroked rubbed massaged kneaded pressed squeezed pinched poked prodded jabbed stabbed pierced punctured penetrated bored drilled cut sliced chopped diced minced grated shredded peeled skinned pared trimmed sheared pruned cropped mowed clipped snipped lopped hacked slashed gashed gouged carved sculpted moulded shaped formed fashioned crafted created designed engineered constructed built assembled fabricated manufactured produced generated made done performed executed implemented applied enforced administered regulated governed ruled directed controlled managed supervised overseen coordinated organised planned strategized developed constructed built assembled fabricated manufactured produced generated created invented innovated pioneered initiated launched commenced begun started originated founded established instituted inaugurated instigated promoted advanced boosted enhanced improved augmented expanded extended enlarged increased amplified intensified heightened elevated raised uplifted inspired motivated encouraged stimulated spurred driven propelled thrusted pushed pulled dragged hauled tower carried transported conveyed moved shifted relocated reposition transferred displaced replaced substituted exchanged swapped traded bartered dealt transacted negotiated bargained haggled agreed consent approved endorsed sanctioned authorised permitted licensed certified accredited validated legitimized legalized formalized standardized regularized normalized harmonized synchronized coordinated aligned integrated unified consolidated merged combined blended mixed fused welded joined linked connected attached affixed fastened secured locked bolted screwed nailed glued taped stapled clipped pinned hooked latched buckled strapped tied bound wrapped coiled loop knotted twisted braided plait woven interlaced intertwined entangled entwined enmeshed ensnared trapped caught captured seized grasp gripped clutched clung held embraced hugged cuddled snug nestled nuzzled caressed patted strok rubbed massaged kneaded pressed squeezed pinched poked prodd jabbed stabbed pierced punctured penetrated bored drilled cut sliced chopped diced minced grated shredded peeled skinned pared trimmed sheared pruned cropped mowed clipped snipped lopped hacked slashed gashed gouged carved sculpt mould shaped formed fashioned crafted created designed engineered constructed built assembled fabricated manufactured produced generated made done performed executed implemented applied enforced administered regulated governed ruled directed controlled managed supervised overse coordinated organis planned strategi developed constructed built assembled fabricated manufactured produced generated created invented innovated pioneered initiated launched commenced begun started originated founded established instituted inaugurated instig promoted advanced boosted enhanced improved augmented expanded extended enlarged increased amplified intensified heightened elevated raised uplift inspired motivated encouraged stimulated spurred driven propelled thrusted pushed pulled dragged hauled tower carried transported conveyed moved shifted relocated reposition transferred displaced replaced substituted exchanged swapped traded bartered dealt transacted negotiated bargained hagg agreed consente approved endorsed sanctioned authorised permitted licensed certified accredited validated legitimized legalized formalized standardized regularized normalized harmonized synchronized coordinated aligned integrated unified consolidated merged combined blended mixed fused welded joined linked connected attached affixed fastened secured locked bolted screwed nailed glued taped stapled clipped pinned hooked latched buckled strapped tied bound wrapped coiled loop knotted twisted braided plait woven interlaced intertwined entangled entwined enmeshed ensnared trapped caught captured seized grasp gripped clutched clung held embraced hugged cuddled snug nestled nuzzl caressed patted strok rubbed massaged kneaded pressed squeezed pinched pok punched jibbed stabbed pierced punctured penetrated bored drilled cut sliced chopped diced minced grated shredded peeled skinned pared trimmed sheared pruned cropped mowed clipped snipped lopped hacked slashed gashed gouged carved sculpt mould shaped formed fashioned crafted created designed engineered constructed built assembled fabricated manufactured produced generated made done performed executed implemented applied enforced administered regulated governed ruled directed controlled managed supervised oversaw coordinated organized planned strategied developed constructed built assembled fabricated manufactured produced generated created invented innovated pioneered initiated launched commenced begun started originated founded established instituted inaugurated instig promoted advanced boosted enhanced improved augmented expanded extended enlarged increased amplified intensified heightened elevated raised uplift inspired motivated encouraged stimulated spurred driven propelled thrusted pushed pulled dragged hauled tower carried transported conveyed moved shifted relocated reposition transferred displaced replaced substituted exchanged swapped traded bartered dealt transacted negotiated bargained hagg agreed consente approved endorsed sanctioned authorised permitted licensed certified accredited validated legitimized legalized formalized standardized regularized normalized harmoniz synchronized coordin aligned integrat unified consolid merged combin blended mixed fus welded joined linked connect attached affixed fastened secur locked bolted screwnailed gluetaped staplclippinnhooklatcbuclestrapptiboundwrappcoilloopknotttwistedbraidplaiwoveninterlacintertwinenanglentwineenmshensnartrappedcaughtcapturseizgraspgriptclutchclangheldembracehuggedcuddlingsuggnestlnuzzelcaresspatstrokrubmassagneakpresssqueezpinchpokeprodjstabpiercepuncpenetboredrillcutslchopdicmincgratshredpeelskinparetrimshpruncrpmowclipnsiphackslashgougcarvsulptmoldshapeformfashioncraftcreatdesignengineerconstructbuildassemblefabricmanufacturproducgeneratemakeperformexecuteimplementapplyadministerregulategovernrulectrolmanagesupervisovercoordinateorganplanstrategdevelopconstructbuildassemblefabricmanufacturproducgeneratemakeperformexecuteimplementapplyadministerregulategovernrulectrolmanagesupervisovercoordinateorganplanstrategdevelopconstructbuildassemblefabricmanufacturproducgeneratemakeperformexecuteimplementapplyadministerregulategovernrulectrolmanagesupervisovercoordinateorganplanstrategdevelopconstructbuildassemblefabricmanufacturproducgeneratemakeperformexecuteimplementapplyadministerregulategovernrulectrolmanagesupervisovercoordinateorganplanstrategdevelopconstructbuildassemblefabricmanufacturproducgeneratemakeperformexecuteimplementapplyadministerregulategovernrulectrolmanagesupervisovercoordinateorganplanstrategdevelopconstructbuildassemblefabricmanufacturproducgeneratemakeperformexecuteimplementapplyadministerregulategovernrulectrolmanagesupervisovercoordinateorganplanstrategdevelopconstructbuildassemblefabricmanufacturproducgeneratemakeperformexecuteimplementapplyadministerregulategovernrulectrolmanagesupervisovercoordinateorganplanstrategdevel</p>
