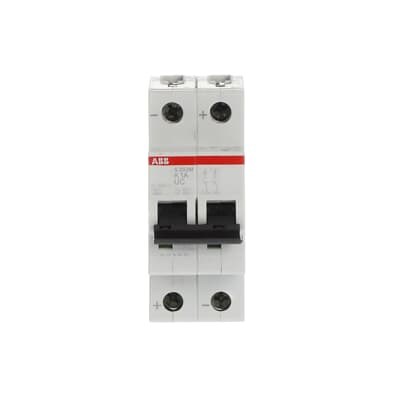

When selecting the right Miniature Circuit Breaker (MCB) for your industrial application, understanding the technical specifications is crucial. This MCB offers a robust solution with its reliable performance and compliance with international standards.
Designed for demanding environments, this MCB operates efficiently at a rated current of 1 A and supports a voltage range of 400/415 VAC. It showcases an impressive breaking capacity of 15 kA at 400 VAC, ensuring dependable protection against overcurrent conditions. The product adheres to IP20 degree of protection, safeguarding internal components from touch by fingers or objects larger than 12 mm in diameter.
The unit features a screw clamp terminal type, providing secure connections with a tightening torque of 2.8 N-m. Its compact dimensions—35 mm width, 88 mm height, and 69 mm depth—allow for easy integration into existing electrical panels without occupying excessive space.
Engineered to withstand harsh conditions, this MCB operates effectively within an ambient temperature range from -25°C to +55°C and can be stored safely between -40°C and +70°C. Thanks to its Curve Type K characteristic, it is suitable for applications where moderate inrush currents are expected.
In terms of safety certifications, this product meets CSA 22.2 No. 235, IEC/EN 60947-2, and UL 1077 standards—ensuring compliance with essential safety regulations across various regions. Additionally, it boasts an impulse voltage rating of up to 4 kV and a short circuit capacity rated at 10 kA.
The housing comes in RAL 7035 grey—a neutral tone that blends seamlessly into most industrial settings—and belongs to the S200MUC collection known for its reliability in challenging applications.
With these specifications in mind, this MCB proves itself as a versatile choice tailored for industrial use cases requiring consistent performance under varied environmental conditions while maintaining adherence to global safety standards.
