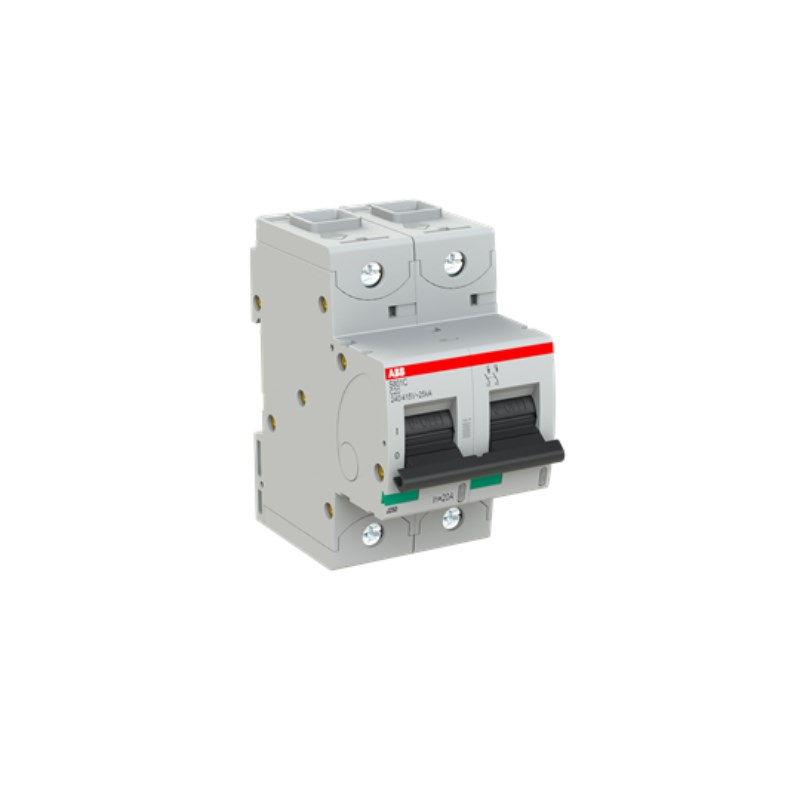

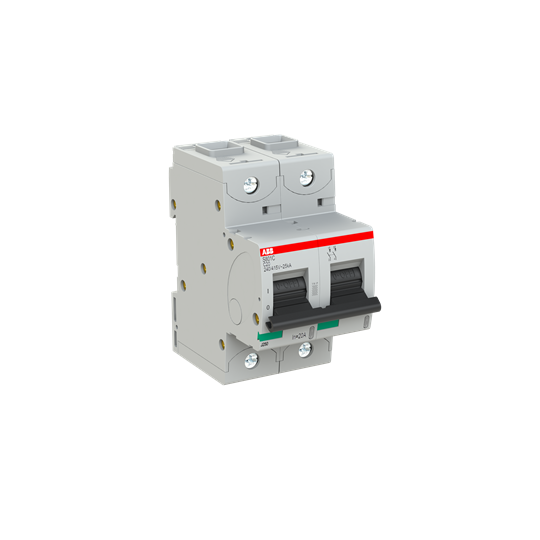

ABB S802CC20 High Performance Miniature Circuit Breaker 25kA at 400VAC 2-P 20A 230/400VAC C-Curve

Product Code: S802CC20

  • Rated current of 20 A for reliable performance
  • High breaking capacity of 25 kA at 400 VAC
  • Dual pole design for enhanced protection
  • Screw clamp terminals with 3.5 N-m torque
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 50/50
Cable Cross Section - Flexible (mm²) Top/Bottom - 70/70
Dimensions (mm) 95H x 82.5D x 54W
No. of Poles 2P
Pole Width (mm) 27
Power Loss (W) 3.5/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 25
Pollution Degree 3
Rated Current (A) 20
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 500
Rated Impulse Withstand Voltage (kV) 8
Rated Operational Voltage DC (V) 250
Rated Short-Circuit Capacity - Icn (kA) 15
Rated Operational Voltage AC (V) 230/400
Breaking Capacity 400V AC - Icu (kA) 25
Maximum Operational Voltage DC (V) 250
Maximum Operational Voltage AC (V) 440
Minimum Operational Voltage AC (V) 12
Rated Voltage AC (V) 400
Family S800C
AC Voltage (V) 230/400
DC Voltage (V) 250
Icn-Rated Short Circuit Capacity (kA) 15
Inc-Rated Conditional Short Circuit Capacity (kA) 25
Impulse Withstand Voltage (kV/1.2µS) 8
Poles 2P
Breaking Capacity (kA) 25 @400 V AC
Current Rating (A) 20
Product Type High Performance Circuit breaker
Brand ABB
Series S800C
Ambient Temperature -25 to 60 deg C Operation, -40 to 70 deg C Storage
Application Commercial and Industrial
Breaking Capacity 25 kA at 400 VAC
Cable Cross Section 50 sq-mm Top, 50 sq-mm Bottom
Collection S800C
Curve Type C
Degree of Pollution IP3
Degree of Protection IP20
Depth 82.5 mm
Electrical Durability 10000 Cycles
Height 95 mm
Housing Colour RAL 7035 Grey
Housing Material Insulation group I, RAL 7035
Impulse Voltage 8 kV
Mounting Type DIN Rail
Number of Poles 2
Pole Width 27 mm
Power Loss 3.5 W
Rated Current 20 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 500 V
Rated Short Circuit Current 25 kA
Rated Voltage 230/400 VAC
Short Circuit Capacity 15 kA
Standards and Approvals IEC/EN 60947-2, IEC/EN 60898-1, UL 1077
Terminal Type Screw Clamp
Tightening Torque 3.5 N-m
Trip Curve C Curve
Width 54 mm

Description

The ABB Miniature Circuit Breaker is a high-performance device designed for commercial and industrial applications. With a 25kA breaking capacity at 415VAC and 10kA at 250VDC, it provides reliable protection against short circuits and thermal overload. This 2-pole circuit breaker has a current rating of 20A and features a C curve. It has a compact design with a pole width of 27mm, making it suitable for various installation requirements. Trust ABB for quality and performance in circuit protection solutions.
