When it comes to selecting a reliable Miniature Circuit Breaker (MCB) for your commercial or industrial applications, the S800C series offers a robust solution that meets stringent electrical standards. Designed with precision and durability in mind, this MCB is engineered to ensure safety and efficiency in various electrical installations.

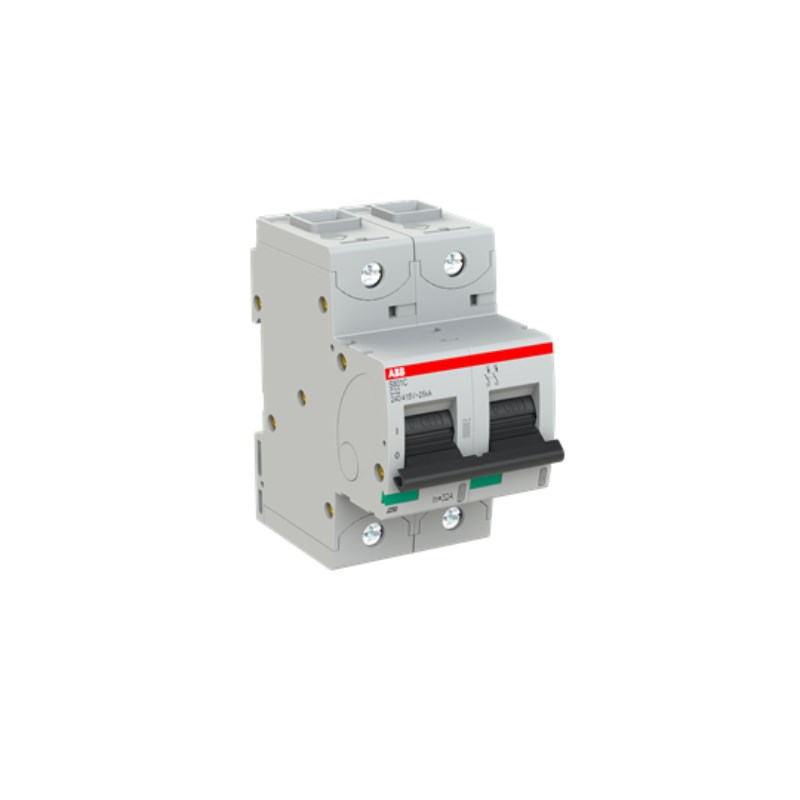

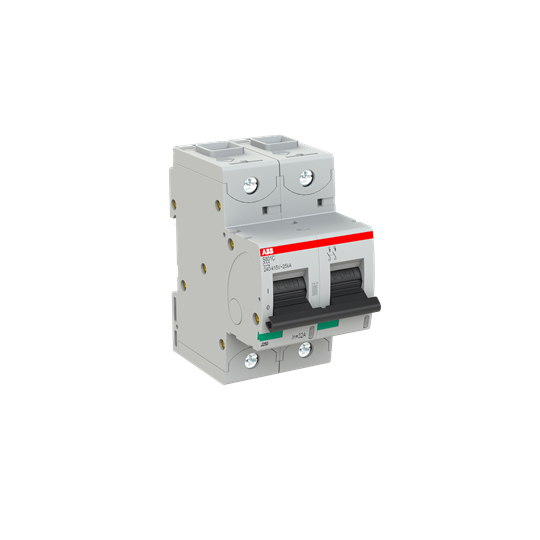

The S800C MCB stands out with its rated current of 32 A, making it suitable for handling moderate load requirements. It operates effectively within a rated voltage range of 230/400 VAC, supported by an impressive breaking capacity of 25 kA at 400 VAC. This ensures the device can safely interrupt fault currents without compromising system integrity.
For environments where reliability is paramount, this MCB boasts an electrical durability of up to 10,000 cycles. Its rated impulse withstand voltage reaches up to 8 kV, providing enhanced protection against transient overvoltages often caused by lightning strikes or switching surges.
Measuring 54 mm in width, 95 mm in height, and with a depth of 82.5 mm, the compact design allows easy integration into existing setups without occupying excessive space on DIN rail mounts. The unit's housing is colored RAL 7035 Grey for a professional appearance that blends seamlessly with other equipment.
The S800C features a screw clamp terminal type capable of accommodating cable cross sections up to 50 sq-mm both at the top and bottom connections. With a tightening torque specification of 3.5 N-m, secure installation is ensured while maintaining optimal connectivity.
This MCB conforms to international standards such as IEC/EN 60947-2 and IEC/EN 60898-1 as well as UL1077 approvals which underline its quality and adherence to global safety norms. Furthermore, it has been designed with IP20 degree protection against solid objects larger than 12 mm while offering IP3 pollution degree resistance—ideal for challenging industrial settings.
Designed for versatility across different climates, this product operates efficiently between -25°C to +60°C with storage capabilities extending from -40°C up to +70°C ensuring performance stability under varying environmental conditions.
The curve type C characteristic provides adequate tripping behavior suited towards general-purpose applications where moderate inrush currents are expected during operation start-up phases like motor loads typically found within commercial setups or light industry sectors.
In summary; if you're seeking an effective solution combining high performance coupled alongside compliance assurance then look no further than what’s provided through our dependable choice from Series: S800C collection!
