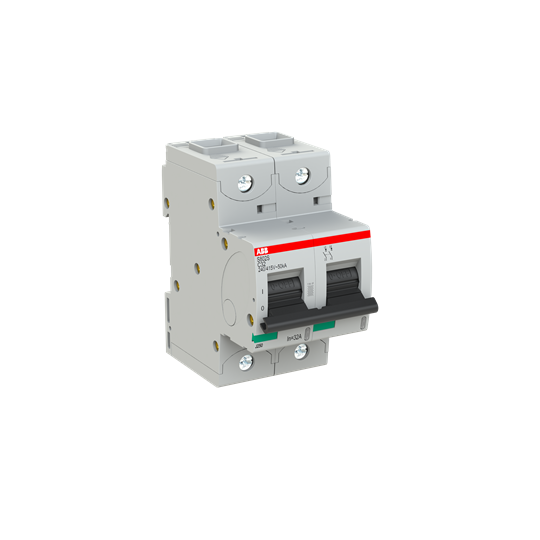

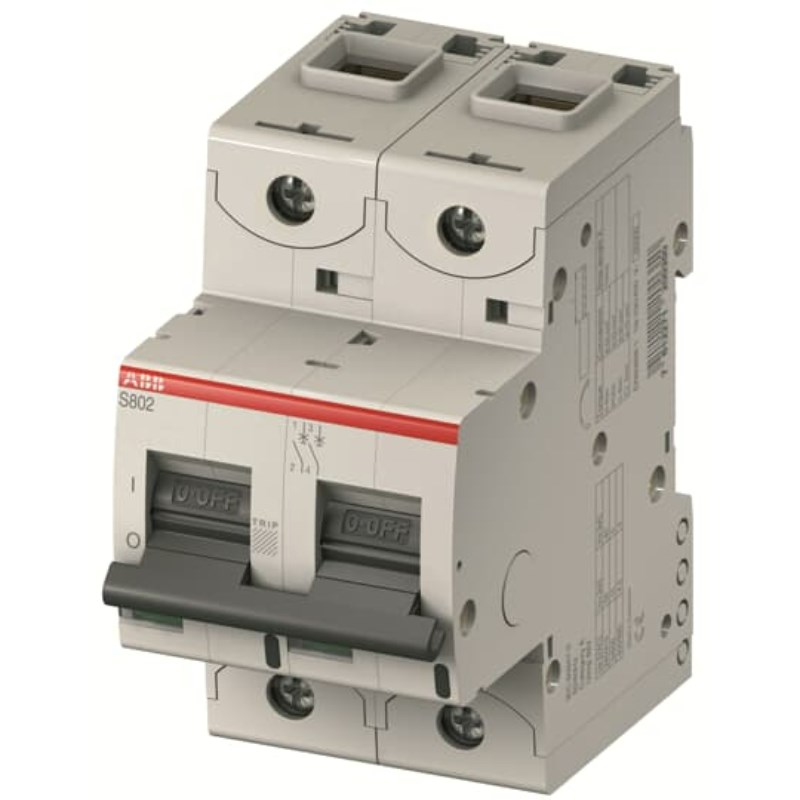

Product Code: S802SC32

32 A MCB with high breaking capacity of 50 kA
Suitable for 400/690 VAC systems, IP20 protection
Meets IEC/EN and UL standards for safety
Compact design: 54 mm wide, DIN rail mountable
Durable with electrical lifespan of 10,000 cycles

Specifications

Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 50/50
Cable Cross Section - Flexible (mm²)	Top/Bottom - 70/70
Dimensions (mm)	95H x 82.5D x 54W
No. of Poles	2P
Pole Width (mm)	27
Power Loss (W)	3.2/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	50
Pollution Degree	3
Rated Current (A)	32
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	690
Rated Impulse Withstand Voltage (kV)	8
Rated Operational Voltage DC (V)	250
Rated Short-Circuit Capacity - Icn (kA)	25
Rated Operational Voltage AC (V)	400/690
Breaking Capacity 400V AC - Icu (kA)	50
Maximum Operational Voltage DC (V)	250
Maximum Operational Voltage AC (V)	690
Rated Voltage AC (V)	400
Poles	2P
Breaking Capacity (kA)	50 @400 V AC
Current Rating (A)	32
Family	S800S
AC Voltage (V)	400/690
DC Voltage (V)	250
Icn-Rated Short Circuit Capacity (kA)	25
Inc-Rated Conditional Short Circuit Capacity (kA)	50
Impulse Withstand Voltage (kV/1.2µS)	8
Product Type	High Performance Circuit breaker
Brand	ABB
Series	S800S
Application	Commercial and Industrial
Breaking Capacity	50 kA at 400 VAC
Cable Cross Section	50 sq-mm Top, 50 sq-mm Bottom
Collection	S800S
Curve Type	C
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	82.5 mm
Electrical Durability	10000 Cycles
Height	95 mm
Housing Colour	RAL 7035 Grey
Housing Material	Insulation group I, RAL 7035
Impulse Voltage	8 kV
Mounting Type	DIN Rail
Number of Poles	2
Pole Width	27 mm
Power Loss	3.2 W
Rated Current	32 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	690 V
Rated Short Circuit Current	50 kA
Rated Voltage	400/690 VAC
Short Circuit Capacity	25 kA
Standards and Approvals	IEC/EN 60947-2, IEC/EN 60898-1, UL 1077
Tightening Torque	3.5 N-m
Trip Curve	C Curve
Width	54 mm

Description

The ABB High Performance Miniature Circuit Breaker is designed for commercial and industrial use. It offers 2 pole protection with a 32A current rating. With a C curve, it provides reliable protection against short circuits and thermal overload. The circuit breaker has a pole width of 27mm. It can handle high currents, with a breaking capacity of 50kA at 415VAC and 30kA at 250VDC. Trust ABB for quality and performance in circuit protection.
