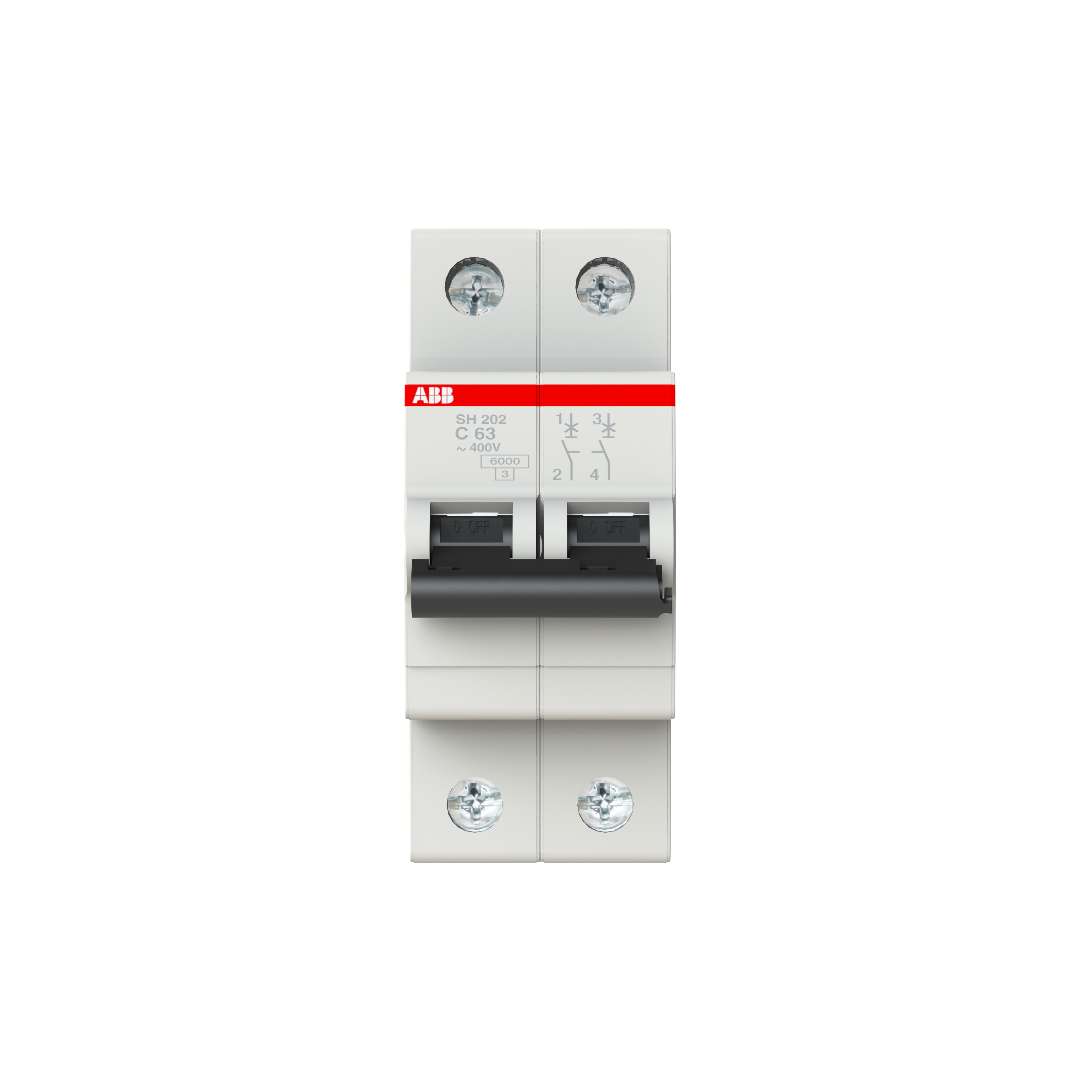

Specifications

No. of Poles	2P
Power Loss (W)	9.6
Pollution Degree	2
Rated Current (A)	63
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	440
Rated Impulse Withstand Voltage (kV)	4
Dimensions (mm)	35W x 88H x 69D
Weight (kg)	0.25
Family	SH200
Icn-Rated Short Circuit Capacity (kA)	6
Inc-Rated Conditional Short Circuit Capacity (kA)	6
Rated Operational Voltage (V)	400
Product Type	Miniature Circuit Breaker
Brand	ABB
Actuator Type	Toggle
Ambient Temperature	-25 to 55 deg C Operation, -40 to 70 deg C Storage
Breaking Capacity	6 kA
Collection	SH200
Curve Type	C
Degree of Pollution	IP2
Degree of Protection	IP20
Depth	69 mm
Electrical Durability	10000 Cycles
Height	88 mm
Housing Colour	RAL 7035 Grey
Mounting Type	DIN Rail
Number of Poles	2
Power Loss	9.6 W
Rated Current	63 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	440 V
Rated Voltage	400 V
Standards and Approvals	IEC/EN 60898-1
Terminal Type	Screw Clamp
Tightening Torque	2 N-m
Trip Curve	C Curve
Weight	0.25 kg
Width	35 mm
