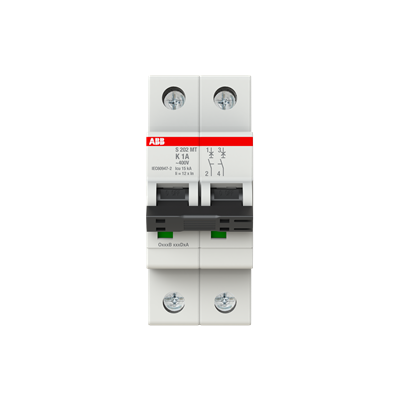

ABB S202MT-K1 Miniature Circuit Breaker 11.3kA 2-P 1A 400VAC K-Curve

Product Code: S202MT-K1

  • Rated for 1 A current, 400 VAC voltage
  • Breaking capacity of 11.3 kA
  • Screw clamp terminals with 2.8 N-m torque
  • Fits on DIN Rail, IP20 protection
  • Compliant with IEC/EN 60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Miniature Circuit Breaker
Brand ABB
Ambient Temperature -25 to 55 deg C Operation, -40 to 70 deg C Storage
Breaking Capacity 11.3 kA
Curve Type K
Degree of Pollution IP3
Degree of Protection IP20
Depth 69 mm
Height 88 mm
Housing Colour RAL 7035 Grey
Mounting Type DIN Rail
Number of Poles 2
Power Loss 2.6 W
Rated Current 1 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Voltage 400 VAC
Short Circuit Capacity 10 kA
Standards and Approvals IEC/EN 60947-2
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Width 35 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
