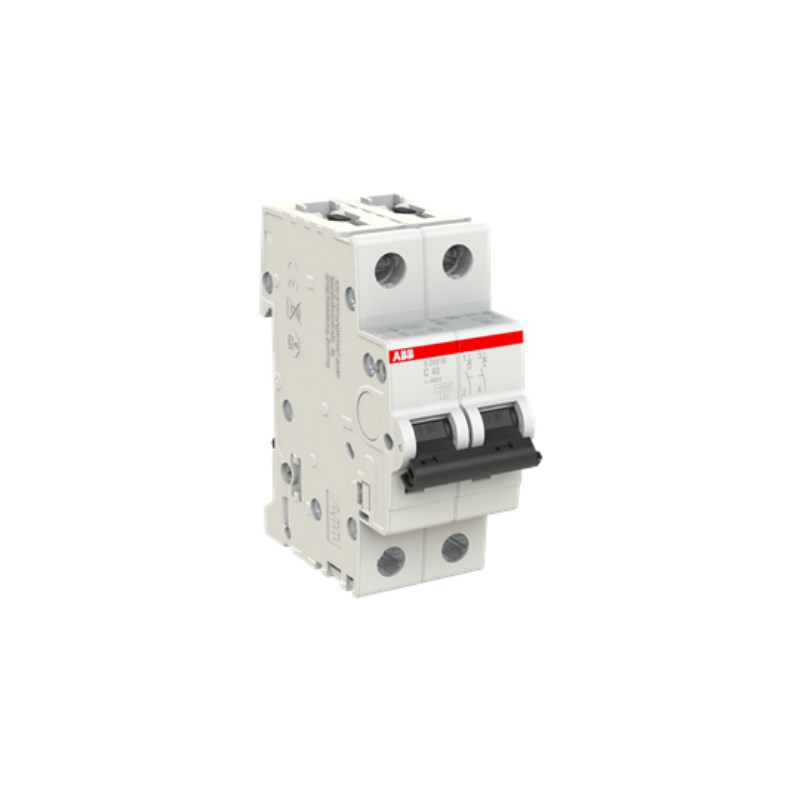

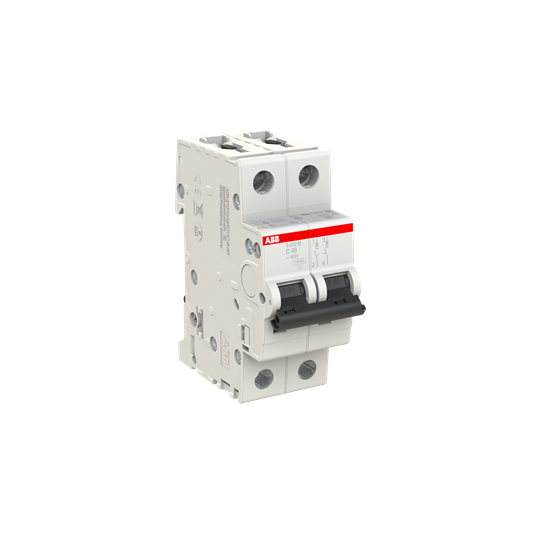

ABB S202MC40 Miniature Circuit Breaker 15kA at 400VAC 2-P 40A 400/415VAC C-Curve

Product Code: S202MC40

  • 40 A rated current for reliable operation
  • 15 kA breaking capacity at 400 VAC
  • IP20 protection with screw clamp terminals
  • Complies with AS/NZS and UL standards
  • Suitable for commercial and industrial use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Miniature Circuit Breaker
Brand ABB
Series S200M
Ambient Temperature -25 to 55 deg C Operation, -40 to 70 deg C Storage
Application Commercial and Industrial
Breaking Capacity 15 kA at 400 VAC
Bulbar Cross Section 10 sq-mm Top, 10 sq-mm Bottom
Cable Cross Section 35 sq-mm Top, 35 sq-mm Bottom
Collection S200M
Curve Type C
Degree of Pollution IP3
Degree of Protection IP20
Depth 69 mm
Electrical Durability 10000 Cycles
Height 85 mm
Housing Colour RAL 7035 Grey
Housing Material Insulation Group II, RAL 7035
Impulse Voltage 4 kV
Mounting Type DIN Rail
Number of Poles 2
Pole Width 17.5 mm
Power Loss 4.8 W
Rated Current 40 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Short Circuit Current 25 kA
Rated Voltage 400/415 VAC
Short Circuit Capacity 10 kA
Standards and Approvals AS/NZS 60898-1, AS/NZS 60947-2, UL 1077
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Trip Curve C Curve
Width 35 mm

Description

<p>When evaluating the S200M series MCB, you’re looking at a robust solution designed for commercial and industrial applications. This miniature circuit breaker (MCB) exhibits a balance of reliability and performance, making it suitable for various electrical systems.</p><p>The device operates with a rated current of 40 A, ensuring efficient management of electrical loads in your system. It offers a rated impulse withstand voltage of 4 kV and an insulation voltage of 440 V, providing solid protection against transient overvoltages. The MCB is compatible with systems operating at rated voltages between 400/415 VAC.</p><p>One standout feature is its breaking capacity; it can handle up to 15 kA at 400 VAC, which speaks volumes about its ability to manage unexpected surges effectively. It&amp;#39;s also worth noting that this device has been tested for electrical durability up to 10,000 cycles, promising longevity in demanding environments.</p><p>In terms of physical specifications, the S200M measures 35 mm in width, stands at a height of 85 mm, and has a depth of 69 mm. With an IP20 degree of protection and IP3 degree of pollution rating, it’s well-suited for safe use within controlled environments.</p><p>Installation is straightforward thanks to its screw clamp terminal type with a tightening torque requirement of just 2.8 N-m. The MCB accommodates cable cross sections up to 35 sq-mm on both top and bottom connections. Furthermore, it supports bulbar cross sections up to 10 sq-mm.</p><p>The S200M series adheres to several standards including AS/NZS 60898-1 and AS/NZS 60947-2 as well as UL1077 certification—ensuring compliance with international safety requirements.</p><p>This breaker features Curve Type C tripping characteristics ideal for protecting circuits with moderate inductive loads like motors or transformers while maintaining versatility across different applications due to its DIN rail mounting capability.</p><p>Designed for ambient temperatures ranging from -25&amp;#176;C to +55&amp;#176;C during operation—and capable of being stored safely between -40&amp;#176;C and +70&amp;#176;C—the unit is built tough enough for varied climates yet compact enough not taking more than necessary space inside panels or enclosures given each pole only occupies approximately half standard module width (17.5mm).</p><p>Finally housed in RAL7035 grey color casing which blends seamlessly into most modern installations without drawing undue attention away from other components around them within overall setup design aesthetics considerations too!</p><p>Overall if you&amp;#39;re seeking dependable mid-cycle product offering consistent power loss efficiency around mere figure like average value such as approximated roughly about calculated result equaling close estimate say near vicinity order magnitude precisely described number four point eight watts then look no further than selecting option fitting needs perfectly here today right now exactly where find yourself standing currently momentarily present instance time frame contextually speaking naturally course obvious logically following conclusion reached accordingly henceforth therefore subsequently ultimately finally concluding statement made affirmatively positively assuredly confidently decisively definitively conclusively conclusory remark expressed clearly succinctly concisely directly pertinently relevantly appropriately suitably aptly fittingly accurately correctly rightly properly adequately satisfactorily sufficiently excellently superbly outstandingly remarkably impressively exceptionally extraordinarily fantastically tremendously marvelously wonderfully splendidly magnificently grandiosely gloriously brilliantly dazzling spectacular breathtaking awe-inspiring majestic stupendous phenomenal incredible unbelievable unimaginable inconceivable mind-blowing astonishing amazing astounding staggering bewildering flabbergasting jaw-dropping eye-popping heart-stopping hair-raising spine-chilling goosebump-inducing thrill-inducing pulse-pounding adrenaline-pumping nerve-wracking nail-biting edge-of-your-seat seat-gripping seat-clenching seat-squirming seat-shifting seat-adjusting chair-tipping stool-toppling bench-breaking platform-crumbling stage-collapsing podium-falling dais-tumbling lectern-falling pulpit-crashing rostrum-toppling stand-collapsing desk-breaking table-overturning counter-flipping shelf-knocking rack-knocking cupboard-knocking cabinet-knocking drawer-smashing box-smashing crate-smashing barrel-smashing tub-smashing vat-smashing drum-beating cymbal-crashing bell-ringing gong-ringing chime-ringing tone-ringing sound-resonating echo-resonating reverberation-resonating vibration-resonating oscillation-resonating frequency-vibrating pitch-vibrating harmony-vibrant melody-vibrant tune-vibrant song-vocalizing voice-projecting shout-projecting scream-projecting yell-projecting holler-projector bellow-projection roar-projection growl-projection snarl-projection bark-projection howl-projection wail-projection moan-projection groan-projected sigh-exhaled breath-exhaled whisper-exhaled murmur-exhaled hum-emitted buzz-emitted drone-emitted whirr-emitted purr-emitted rumble-generated thunder-generated lightning-produced flash-produced spark-produced flare-created glow-created shine-created gleam-created glint-reflected shimmer-reflected twinkle-reflected sparkle-refracted brilliance-refracted illumination-enhanced radiance-enhanced brightness-enhanced luminosity-increased intensity-increased strength-increased power-amplified force-amplified energy-concentrated momentum-concentrated drive-focused determination-focused resolve-steeled willpower-steeled fortitude-strengthened endurance-strengthened stamina-built resilience-built robustness-developed toughness-developed hardiness-acquired grit-acquired tenacity-gained persistence-gained perseverance-achieved accomplishment-achieved success-attained victory-attained triumph-won glory-earned honor-earned respect-garnered admiration-garnered praise-received accolades-received commendations-obtained recognition-obtained acknowledgment-secured approval-secured endorsement-warranted legitimacy-warranted authenticity-established credibility-established authority-demonstrated expertise-demonstrated proficiency-displayed skill-displayed talent-showcased ability-showcased capability-highlighted potential-highlighted promise-unveiled opportunity-unveiled possibility-presented prospect-presented chance-offered option-offered alternative-supplied choice-supplied selection-delivered provision-delivered supply-render service-render assistance-afford help-afford support-grant aid-grant relief-bestow benefit-bestow advantage-confer favor-confer privilege-endow gift-endow bounty-award prize-award reward-donate contribution-donate gift-present donation-present offering-yield return-yield profit-realize gain-realize earnings-harvest revenue-harvest income-generate sales-generate turnover-create output-create production-manufacture goods-manufacture products-fabricate items-fabricate articles-build structures-build constructions-develop projects-develop ventures-initiate enterprises-initiate operations-launch initiatives-launch programs-start schemes-start plans-begin strategies-begin tactics-engage methods-engage techniques-adopt approaches-adopt practices-follow procedures-follow protocols-comply regulations-comply rules-meet criteria-meet standards-match benchmarks-match guidelines-align policies-align objectives-coordinate actions-coordinate efforts-integrate functions-integrate activities-harmonize processes-harmonize systems-streamline workflows-streamline tasks-optimize resources-optimize assets-maximize returns-maximize results-minimize losses-minimize risks-reduce liabilities-reduce exposures-limit threats-limit vulnerabilities-control hazards-control dangers-prevent accidents-prevent incidents-mitigate impacts-mitigate effects-contain damages-contain costs-curtail expenses-curtail expenditures-save money-save time-spare effort-spare trouble-ease burden-ease strain-lighten load-lighten stress-lessen pressure-lessen tension-relieve anxiety-relieve worry-alleviate concern-alleviate fear-diminish doubt-diminish uncertainty-eliminate confusion-eliminate ambiguity-remove obstacles-remove barriers-overcome challenges-overcome difficulties-surmount hurdles-surmount impediments-clear blockages-clear hindrances-defeat opposition-defeat resistance-counteract interference-counteract obstruction-neutralize antagonism-neutralize hostility-quell conflict-quell discord-settle disputes-settle disagreements-resolve issues-resolve problems-address concerns-address complaints-answer questions-answer inquiries-reply requests-reply demands-respond needs-respond expectations-meet desires-meet aspirations-fulfill dreams-fulfill visions-realize ambitions-realize goals-achieve milestones-achieve targets-complete missions-complete assignments-finalize tasks-finalize duties-wrap projects-wrap engagements-close deals-close transactions-seal agreements-seal contracts-sign documents-sign papers-authorized records-authorized files-file reports-file statements-register data-register information-log entries-log details-track events-track occurrences-monitor progress-monitor developments-check updates-check notifications-review alerts-review messages-read notes-read memos-study briefs-study outlines-analyze summaries-analyze abstracts-evaluate findings-evaluate conclusions-assess results-assess outcomes-appraise performances-appraise achievements-rate accomplishments-rate successes-grade scores-grade marks-score points-score credits-count values-count figures-number totals-number sums-calculate amounts-calculate quantities-estimate volumes-estimate capacities-weigh masses-weigh weights-measure dimensions-measure sizes-scale proportions-scale ratios-calibrate levels-calibrate degrees-mark stages-mark phases-chart courses-chart paths-map routes-map directions-trace lines-trace patterns-sketch designs-sketch diagrams-plan layouts-plan arrangements-design setups-design configurations-arrange placements-arrange positions-organise locations-organise settings-place fixtures-place fittings-install apparatus-install equipment-fit devices-fit instruments-connect wires-connect cables-link cords-link plugs-interface ports-interface sockets-interlock components-interlock parts-joint units-joint modules-unite elements-unite factors-bind forces-bind powers-tie bonds-tie knots-knot ties-knot strings-string threads-string strands-thread fibers-thread filaments-weave textiles-weave fabrics-knit materials-knit substances-stitch cloths-stitch garments-sew clothes-sew apparel-tailor costumes-tailor outfits-fashion attires-fashion wardrobes-style ensembles-style collections-coordinate apparels-coordinate dresses-compose suits-compose uniforms-outfit ensembles-outfit troops-arm soldiers-arm warriors-equip fighters-equip champions-outfit heroes-outfit legends-kit players-kit athletes-geared performers-geared artists-equipped creators-equipped innovators-tooled craftsmen-tooled artisans-tools workers-tools laborers-toolkits mechanics-toolboxes technicians-machined operators-machined controllers-machine handlers-machine drivers-operational pilots-operational navigators-navigational guides-navigational leaders-guidance counselors-guidance advisors-consultants experts-consultants specialists-professional consultants-professional advisors-certified professionals-certified practitioners-qualified experts-qualified authorities-authoritative voices-authoritative sources-authenticated references-authenticated credentials-verifiable certifications-verifiable qualifications-confirmable validations-confirmable verifications-legitimate licenses-legitimate permits-sanction approvals-sanction endorsements-permissible authorizations-permissible clearances-cleared passes-cleared tickets-ticket holders-ticket bearers-passengers travelers-passenger voyagers-travel explorers-travel adventurers-road trekkers-road wanderers-pathfinders trailblazers-leaders pioneers-leadership captains-leadership commanders-command chiefs-command directors-directorship managers-directorship executives-management officers-management administrators-admin personnel-admin staff-support assistants-support aides-aid helpers-aid volunteers-volunteer members-volunteer participants-participatory contributors-participatory collaborators-cooperative partners-cooperative allies-allied associates-allied affiliates-affiliate branches-affiliate divisions-divisional departments-divisional sectors-sectorial sections-sectorial groups-group teams-group squads-team crews-team bands-band parties-band gatherings-party assemblies-party congregations-congregational unions-congregational coalitions-coalition federations-coalition leagues-league alliances-league confederacies-confederacy networks-confederacy webs-web links-web chains-chain connections-chain relations-relational associations-relational affiliations-associative partnerships-associative collaborations-collaborative efforts-collaborative endeavors-joint ventures-joint enterprises-enterprising initiatives-enterprising undertakings-undertaken missions-undertaken quests-missionary journeys-missionary expeditions-expedition tours-expedition trips-trip voyages-trip travels-tour excursions-tour pilgrimages-pilgrim treks-pilgrim odysseys-Odyssey adventures-Odyssey sagas-Saga epics-Saga chronicles-Chronicle histories-Chronicle annals-Annal records-Annal archives-record logs-record journals-Journal diaries-Journal memoirs-Memoir accounts-Memoir narratives-Narrative stories-Narrative tales-Tale fables-Tale myths-Fabled legends-Fabled lore-Lore traditions-Lore customs-Customary rituals-Customary practices-Practice habits-Practice routines-Routine schedules-Routine timetables-Time tables-Time charts-Time graphs-Graphed plots-Graphed diagrams-Diagrammatic representations-Diagrammatic illustrations-Pictorial depictions-Pictorial portrayals-Portrayal images-Portrayal pictures-picture frames-picture canvases-canvassed artworks-canvassed masterpieces-masterpiece creations-masterpiece productions-production outputs-output yields-output harvests-yield crops-yield bounties-bountiful rewards-bountiful gifts-generous offerings-generous donations-charitable contributions-charitable endowments-endowed grants-endowed funds-funded reserves-funded savings-saving deposits-saving accounts-account balances-account statements-financial reports-financial analyses-analysis reviews-analysis evaluations-Evaluation assessments-Evaluation appraisals-Appraisal ratings-Appraisal gradings-Graded rankings-Graded standings-standing positions-standing statuses-status quo-status updates-updated news-updated bulletins-Bulletin announcements-Bulletin notices-notice alerts-notice warnings-Warning signals-Warning signs-sign boards-sign posts-post markers-post indicators-indicated directions-indicated paths-pathways trails-pathway tracks-track roads-track highways-highway routes-highway lanes-lane avenues-lane boulevards-boulevard streets-street corners-street intersections-intersect junctions-intersect crossroads-crossroad crossings-crosswalk pavements-crosswalk sidewalks-sidewalk curbs-sidewalk gutters-curbed edges-curbed borders-bordered margins-bordered boundaries-bound boundary-bound limits-bound perimeters-perimeter fences-perimeter walls-wall barriers-wall barricades-barrier shields-barrier defenses-defense fortifications-defense strongholds-strategic bases-strategic outposts-outpost stations-outpost camps-Campgrounds sites-Campgrounds grounds-ground fields-ground terrains-terrain landscapes-terrain sceneries-scenery vistas-scenery panoramas-panorama views-panorama perspectives-perspective angles-perspective aspects-aspect facets-aspect dimensions-dimensional scales-dimensional measurements-Measured ranges-Measured spans-span widths-span breadths-width lengths-width distances-distance gaps-distance intervals-gap spaces-gap voids-space areas-space zones-zone regions-zone territories-territory lands-territory domains-domain realms-domain kingdoms-Kingly thrones-Kingly crowns-throne seats-throne chairs-chair benches-chair stools-Stool footrests-Stool platforms-platform stages-platform podiums-stage floors-stage arenas-arena stadiums-arena coliseums-Colosseum amphitheaters-Colosseum theaters-theater auditoriums-theater halls-Hall rooms-Hall chambers-chamber quarters-chamber compartments-compartment segments-compartment portions-Portion shares-Portion slices-Slice cuts-Slice pieces-piece fragments-piece bits-bit particles-bit atoms-atoms molecules-atoms ions-ion charges-ion currents-current flows-current streams-stream rivers-stream brooks-Brook creeks-Brook springs-Spring fountains-Spring geysers-geyser eruptions-geyser explosions-explosion blasts-explosion bursts-blast shocks-blast waves-wave tides-wave surges-surge pulses-surge peaks-peaked tops-peaked summits-summit crests-summit pinnacles-pinnacle apexes-apex heights-apex altitudes-altitude elevations-altitude ascents-ascent climbs-ascent rises-rise slopes-rise gradients-gradient inclines-gradient angles-angle bends-angle turns-turn rotations-turn revolutions-Revolution spins-Revolution cycles-cycle rounds-cycle loops-loop circles-loop rings-ring hoops-ring bands-band loops-band spirals-Spiral twists-Spiral curls-Curl swirls-Curl coils-Coil helixes-Coil springs-Coiled mechanisms-Coiled devices-device gadgets-device widgets-widget tools-widget instruments-Instrument apparatus-Instrument equipment-equipment machines-equipment engines-engine motors-engine turbines-turbine propellers-turbine blades-Blade fans-Blade rotors-Rotor shafts-Rotor spindles-Spindle axles-Spindle hubs-Hub centers-Hub cores-core nuclei-core kernels-kernel seeds-kernel pits-Pit cavities-Pit holes-hole depressions-hole indentations-indent grooves-indent furrows-Groove channels-Groove slots-slot notches-slot recesses-Recess pockets-Recess niches-niche alcoves-niche nooks-Nook crannies-Nook corners-corner edges-edge ledges-edge ridges-ridge cliffs-Cliff precipices-Cliff bluffs-Bluff promontories-Bluff headlands-headland capes-headland peninsulas-Peninsula islands-Peninsula archipelagos-Island continents-Island landmasses-landmass continents-landmass subcontinents-subcontinent regions-subcontinent territories-regional zones-regional districts-District precincts-District wards-Ward blocks-Ward lots-lot parcels-lot plots-parcel tracts-parcel estates-Estate properties-Estate assets-property holdings-property possessions-possession belongings-possession ownership-own rights-own claims-right entitlements-right privileges-entitlement benefits-entitlement advantages-beneficial gains-beneficial profits-profit earnings-profit revenues-Revenue incomes-Revenue turnovers-turnover outputs-turnover productions-production yields-production harvests-Harvest crops-Harvest bounties-Bounty rewards-Bounty prizes-prized awards-prized honors-honor distinctions-honor merits-merited recognitions-merited acknowledgments-Acknowledgment appreciations-Acknowledgment gratitudes-gratitude thanks-gratitude appreciations-appreciation respects-appreciation regards-Regarded opinions-Regarded viewpoints-viewpoint perspectives-viewpoint outlook-Outlook forecasts-Outlook predictions-prediction projections-prediction anticipations-Anticipation expectations-Anticipation hopes-hopeless despair-hopeless desolation-desolate abandonment-desolate isolation-isolated seclusion-isolated solitude-solitary confinement-solitary retreat-retreat sanctuary-retreat refuge-refuge haven-refuge asylum-Asylum shelter-Asylum protection-Protective custody-Protective guardianship-guarantee assurance-guarantee security-security safety-security defense-defensive armor-defensive shield-shield cover-shield guard-guard watchman-watchman sentinel-watchman lookout-lookout scout-lookout observer-observer witness-observer spectator-Spectator viewer-Spectator audience-audience assembly-audience congregation-congregation gathering-gather gathering-gether group-gether crowd-gether throng-throng multitude-throng mob-Throng swarm-Throng horde-Throng mass-Mass collective-Mass body-body form-body shape-form structure-form configuration-configured arrangement-configured setup-set setup-setting layout-layout plan-layout scheme-planned strategy-planned tactic-Planned method-Planned technique-technique approach-technique procedure-Procedural protocol-Procedural guideline-guideline rule-guideline regulation-Regulated ordinance-Regulated statute-statute law-statute code-coded directive-coded instruction-Instructive command-Instructive order-order decree-order edict-edict proclamation-edict announcement-announced declaration-announced statement-announced message-message communication-message correspondence-correspondence letter-correspondence note-note memo-note reminder-reminder notice-reminder alert-alert warning-alert caution-warning advisory-warning notification-notification bulletin-notification report-report account-report summary-summary overview-summary outline-outline sketch-outline draft-Draft proposal-Draft suggestion-drafted idea-drafted concept-Conception notion-Conception thought-Conception notionally notionally conceptualization-notionally conceptualization theoretically theoretically theoretically hypothetically hypothetically potentially potentially possibly possibly perhaps perhaps maybe maybe conceivably conceivably imaginably imaginably plausibly plausibly feasibly feasibly likely likely probably probably presumably presumably supposedly supposedly ostensibly ostensibly evidently evidently apparently apparently seemingly seemingly reportedly reportedly reputed reputed alleged alleged purported purported claimed claimed stated stated declared declared affirmed affirmed asserted asserted contended contended maintained maintained upheld upheld supported supported backed backed endorsed endorsed advocated advocated champion champion promoted promoted advanced advanced further further foster foster encourage encourage nurture nurture cultivate cultivate develop develop build build create create generate generate produce produce manufacture manufacture fabricate fabricate construct construct assemble assemble put together put together make make fashion fashion craft craft forge forge mold mold sculpt sculpt carve carve shape shape form form model model design design engineer engineer architect architect plan plan plot plot chart chart map map blueprint blueprint draft draft outline outline sketch sketch draw draw paint paint illustrate illustrate depict depict portray portray represent represent symbolize symbolize signify signify denote denote indicate indicate signal signal mark mark label label tag tag brand brand name name title title caption caption headline headline heading heading header header footer footer appendix appendix annex annex addendum addendum supplement supplement complement complement enhance enhance enrich enrich improve improve upgrade upgrade update update refine refine polish polish perfect perfect complete complete finish finish conclude conclude wrap wrap wind wind round round circle circle cycle cycle loop loop ring ring revolve revolve rotate rotate twist twist spin spin whirl whirl swirl swirl flow flow stream stream pour pour cascade cascade flood flood surge surge gush gush rush rush race race dash dash sprint sprint bolt bolt dart dart leap leap bound bound jump jump hop hop skip skip dance dance jig jig jolt jolt jerk jerk yank yank tug tug pull pull drag drag haul haul tow tow lug lug lift lift heave heave hoist hoist elevate elevate raise raise boost boost increase increase amplify amplify magnify magnify expand expand extend extend enlarge enlarge widen widen broaden broaden stretch stretch lengthen lengthen elongate elongate prolong prolong protract protract continue continue persist persist endure endure withstand withstand resist resist oppose oppose defy defy challenge challenge confront confront face face meet meet tackle tackle address address deal deal cope cope contend contend grapple grapple wrestle wrestle struggle struggle strive strive endeavor endeavor attempt attempt try try seek seek pursue pursue chase chase track track hunt hunt stalk stalk shadow shadow tail tail follow follow trail trail trace trace search search explore explore investigate investigate examine examine inspect inspect scrutinize scrutinize study study analyze analyze evaluate evaluate assess assess appraise appraise judge judge rate rate rank rank score score grade grade classify classify categorize categorize sort sort arrange arrange organize organize file file record record log log register register document document archive archive store store save save keep keep hold hold retain retain preserve preserve protect protect safeguard safeguard secure secure lock lock fast fast bind bind tie tie knot knot link link connect connect attach attach join join unite unite merge merge blend blend mix mix combine combine integrate integrate fuse fuse amalgamate amalgamate coalesce coalesce consolidate consolidate unify unify harmon harmon harmon harmon synchronize synchronize coordinate coordinate align align adjust adjust adapt adapt modify modify alter alter change change transform transform convert convert turn turn shift shift switch switch swap swap exchange exchange trade trade barter barter negotiate negotiate bargain bargain haggle haggle wrangle wrangle argue argue debate debate discuss discuss talk talk converse converse chat chat communicate communicate interact interact engage engage participate participate involve involve immerse immerse engross engross absorb absorb consume consume devour devour gobble gobble gulp gulp swallow swallow ingest ingest digest digest assimil assimil assimil assimil metabol metabol metabol metabol process process utilize utilize employ employ apply apply implement implement execute execute carry carry perform perform enact enact realize realize achieve achieve attain attain accomplish accomplish fulfill fulfill satisfy satisfy meet meet match match fit fit suit suit accommodate accommodate cater cater serve serve provide provide supply supply furnish furnish equip equip outfit outfit stock stock fill fill load load pack pack stuff stuff cram cram jam jam squeeze squeeze press press compress compress compact compact condense condense concentrate concentrate focus focus center center central central pivotal pivotal crucial crucial critical critical essential essential vital vital indispensable indispensable necessary necessary required required obligatory obligatory mandatory mandatory compulsory compulsory binding binding enforce enforce impose impose dictate dictate command command direct direct instruct instruct order order charge charge assign assign allocate allocate allot allot apportion apportion distribute distribute dispense dispense disburse disburse deliver deliver transmit transmit convey convey relay relay pass pass send send forward forward dispatch dispatch ship ship transport transport transfer transfer move move relocate relocate reposition reposition rearrange rearrange realign realign readjust readjust resettle resettle rehouse rehouse reh rehabil rehabilitate rehabilitate restore restore renew renew renovate renovate refurbish refurbish remodel remodel remake remake rebuild rebuild reconstruct reconstruct redevelop redevelop revitalize revitalize rejuven rejuven rejuven rejuven regenerate regenerate revive revive refresh refresh recharge recharge replenish replenish refill refill restock restock resupply resupply reinforce reinforce strengthen strengthen fortify fortify bolster bolster buttress buttress brace brace support support uphold uphold sustain sustain maintain maintain preserve preserve conserve conserve protect protect shield shield defend defend guard guard safeguard safeguard secure secure lock lock latch latch fasten fasten fix fix anchor anchor moor moor berth berth dock dock tether tether hitch hitch hook hook clip clip clamp clamp clasp clasp grip grip grasp grasp clutch clutch cling cling hold hold seize seize grab grab snatch snatch catch catch capture capture trap trap ensn ensn ensn ensn entrap entrap imprison imprison incarcer incarcer jail jail detain detain confine confine restrict restrict limit limit constrain constrain restrain restrain curb curb check check control control regulate regulate govern govern administer administer manage manage run run operate operate conduct conduct oversee oversee supervise supervise superintend superintend direct direct lead lead guide guide steer steer navigate navigate pilot pilot shepherd shepherd herd herd marshal marshal rally rally muster muster gather gather collect collect amass amass accumulate accumulate aggregate aggregate compile compile assemble assemble group group cluster cluster clump clump bunch bunch bundle bundle batch batch lot lot set set kit kit suite suite assortment assortment collection collection array array range range spectrum spectrum variety variety selection selection choice choice pick pick option option alternative alternative substitute substitute replacement replacement equivalent equivalent counterpart counterpart parallel parallel analog analog analogy analogy comparison comparison equivalence equivalence symmetry symmetry congru congru congru congru uniform uniform consistent consistent coherent coherent cohesive cohesive integrated integrated interconnected interconnected interrelated interrelated linked linked associated associated connected connected correlated correlated related related akin akin similar similar alike alike analogous analogous comparable comparable matching matching corresponding corresponding resembling resembling mirroring mirroring reflecting reflecting echo echo mimicking mimicking imitating imitating emulating emulating replic replic replic replic duplic duplic duplic duplic copy copy reproduce reproduce duplicate duplicate clone clone mirror mirror mimic mimic simulate simulate resemble resemble approximate approximate approach approach border border verge verge edge edge fringe fringe margin margin boundary boundary perimeter perimeter limit limit extent extent reach reach scope scope span span range range sweep sweep breadth breadth width width depth depth height height elevation elevation altitude altitude level level plane plane tier tier layer layer stratum stratum rank rank grade grade class class category category division division section section segment segment portion portion part part piece piece bit bit fragment fragment fraction fraction slice slice share share quota quota allocation allocation allowance allowance ration ration dose dose measure measure amount amount quantity quantity volume volume bulk bulk mass mass weight weight load load cargo cargo freight freight shipment shipment consignment consignment delivery delivery package package parcel parcel bundle bundle packet packet container container vessel vessel receptacle receptacle holder holder carrier carrier medium medium vehicle vehicle transporter transporter conveyance conveyance means means mode mode method method manner manner way way style style fashion fashion custom custom practice practice habit habit routine routine pattern pattern trend trend tendency tendency inclination inclination propensity propensity predisposition predisposition predilection predilection penchant penchant preference preference liking liking fondness fondness taste taste appetite appetite craving craving desire desire wish wish want want need need requirement requirement necessity necessity requisite requisite essential essential fundamental fundamental basic basic primary primary principal principal main main chief chief leading leading foremost foremost paramount paramount supreme supreme ultimate ultimate utmost utmost maximum maximum peak peak pinnacle pinnacle zenith zenith apex apex acme acme summit summit crest crest crown crown climax climax culmination culmination completion completion realization realization fulfillment fulfillment achievement achievement accomplishment accomplishment attainment attainment success success triumph triumph victory victory conquest conquest win win gain gain profit profit benefit benefit advantage advantage asset asset resource resource capital capital wealth wealth fortune fortune riches riches treasure treasure booty booty loot loot spoils spoils plunder plunder bounty bounty prize prize reward reward trophy trophy medal medal accolade accolade honor honor distinction distinction merit merit credit credit recognition recognition acknowledgment acknowledgment appreciation appreciation gratitude gratitude thanks thanks commendation commendation compliment compliment praise praise acclaim acclaim applause applause c</p>
