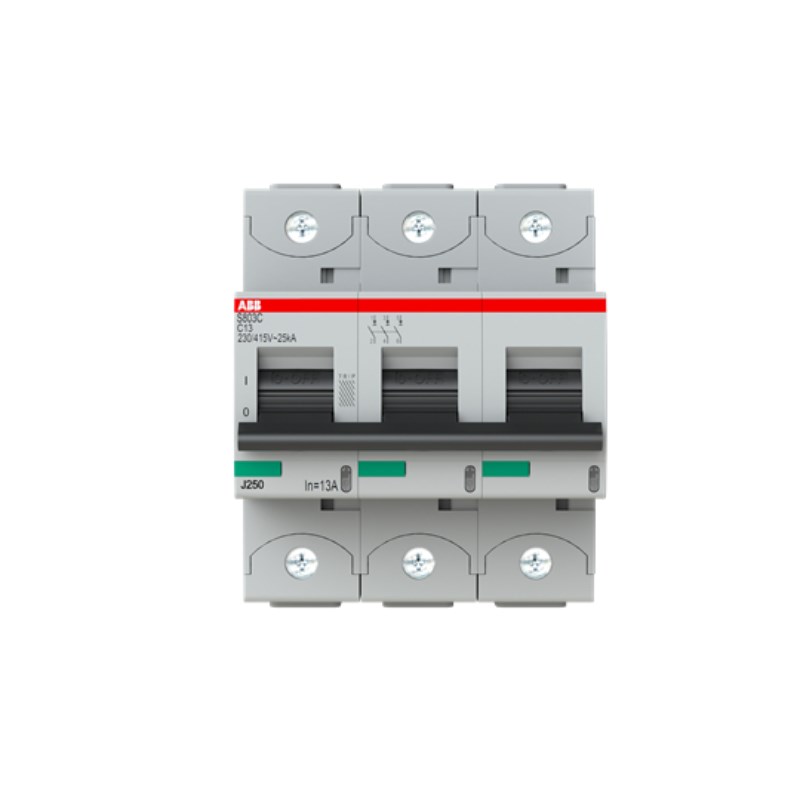

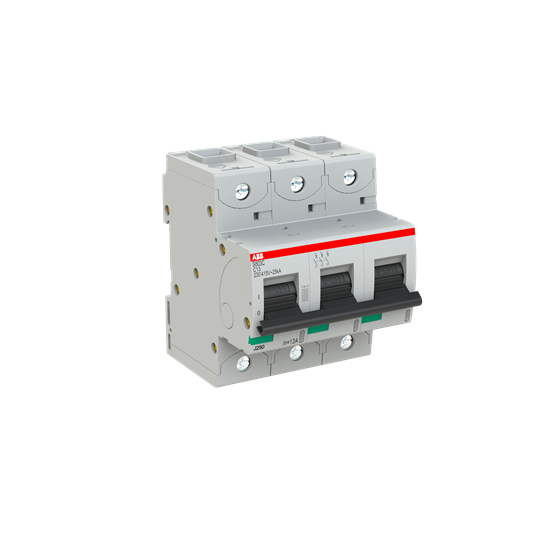

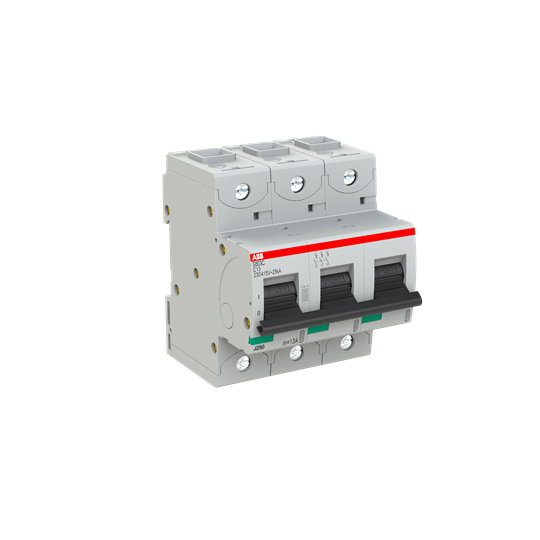

When selecting a Miniature Circuit Breaker (MCB) for your commercial or industrial application, understanding the technical specifications is crucial. The S800C Series MCB offers reliable performance with its robust design and compliance with industry standards.
This MCB boasts a rated current of 13 A, ensuring suitability for various electrical applications. It operates efficiently at a rated voltage of 230/400 VAC and maintains an impressive breaking capacity of 25 kA at 400 VAC. This high breaking capacity ensures that the device can manage fault conditions effectively, providing safety and reliability in challenging environments.
The product's electrical durability is designed to withstand up to 10,000 cycles, making it a long-lasting solution for repeated operations. With an impulse withstand voltage rating of 8 kV and insulation voltage of 500 V, this MCB can handle significant transient overvoltages without compromising performance.
The S800C Series features three poles with a curve type C characteristic, which provides optimal protection against short circuits and overloads typical in commercial settings. Its IP20 degree of protection indicates it is safeguarded against solid objects larger than 12 mm but requires additional enclosure for complete dust-proofing.
Installation is straightforward thanks to the screw clamp terminal type allowing secure connections with tightening torque set at 3.5 N-m. The MCB accommodates cable cross-sections up to 50 sq-mm both on top and bottom terminals, offering flexibility during installation.
Sized at a width of 81 mm, height of 95 mm, and depth of 82.5 mm with each pole occupying just 27 mm width on the DIN rail mount system makes it compact enough for space-conscious installations while maintaining ease-of-accessibility during maintenance.
This unit adheres to rigorous standards such as AS/NZS 60898-1, AS/NZS 60947-2, and UL1077—ensuring compliance across different regulatory environments. Ambient operating temperatures range from -25°C to +60°C while storage temperatures span from -40°C to +70°C ensuring functionality in diverse climates throughout Australia.
Finished in RAL7035 grey housing colour this MCB blends seamlessly into most electrical panels while maintaining professional aesthetics suitable for modern installations.
For those seeking reliable circuit protection within industrial or commercial settings where performance cannot be compromised by environmental factors or operational demands—the S800C Series delivers peace-of-mind through its engineered precision backed by industry-standard certifications.
