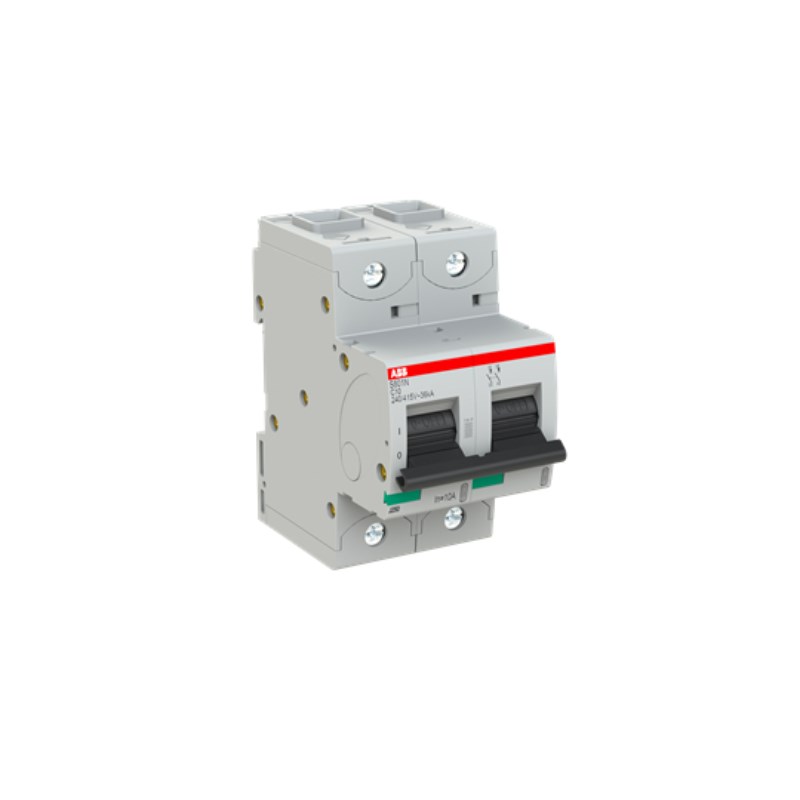

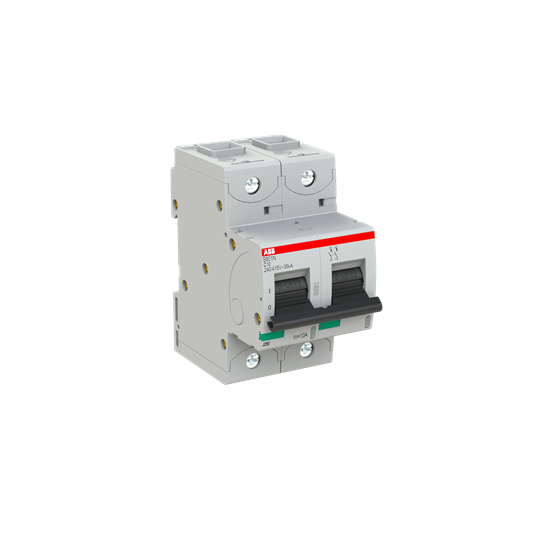

ABB S802NC10 High Performance Miniature Circuit Breaker 36kA at 400VAC 2-P 10A 400/690VAC C-Curve

Product Code: S802NC10

  • 10 A MCB with 2 poles for robust protection
  • High breaking capacity of 36 kA at 400 VAC
  • Rated insulation voltage up to 690 V
  • Complies with IEC/EN standards for safety
  • Suitable for DIN rail mounting in commercial setups
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 50/50
Cable Cross Section - Flexible (mm²) Top/Bottom - 70/70
Dimensions (mm) 95H x 82.5D x 54W
No. of Poles 2P
Pole Width (mm) 27
Power Loss (W) 1.5/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 36
Pollution Degree 3
Rated Current (A) 10
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 690
Rated Impulse Withstand Voltage (kV) 8
Rated Operational Voltage DC (V) 250
Rated Short-Circuit Capacity - Icn (kA) 20
Rated Operational Voltage AC (V) 400/690
Breaking Capacity 400V AC - Icu (kA) 36
Maximum Operational Voltage DC (V) 250
Maximum Operational Voltage AC (V) 690
Minimum Operational Voltage AC (V) 12
Rated Voltage AC (V) 400
Family S800N
AC Voltage (V) 400/690
DC Voltage (V) 250
Icn-Rated Short Circuit Capacity (kA) 20
Inc-Rated Conditional Short Circuit Capacity (kA) 36
Impulse Withstand Voltage (kV/1.2µS) 8
Poles 2P
Breaking Capacity (kA) 36 @400 V AC
Current Rating (A) 10
Product Type High Performance Circuit breaker
Brand ABB
Series S800N
Application Commercial and Industrial
Breaking Capacity 36 kA at 400 VAC
Cable Cross Section 50 sq-mm Top, 50 sq-mm Bottom
Collection S800N
Curve Type C
Degree of Pollution IP3
Degree of Protection IP20
Depth 82.5 mm
Electrical Durability 10000 Cycles
Height 95 mm
Housing Colour RAL 7035 Grey
Housing Material Insulation group I, RAL 7035
Impulse Voltage 8 kV
Mounting Type DIN Rail
Number of Poles 2
Pole Width 27 mm
Power Loss 1.5 W
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 690 V
Rated Short Circuit Current 36 kA
Rated Voltage 400/690 VAC
Short Circuit Capacity 20 kA
Standards and Approvals IEC/EN 60947-2, IEC/EN 60898-1
Tightening Torque 3.5 N-m
Trip Curve C Curve
Width 54 mm

Description

ABB's high-performance Miniature Circuit Breaker offers reliable protection against short circuits and thermal overload. With a 36kA rating at 415VAC and 20kA rating at 250VDC, this 2-pole breaker is designed for commercial and industrial applications. Featuring a C curve, it ensures efficient operation and safety. The breaker has a pole width of 27mm, making it compact and space-saving. Trust ABB for top-quality circuit protection solutions.
