Specifications

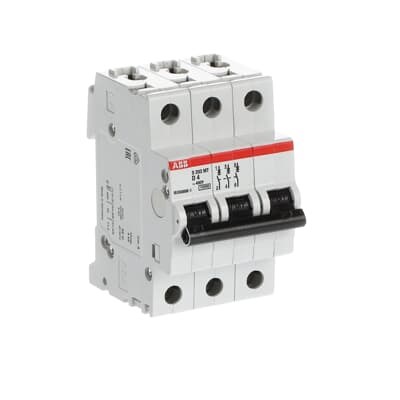

Product Type	Miniature Circuit Breaker
Brand	ABB
Ambient Temperature	-25 to 55 deg C Operation, -40 to 70 deg C Storage
Breaking Capacity	11.3 kA
Curve Type	D
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	69 mm
Electrical Durability	20000 Cycles
Height	88 mm
Housing Colour	RAL 7035 Grey
Number of Poles	3
Power Loss	5.1 W
Rated Current	4 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	440 V
Rated Voltage	400 V
Standards and Approvals	IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235
Terminal Type	Screw Clamp
Tightening Torque	2.8 N-m
Width	52.5 mm
