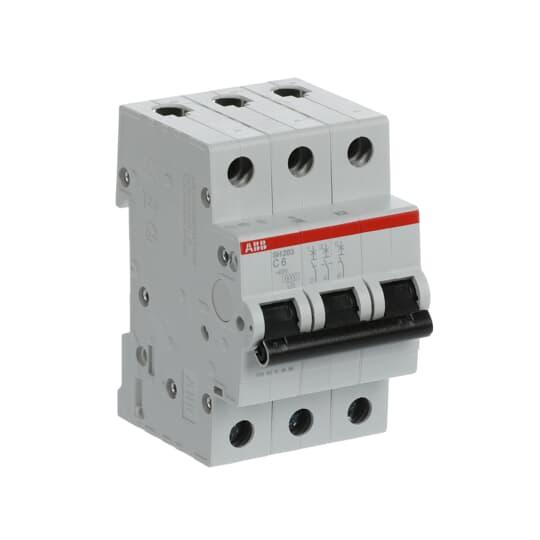

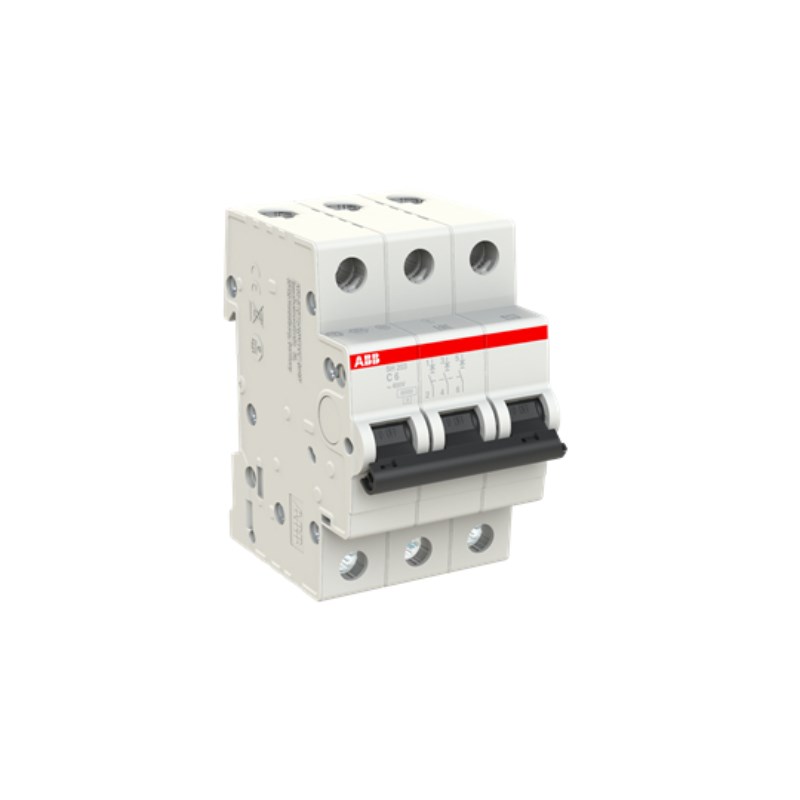

ABB SH203C6 Miniature Circuit Breaker 6kA 3-P 6A 400/415VAC C-Curve

Product Code: SH203C6

  • 6 A rated current with 6 kA breaking capacity
  • Suitable for 400/415 VAC systems
  • IP20 protection, DIN Rail mountable
  • Complies with AS/NZS & IEC/EN standards
  • Compact design: 52.5 mm width
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 25/25
Cable Cross Section - Flexible (mm²) Top/Bottom - 16/16
Dimensions (mm) 85H x 69D x 52.5W
No. of Poles 3P
Pole Width (mm) 17.5
Power Loss (W) 2/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 6
Pollution Degree 2
Rated Current (A) 6
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 440
Rated Impulse Withstand Voltage (kV) 4
Rated Short-Circuit Capacity - Icn (kA) 6
Rated Operational Voltage AC (V) 400
Maximum Operational Voltage AC (V) 440
Minimum Operational Voltage AC (V) 12
Rated Voltage AC (V) 400
Family SH200
AC Voltage (V) 400/415
Icn-Rated Short Circuit Capacity (kA) 6
Inc-Rated Conditional Short Circuit Capacity (kA) 6
Impulse Withstand Voltage (kV/1.2µS) 4
Poles 3P
Current Rating (A) 6
Product Type Miniature Circuit Breaker
Brand ABB
Series SH200
Actuator Type Toggle
Ambient Temperature -25 to 55 deg C Operation, -40 to 70 deg C Storage
Application Domestic
Breaking Capacity 6 kA
Cable Cross Section 25 sq-mm Top, 25 sq-mm Bottom
Collection SH200
Curve Type C
Degree of Pollution IP2
Degree of Protection IP20
Depth 69 mm
Electrical Durability 20000 Cycles
Height 85 mm
Housing Colour RAL 7035 Grey
Housing Material Insulation Group II, RAL 7035
Impulse Voltage 4 kV
Mounting Type DIN Rail
Number of Poles 3
Pole Width 17.5 mm
Power Loss 2 W
Rated Current 6 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Voltage 400/415 VAC
Standards and Approvals AS/NZS 60898-1, IEC/EN 60898-1
Terminal Type Screw Clamp
Tightening Torque 2 N-m
Trip Curve C Curve
Width 52.5 mm

Description

The ABB Miniature Circuit Breaker is a 3-pole, 6A circuit breaker designed for loadcentre applications. It provides protection against short circuits and thermal overload with a C curve rating of 6kA. This circuit breaker is specifically designed for domestic use and cannot be chassis mounted.
