Product Code: S804CC20

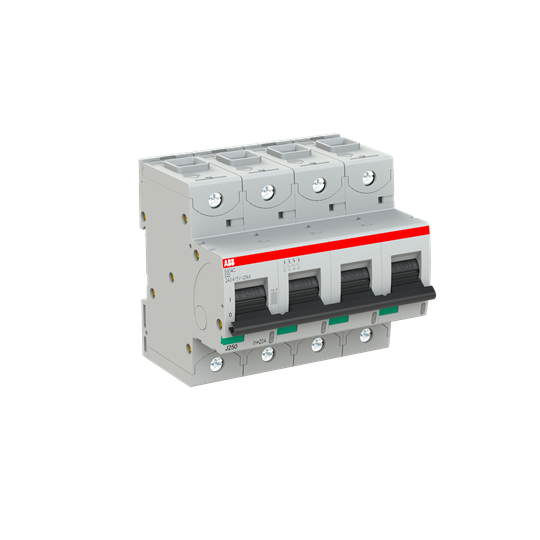

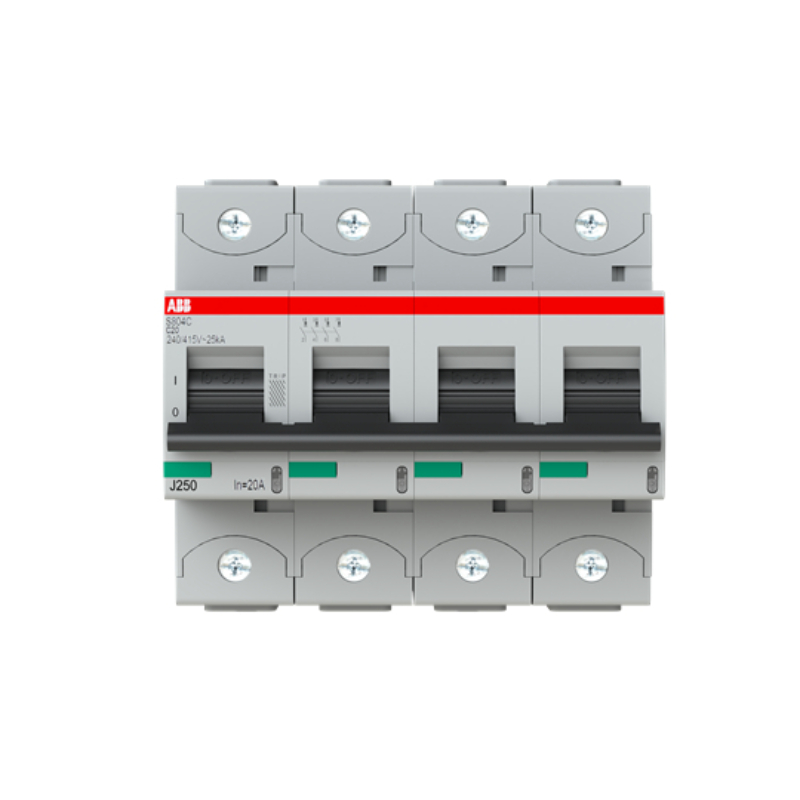

The ABB High Performance Miniature Circuit Breaker is designed for commercial and industrial applications. It offers 4 poles with a 20A rating and C curve protection against short circuit and thermal overload. With a pole width of 27mm, it provides reliable performance. This circuit breaker has a high breaking capacity of 25kA at 415VAC and 10kA at 500VDC, ensuring efficient operation in various electrical systems. Trust ABB for quality and durability in circuit protection solutions.

Housing Material	Insulation group I, RAL 7035
Brand	ABB
Series	S800C
Cable Cross Section - Flexible (mm²)	Top/Bottom - 70/70
Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 50/50
Mounting Type	DIN Rail
AC Voltage (V)	230/400
Application	Commercial and Industrial
Breaking Capacity 400V AC - Icu (kA)	25
Current Rating (A)	20
Curve Type	C Curve
DC Voltage (V)	500
Family	S800C
Icn-Rated Short Circuit Capacity (kA)	15
Impulse Withstand Voltage (kV/1.2µS)	8
Maximum Operational Voltage AC (V)	440
Maximum Operational Voltage DC (V)	500
Minimum Operational Voltage AC (V)	12
No. of Poles	4P
Power Loss (W)	3.5/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	25
Rated Current (A)	20
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	500
Rated Operational Voltage AC (V)	230/400
Rated Operational Voltage DC (V)	500
Rated Short-Circuit Capacity - Icn (kA)	15
Rated Voltage AC (V)	400
Dimensions (mm)	95H x 82.5D x 106W
Trip Curve	C Curve
Pole Width (mm)	27
Degree of Protection	IP20
Pollution Degree	3
Standards and Approvals	AS/NZS 60898-1,AS/NZS 60947-2, UL 1077
Poles	4P
Breaking Capacity (kA)	25 @400 V AC
Inc-Rated Conditional Short Circuit Capacity (kA)	25

DIN MCB

ABB S804CC20 HIGH PERF. MCB 25kA 4P 20A 415VAC C CURVE
