Specifications

Dimensions (mm)	106W x 95H x 82.5D
No. of Modules	6
No. of Poles	4
Operational Temperature Range (°C)	-25 to 60 °C
Power Loss (W)	6.4W per Pole
Rated Current (A)	63
Rated Impulse Withstand Voltage (kV)	8
Weight (kg)	0.98
Rated Operational Voltage (V)	400V AC (IEC 60898-1), 690V AC (IEC 60947-2)

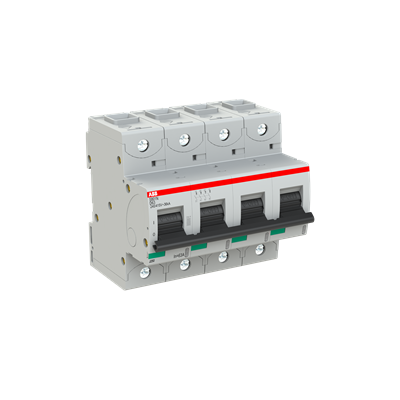

Product Type	MCB
Brand	ABB
Curve Type	D
Degree of Protection	IP20
Mounting Type	DIN-Rail
Standards and Approvals	IEC/EN 60947-2, IEC/EN 60898-1
