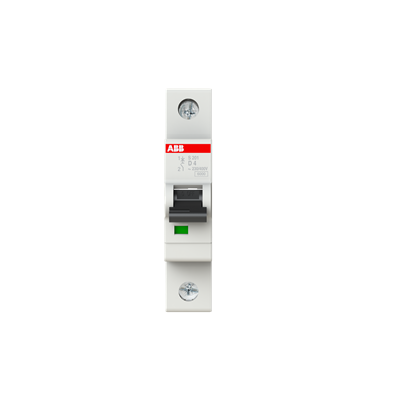

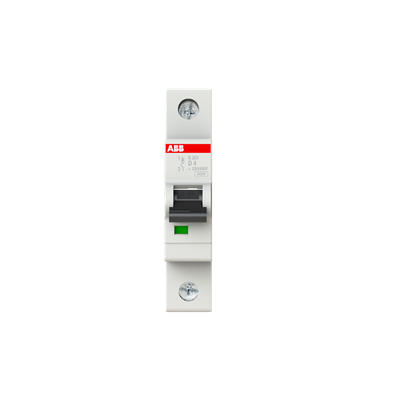

When selecting the right miniature circuit breaker (MCB) for your industrial or commercial applications, understanding the technical specifications is key. The S200 Series MCB offers a robust solution with its comprehensive set of features designed to ensure safety and reliability.
This single-pole MCB is rated for a current of 4 A, making it suitable for protecting electrical circuits from overloads and short circuits. With a breaking capacity of 10 kA, it can handle significant fault currents, providing dependable protection in demanding environments. Its rated voltage spans from 230/400 VAC, accommodating various system requirements.
The S200 Series MCB is equipped with a rated impulse withstand voltage of 4 kV and an insulation voltage rating of 440 V, ensuring resilience against transient overvoltages. This makes it ideal for installations where voltage spikes are common. Additionally, the device features a power loss of just 1.7 W, promoting energy efficiency within your systems.
Engineered to meet IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077 standards and approvals, this MCB adheres to international safety regulations—providing peace of mind regarding compliance and performance. It has been tested to endure up to 20,000 electrical cycles; thus offering long-term durability even under frequent operational demands.
The mechanical design includes a width of just 17.5 mm alongside dimensions measuring at a height of 88 mm and depth at 69 mm—suitable for compact installations without compromising on functionality or space efficiency. The screw clamp terminals support secure connections with a tightening torque specification set at 2.8 N-m.
With an IP3 degree of pollution classification coupled with its capacity to operate within ambient temperatures ranging from -25°C to +55°C—the S200 Series adapts well across varied environmental conditions while maintaining optimal performance levels throughout its lifespan.
Designed for DIN rail mounting systems; installation remains straightforward while ensuring compatibility across standard setups found commonly within switchboards or control panels worldwide—aided further by wire stripping length guidelines set at precisely12.5 mm enhancing ease-of-use during assembly stages onsite too!
Moreover; this model's curve type 'D' characteristic ensures effective tripping response suited particularly towards inductive loads typically observed across motors transformers etc., safeguarding equipment effectively against potential damage risks associated therein!
In summary: whether you're managing new builds retrofits upgrades alike rest assured knowing that choosing products like those found within our esteemed range provides not only exceptional value but also uncompromising quality backed by decades worth expertise experience—all wrapped up neatly inside one reliable package ready tackle challenges head-on whenever wherever needed most!
