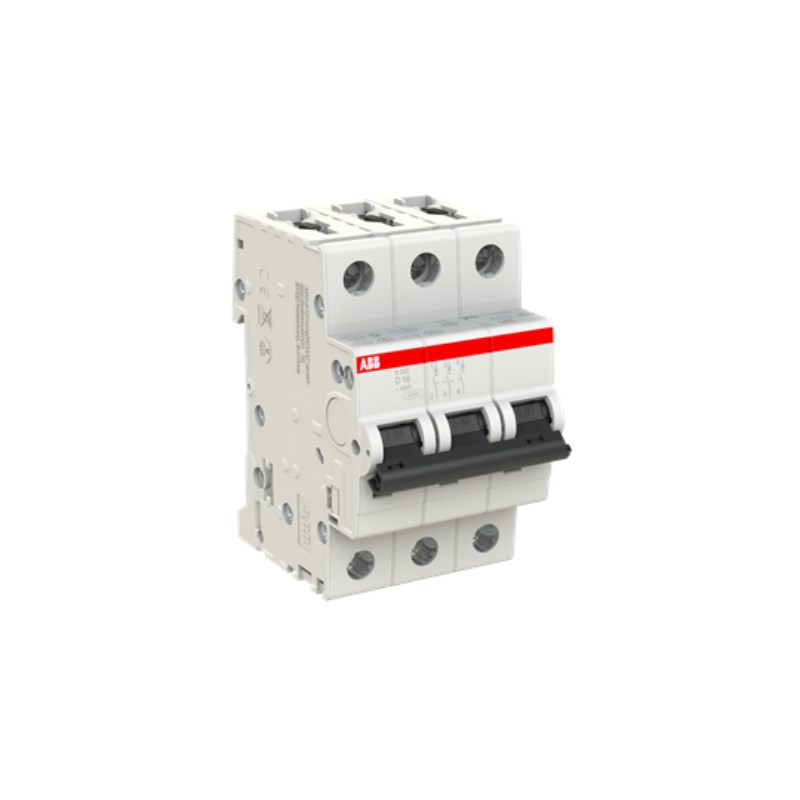

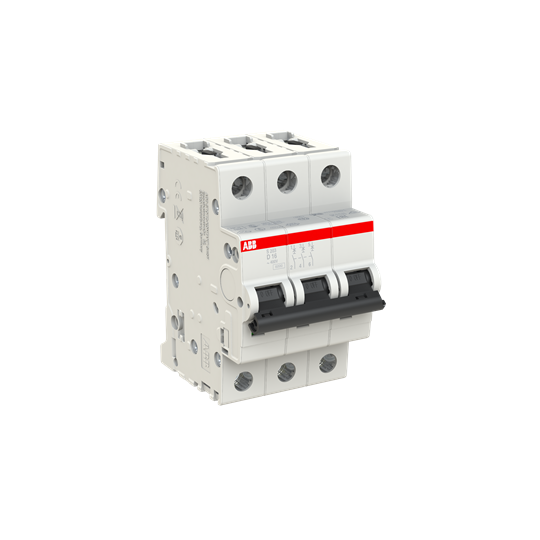

The S200 series MCB is a robust and reliable choice for commercial and industrial applications, designed to meet the demanding requirements of modern electrical systems. With a rated current of 16 A, this miniature circuit breaker ensures optimal performance by effectively managing and interrupting overcurrent situations.
One of the key technical specifications is its breaking capacity of 10 kA at 400 VAC, which provides confidence in handling short-circuit conditions. The device operates efficiently within a voltage range of 400/415 VAC and supports both 50 Hz and 60 Hz frequencies, offering flexibility across different electrical setups.
Engineered with safety in mind, the MCB boasts a degree of protection rated at IP20, making it suitable for environments where basic protection against accidental contact is necessary. It also adheres to stringent standards such as AS/NZS 60898-1, AS/NZS 60947-2, and UL 1077—ensuring compliance with international safety regulations.
The S200 series features a D curve type characteristic, ideal for circuits with high inrush currents typically found in motor loads or transformers. Its electrical durability is impressive at up to 20,000 cycles, guaranteeing long-term reliability even under frequent operation.
Installation is straightforward thanks to its DIN rail mounting system. The screw clamp terminal type allows secure connections with a tightening torque of 2.8 N-m. Accommodating cable cross-sections up to 35 sq-mm on both top and bottom terminals further enhances its versatility.
Physically compact yet durable, this MCB measures just 52.5 mm in width by 88 mm in height and has a depth of only 69 mm—making it an efficient use of space within control panels or distribution boards. Its housing color RAL7035 grey blends seamlessly into most industrial settings.
Operating comfortably between ambient temperatures of -25°C to +55°C (with storage capabilities from -40°C to +70°C), this device withstands diverse environmental conditions without compromising performance. Additionally, the bulbar cross-section accommodates up to 10 sq-mm on both top and bottom sides for added convenience during installation.
In summary, the S200 series MCB exemplifies quality engineering tailored for rigorous commercial use—balancing efficiency with robust protective features that ensure peace-of-mind operation across various applications while adhering strictly to industry standards.
