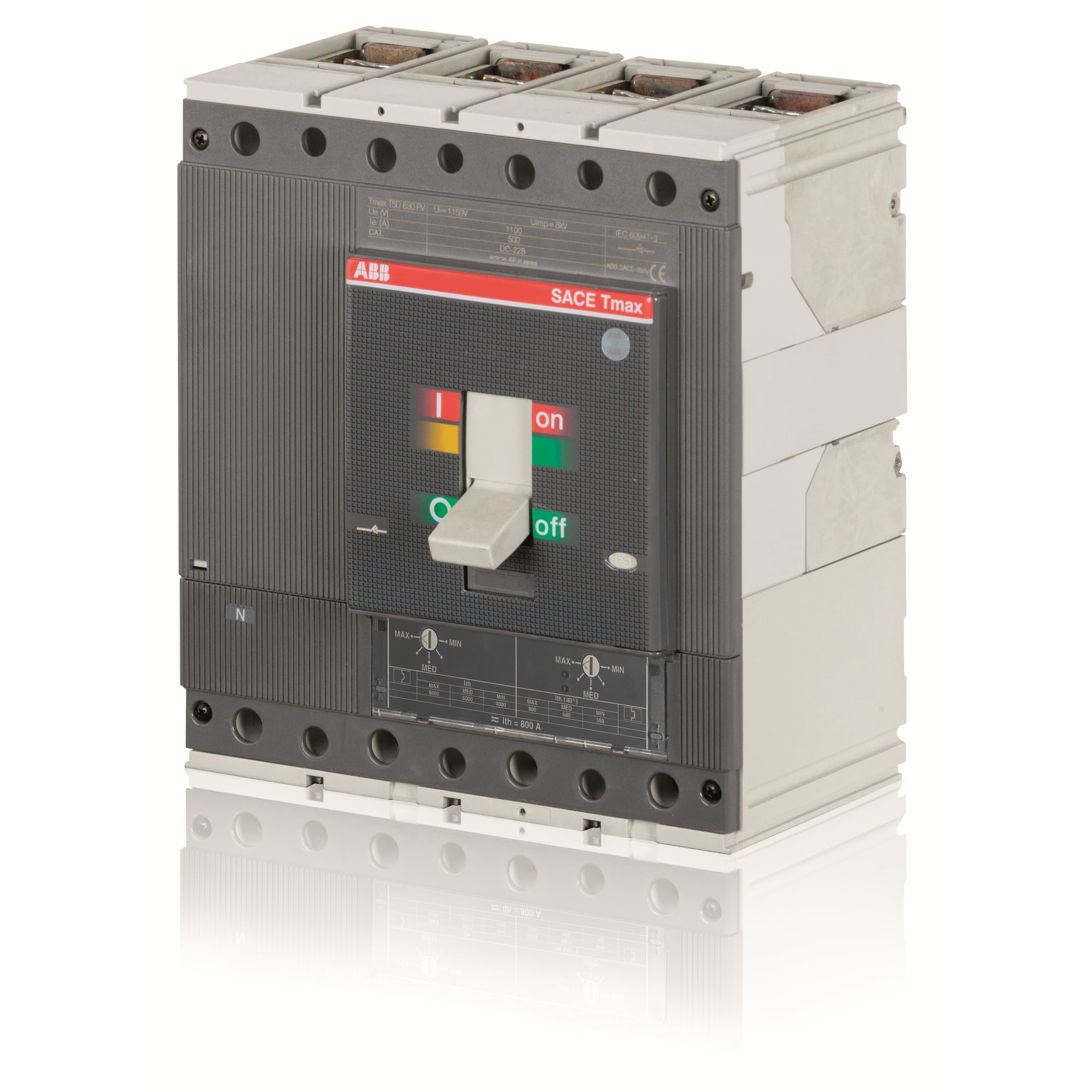

The T5 Frame is a robust solution designed for industrial and commercial applications, providing reliable performance with its well-defined electrical specifications. With a rated current of 400 A, this product ensures efficient energy distribution across your systems. It supports both AC and DC applications with a rated voltage of up to 1150/1000 VAC/VDC, making it versatile for various power setups.
Engineered to withstand high impulse voltages, the T5 Frame features an impressive rated impulse withstand voltage of 8 kV. This capability is essential in protecting your equipment against transient over-voltages typically caused by lightning strikes or switching operations.
Safety and reliability are further enhanced by the product's rated insulation voltage of 1150 V, ensuring that the device can operate safely under its maximum voltage conditions. The T5 Frame also meets IEC 309 standards and approvals, signifying compliance with international safety and performance benchmarks.
For those concerned about space constraints, the T5 Frame offers a compact design with a width of just 184 mm while maintaining structural integrity at a weight of 5.8 kg. Its front connection type simplifies installation and maintenance processes, allowing for straightforward integration into existing systems.
The device incorporates advanced protective features through its trip unit configuration; it utilizes a thermal-magnetic (TM) release type combined with a TMA trip unit to provide dependable overcurrent protection. This setup is crucial in preventing damage from overloads or short circuits within your electrical network.
With four poles available, the T5 Frame accommodates complex circuit configurations while delivering consistent protection and operational efficiency. It boasts a breaking capacity of 12 kA—adequate for interrupting fault currents effectively without compromising system stability.
Power loss is minimized at only 19.5 W during operation, contributing to overall energy efficiency—a critical factor in optimizing long-term operational costs within industrial environments.
The test voltage rating stands at an impressive 3500 V, ensuring that the frame can endure rigorous testing conditions without failure—an assurance of durability and quality craftsmanship.
Suitable for use alongside compatible devices like the T5V model, this frame offers flexibility in building comprehensive solutions tailored to specific application needs. In conclusion, if you're seeking reliability backed by solid technical credentials for your electrical installations in demanding settings—the T5 Frame presents itself as an apt choice ready to meet your requirements efficiently.
