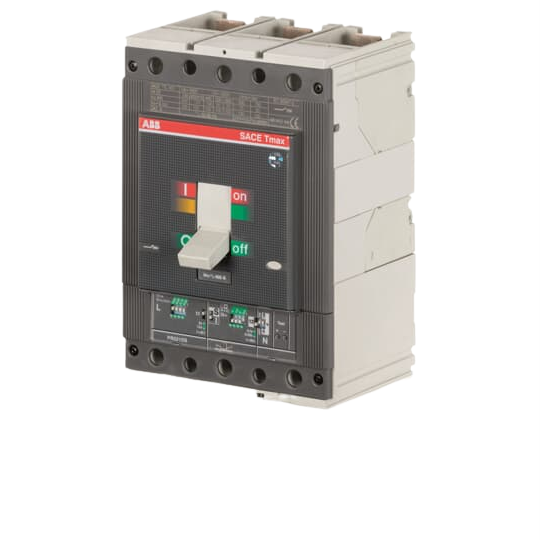

ABB 1SDA064221R1 Moulded Case Circuit Breaker 1150VAC 630A 3-P 12kA Front For: T5V

Product Code: 1SDA064221R1

  • MCCB with 630 A rated current
  • Handles up to 1150 VAC voltage
  • Breaking capacity of 12 kA
  • Complies with IEC 309 standards
  • Compact width of 140 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 140W x 205H x 103.5D
Size of Frame T5
L (0.4 to 1 x In) - I1 (A) 252 - 630
No. of Poles 3
Rated Current (A) 630
Breaking Capacity 415V AC - Icu (kA) 20
S (1 to 10 x In) - I2 (A) 378 - 6300
I (1.5 to 12 x In) - I3 (A) 945 - 7560
MCCB Type T5 Frame
Poles 3P
Breaking Capacity (kA) 20
Current Rating (A) 630
Product Type Moulded Case Circuit Breaker
Brand ABB
Breaking Capacity 12 kA
Connection Type Front
Number of Poles 3
Rated Current 630 A
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated Voltage 1150 VAC
Release Type EL
Standards and Approvals IEC 309
Suitable For Use With T5V
Weight 5.1 kg
Width 140 mm
