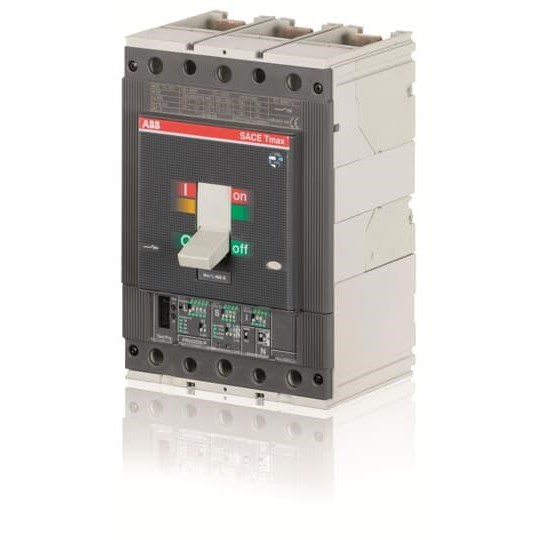

ABB 1SDA054550R1 Moulded Case Circuit Breaker 1150VAC 630A 3-P 12kA Front For: T5V

Product Code: 1SDA054550R1

  • Rated current of 630 A
  • Withstands impulse voltage up to 8 kV
  • Insulation voltage rated at 1150 V
  • Breaking capacity of 12 kA
  • Front connection for easy installation
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Height (mm) 240
Length (mm) 290
Suitable For T5
Weight (kg) 5.1
Width (mm) 250
EAN 8015644556518
Product Type Moulded Case Circuit Breaker
Brand ABB
Breaking Capacity 12 kA
Connection Type Front
Number of Poles 3
Power Loss 41 W
Rated Current 630 A
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1150 V
Rated Voltage 1150 VAC
Release Type EL
Standards and Approvals IEC 309
Suitable For Use With T5V
Test Voltage 3500 V
Weight 5.1 kg
Width 140 mm

Description

circuit breaker TMAX T5V 630 1150V AC fixed three-pole with front terminals for cable Cu and solid-state release in AC PR222DS/P-LSIG R 630.
