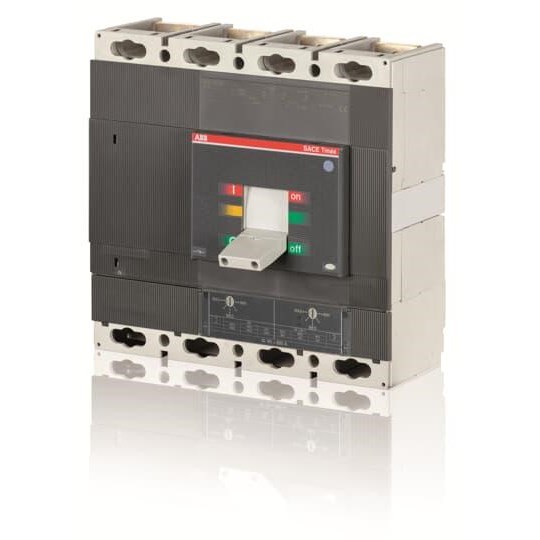

ABB 1SDA060315R1 Moulded Case Circuit Breaker 1000V 630A 4-P 12kA TMA Front For: T6L

Product Code: 1SDA060315R1

  • Rated current of 630 A
  • Breaking capacity of 12 kA
  • 4-pole front connection
  • Complies with IEC 309 standards
  • Compact width of 280 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Height (mm) 290
Length (mm) 370
Suitable For T6
Weight (kg) 14
Width (mm) 310
EAN 8015644627836
Product Type Moulded Case Circuit Breaker
Brand ABB
Breaking Capacity 12 kA
Connection Type Front
Number of Poles 4
Power Loss 30.6 W
Rated Current 630 A
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated Voltage 1000 V
Release Type TM
Standards and Approvals IEC 309
Suitable For Use With T6L
Test Voltage 3500 V
Trip Unit TMA
Weight 12 kg
Width 280 mm

Description

circuit breaker TMAX T6L 630 1000V AC-DC fixed four-pole with front terminals and thermomagnetic release TMA R 630 I3=3150...6300 A fully rated
