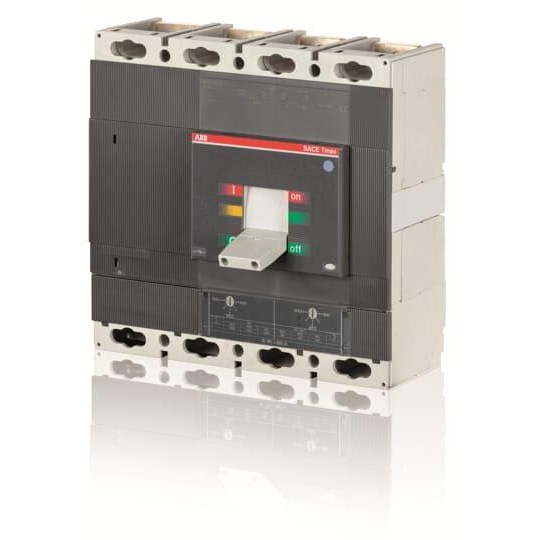

When selecting a circuit breaker for industrial or commercial applications, the T6 Frame stands out as a robust choice. Designed to handle demanding electrical environments, this product is engineered with precision and reliability in mind.
The T6 Frame boasts an impressive rated current of 800 A, making it suitable for heavy-duty operations. It can withstand impulse voltages up to 8 kV and has a rated insulation voltage of 1000 V, ensuring safe operation under high-voltage conditions. With a rated voltage also at 1000 V, it maintains consistent performance across various applications.
Equipped with a TM release type and TMA trip unit, the T6 Frame provides efficient thermal-magnetic protection. This feature ensures that your electrical systems are safeguarded against overloads and short circuits effectively. Additionally, its power loss is kept minimal at just 31 W, contributing to energy efficiency without compromising on safety.
The circuit breaker features four poles and offers a breaking capacity of 12 kA. This level of capacity ensures that it can interrupt fault currents reliably, protecting both equipment and personnel from electrical hazards.
Installation is straightforward with front connection types simplifying integration into existing systems. Measuring at a width of 280 mm and weighing in at 12 kg, the T6 Frame balances size with ease of handling during installation or maintenance work.
Compliance with IEC 309 standards underscores its quality and reliability in meeting international safety requirements. The test voltage rating of 3500 V further assures its robustness under rigorous testing conditions.
This circuit breaker is particularly suited for use with the T6L series, offering compatibility that enhances system design flexibility for engineers working on complex projects.
In summary, the T6 Frame combines durability with advanced protective features ideal for industrial settings where reliable performance is non-negotiable.
