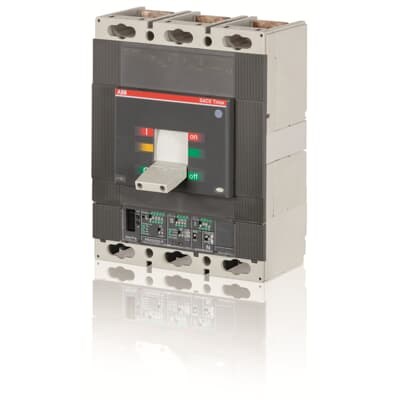

ABB 1SDA060238R1 Moulded Case Circuit Breaker 690VAC 630A 3-P 22kA Front For: S3L

Product Code: 1SDA060238R1

  • Rated current of 630 A for robust performance
  • Handles up to 690 VAC voltage
  • Breaking capacity of 22 kA ensures safety
  • Compact width of 210 mm for tight spaces
  • Complies with IEC 309 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Suitable For T6
Product Type Moulded Case Circuit Breaker
Brand ABB
Breaking Capacity 22 kA
Connection Type Front
Number of Poles 3
Power Loss 20 W
Rated Current 630 A
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated Voltage 690 VAC
Release Type EL
Standards and Approvals IEC 309
Suitable For Use With S3L
Test Voltage 3500 V
Weight 9.5 kg
Width 210 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
