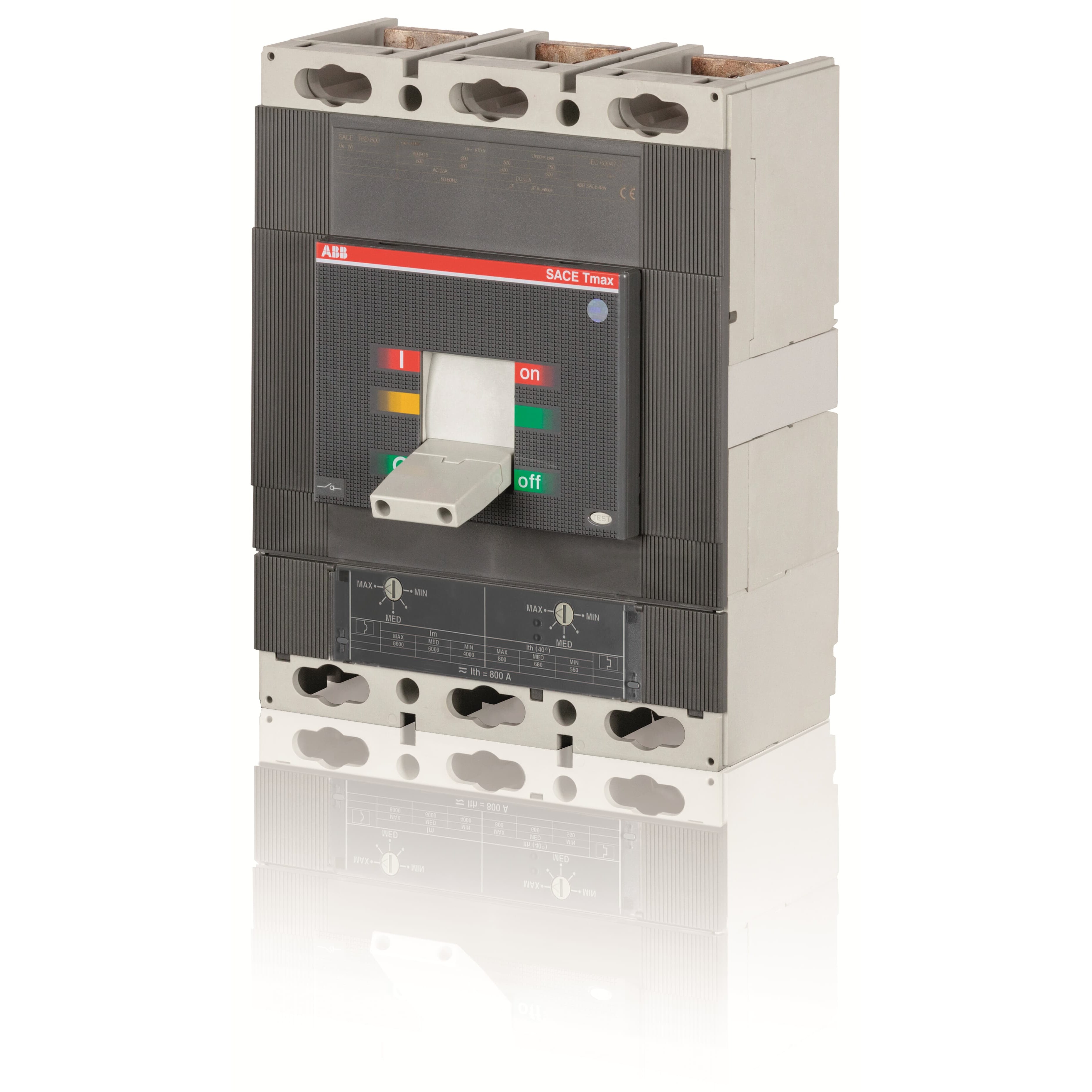

ABB 1SDA060216R1 Moulded Case Circuit Breaker 690/750VAC/VDC 800A 3-P 22kA TMA Front For: T6S

Product Code: 1SDA060216R1

  • Rated current of 800 A
  • Withstands impulse voltage up to 8 kV
  • Supports 690/750 VAC/VDC
  • Breaking capacity of 22 kA
  • Front connection type
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Suitable For T6
Product Type Moulded Case Circuit Breaker
Brand ABB
Breaking Capacity 22 kA
Connection Type Front
Number of Poles 3
Power Loss 31 W
Rated Current 800 A
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated Voltage 690/750 VAC/VDC
Release Type TM
Standards and Approvals IEC 309
Suitable For Use With T6S
Test Voltage 3500 V
Trip Unit TMA
Weight 9.117 kg
Width 210 mm
