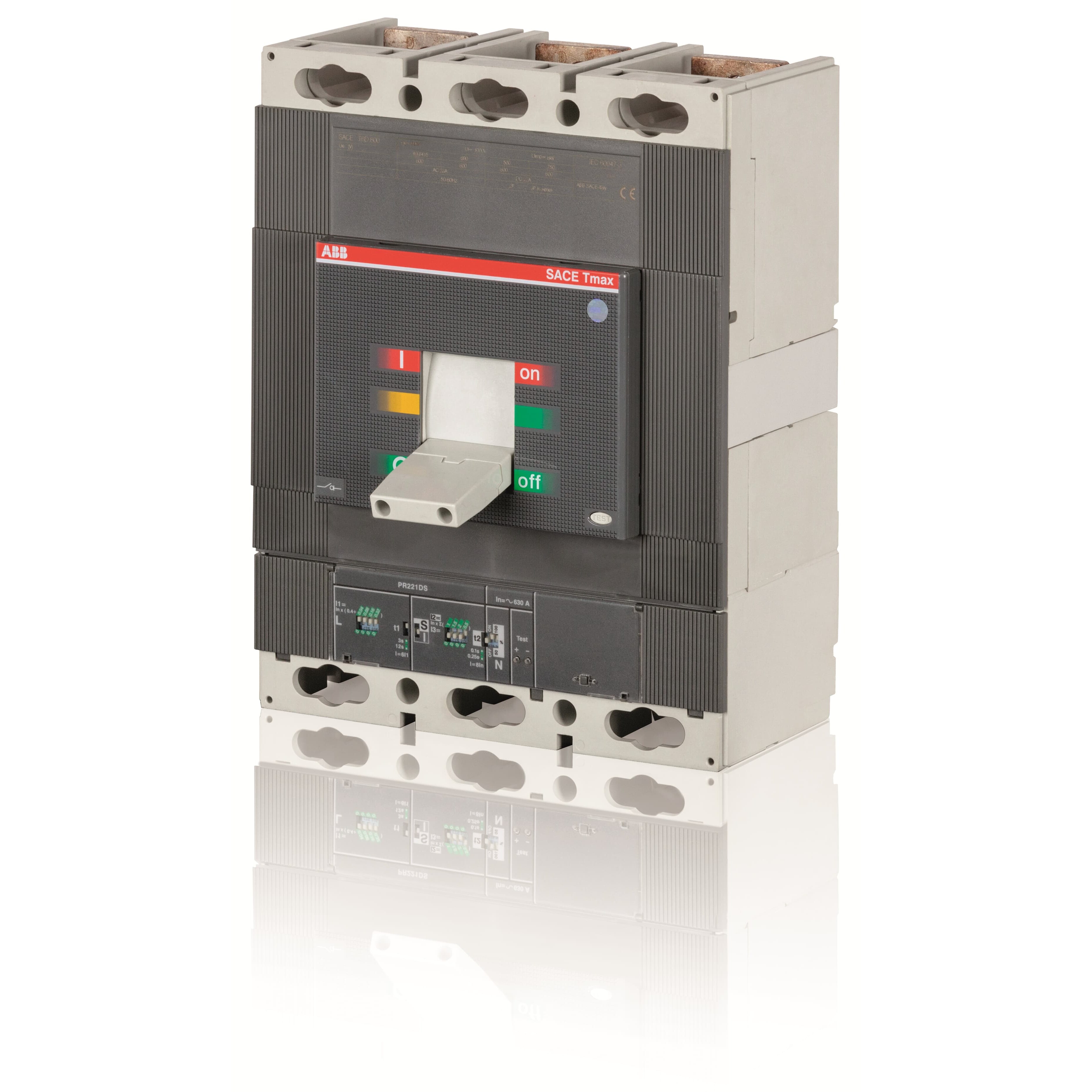

ABB 1SDA063027R1 Moulded Case Circuit Breaker 690VAC 1600A 3-P 70kA Front For: T7H

Product Code: 1SDA063027R1

  • Rated current: 1600 A
  • Breaking capacity: 70 kA
  • Rated voltage: 690 VAC
  • Front connection type
  • Complies with IEC 309 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Suitable For T7
Product Type Moulded Case Circuit Breaker
Brand ABB
Breaking Capacity 70 kA
Connection Type Front
Number of Poles 3
Power Loss 77 W
Rated Current 1600 A
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated Short Time Withstand Current 20 kA
Rated Voltage 690 VAC
Release Type EL
Standards and Approvals IEC 309
Suitable For Use With T7H
Weight 9.7 kg
Width 210 mm
