Version	Fixed
Brand	ABB
EAN	8015644007157
Breaking Capacity 415V AC - Icu (kA)	18
Current Rating (A)	125
Design of Control Element	Toggle
I - Short-circuit Current Setting I3 (A)	1250
L - Overload Current Setting I1 (A)	87.5 - 125
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	3
Power Loss (W)	10.7
Rated Current (A)	125
Rated Frequency (Hz)	50/60
Rated Instantaneous Short-Circuit Current - Ii (A)	1250
Rated Insulation Voltage (V)	800
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Dimensions (mm)	76.2W x 130H x 70D
Trip Unit	TMD
Degree of Protection	IP20
Standards and Approvals	IEC 60947-2
MCCB Type	XT1 Frame
Poles	3P
Breaking Capacity (kA)	18
Tripping Unit	TMD
Voltage (V)	690 AC
Trip Unit - Thermal Magnetic	TMD

Moulded Case Circuit Breakers

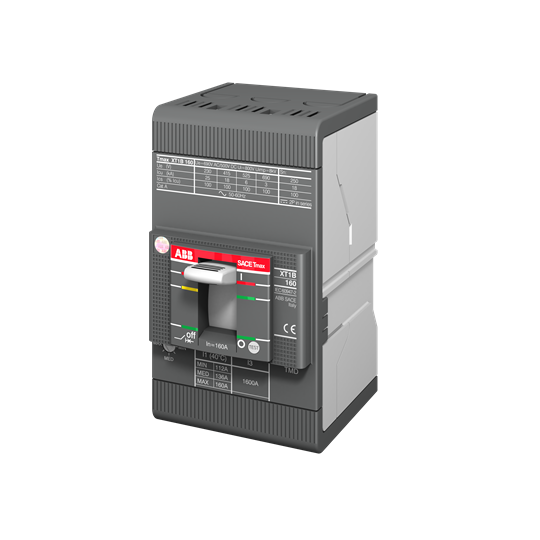

ABB XT1B 160 TMD 125-1250 3P F F 1SDA066808R1
