Brand	ABB
Design of Control Element	Toggle
I - Short-circuit Current Setting I3 (A)	450
L - Overload Current Setting I1 (A)	28 - 40
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT1 Frame
Rated Instantaneous Short-Circuit Current - Ii (A)	450
Trip Unit - Thermal Magnetic	TMD
Tripping Unit	TMD
Voltage (V)	690 AC
Breaking Capacity (kA)	36
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	40
Degree of Protection	IP20
Dimensions (mm)	76.2W x 130H x 70D
EAN	8015644013066
No. of Poles	3
Poles	3P
Power Loss (W)	2.6
Rated Current (A)	40
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	800
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Standards and Approvals	IEC 60947-2
Trip Unit	TMD
Version	Fixed

Moulded Case Circuit Breakers

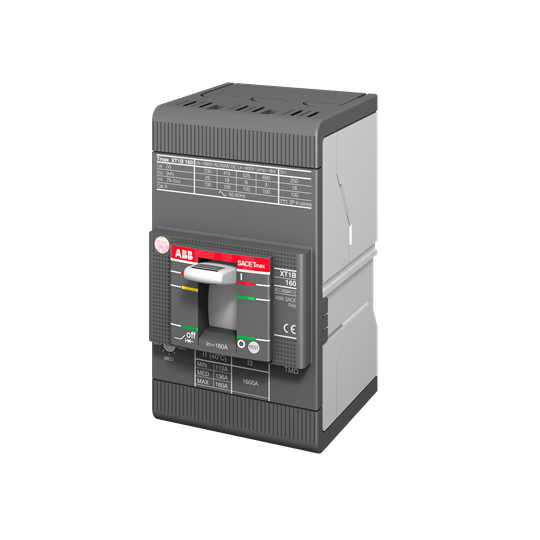

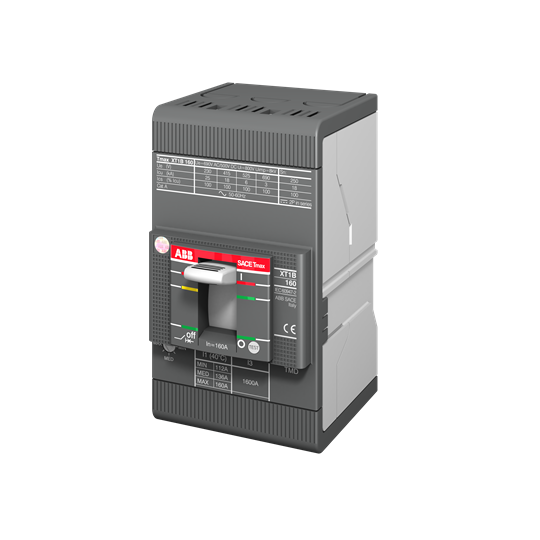

ABB XT1N 160 TMD 40-450 3P F F 1SDA067412R1
